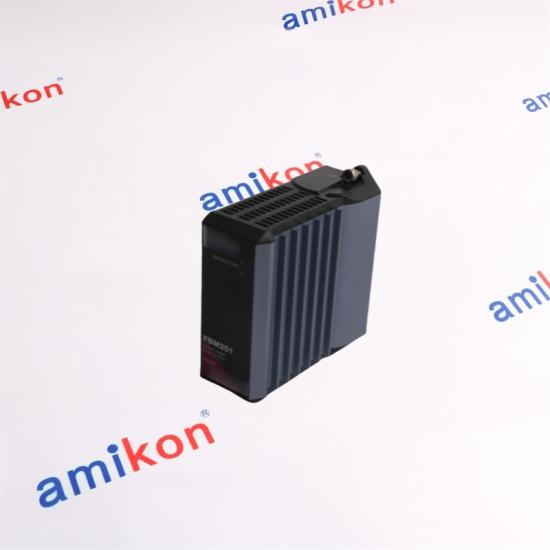

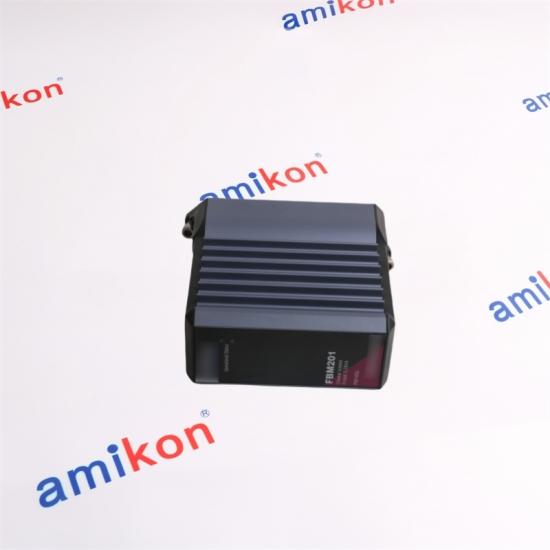

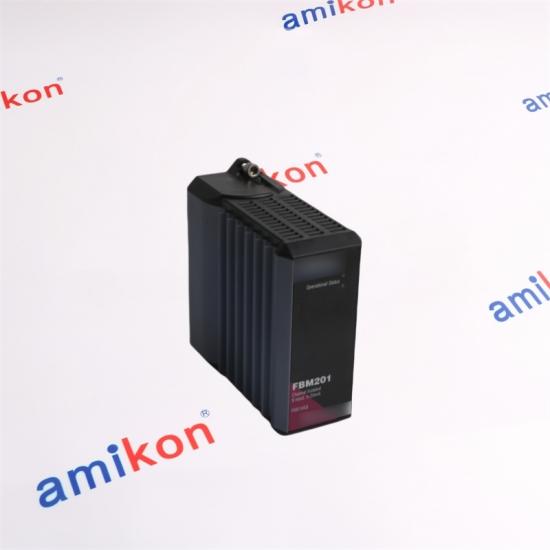

Foxboro FBM201 RH914SQ Isolated Analog Input Module

Our service

Professional contact channel

Overview

The Foxboro FBM201 RH914SQ (also associated with P0914SQ) is a channel-isolated analog input module by Schneider Electric. It features 8 independent, isolated input channels designed to process 0 to 20 mA signals from field sensors within industrial process control environments like the I/A Series DCS system.

Specifications

Ø Input Ranges: Accepts 0 to 20 mA DC signals (with compatibility for 0 to 100 mV, 0 to 5 V, or 0 to 10 V depending on configuration).

Ø Accuracy: ± 0.15% of span.

Ø Resolution: 12 bits.

Ø Update Rate: 250 ms.

Ø Power Consumption: 2.5 W.

Ø Operating Temperature: -40°C to 70°C (-40°F to 158°F).

FBM201 - Modular Baseplate Mounting

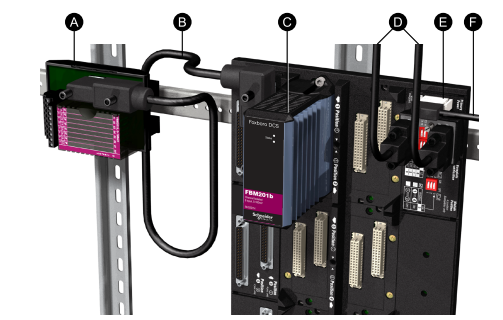

The modules mount on a modular baseplate (see Figure 1), which accommodates up to four or eight FBMs. The modular baseplate is either DIN rail mounted or rack mounted, and includes signal connectors for redundant fieldbus, redundant independent DC power, and termination cables.

FAQ

Q1: How does the Foxboro FBM201 RH914SQ optimize high-accuracy analog input acquisition for mission-critical process control applications?
A: The Foxboro FBM201 RH914SQ features eight isolated analog input channels that accurately acquire and convert field signals into digital data for seamless integration with Foxboro I/A Series and EcoStruxure™ Foxboro DCS platforms.

Q2: Why is the Foxboro FBM201 RH914SQ engineered with channel-to-channel galvanic isolation, and what operational advantages does it provide?
A: The Foxboro FBM201 RH914SQ incorporates channel isolation to minimize electrical interference, eliminate ground loop issues, and improve measurement reliability in electrically noisy industrial environments.

Q3: What types of field instrumentation can the Foxboro FBM201 RH914SQ interface with, and how does it enhance signal integrity?
A: The Foxboro FBM201 RH914SQ is designed to interface with standard 4–20 mA analog transmitters, delivering precise signal conditioning, high-resolution analog-to-digital conversion, and stable process data acquisition for critical control applications.

Q4: Which diagnostic and fault-detection capabilities distinguish the Foxboro FBM201 RH914SQ from conventional analog input modules?
A: The Foxboro FBM201 RH914SQ provides comprehensive self-diagnostics, continuous module health monitoring, and fault detection functions that enable predictive maintenance, reduce troubleshooting time, and maximize overall system availability.

Q5: How does the modular architecture of the Foxboro FBM201 RH914SQ simplify system scalability and long-term maintenance within distributed control systems?
A: The Foxboro FBM201 RH914SQ utilizes a compact modular design that supports hot replacement, straightforward installation, and seamless integration into distributed I/O architectures, making system expansion and lifecycle maintenance more efficient while minimizing process downtime.
