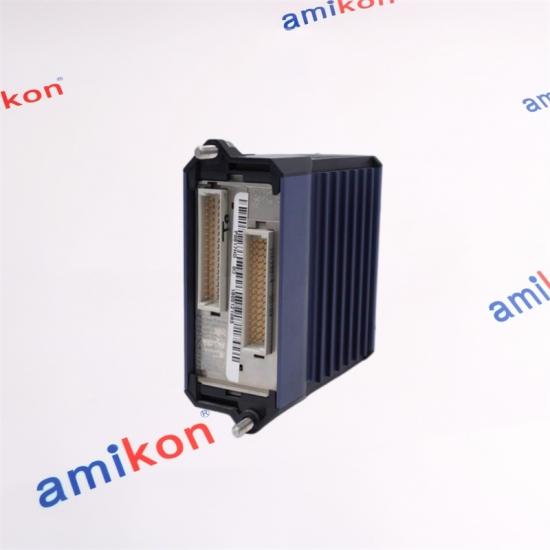

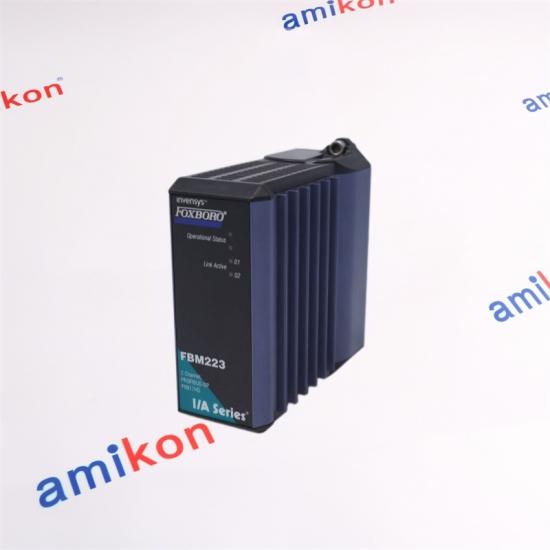

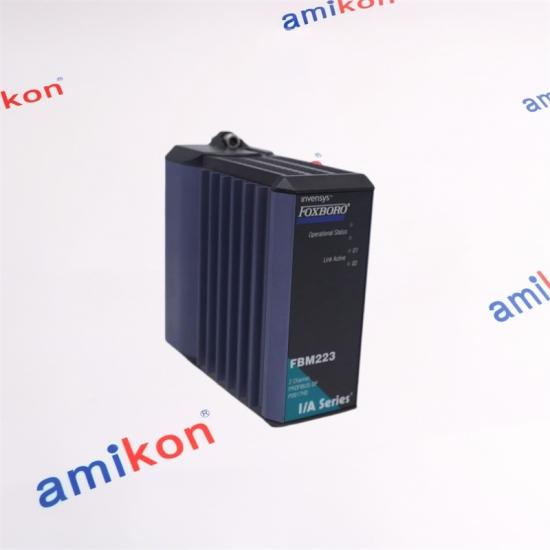

Foxboro FBM223 PROFIBUS-DP™ Communication Interface Module

Choose Amikon

We're faster.

No matter where parts are in the world, we will strive to find all kinds of spare parts for your equipment quickly and efficiently.

l International Delivery on the Day

l Quick Response Support

l Intercontinental Cooperation Network

Sales manager：Miya zheng；Email:sales@amikon.cn；WhatsApp:86-18020776792；WeChat:86-18020776792

FEATURES

Key features of the FBM223 module are:

l Conforms to PROFIBUS-DP Fieldbus specifications

l Provides full support for all device variables and diagnostic messages

l Integrates PROFIBUS slave device data into an I/A Series control database

l The FBM223 and its associated termination assembly (TA) are suitable for installation in Class 1, Division 2 and Zone 2 locations.

OVERVIEW

The PROFIBUS-DP Communication Interface Module (FBM223) provides an interface between PROFIBUS-DP slave devices — such as motor drives, I/O modules, and field I/O devices — and the I/A Series system. PROFIBUS is a vendor-independent, open fieldbus standard for a wide range of applications in process automation and manufacturing. Vendor independence and openness are guaranteed by the PROFIBUS Fieldbus standard EN 50170, which specifies the functional, electrical, and mechanical characteristics for a serial transmission bus.

Physical PROFIBUS-DP wiring is in accordance with Electronic Industrial Association (EIA) standard RS485.

In addition to the general PROFIBUS-DP configuration shown in Figure 1, several other configurations are possible, including those using repeaters and intrinsic safety protective devices. Figure 2 shows how a bus can be expanded into multiple segments through the use of repeaters, thus providing support for a greater number of slave devices.

FBM223 communicates with the PROFIBUS I/O devices on a master/slave basis. As master, the FBM223 initializes each data communication exchange. The slave devices can only acknowledge received messages, or send messages to the master when requested to do so.

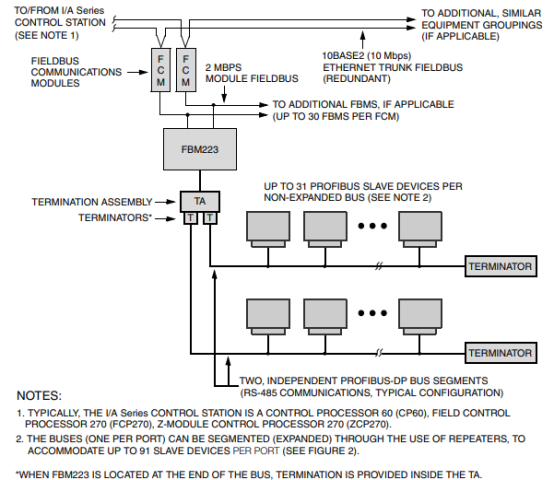

Figure 1. FBM223 used in a Typical Network Configuration

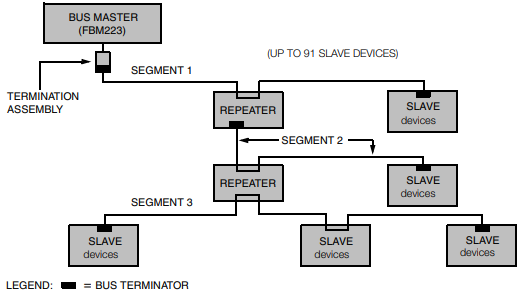

Figure 2. PROFIBUS-DP Network Expansion Using Repeaters

FAQ

Q1: How does the Foxboro FBM223 facilitate high-integrity PROFIBUS-DP communication within distributed process automation architectures?
A: The Foxboro FBM223 provides two galvanically isolated PROFIBUS-DP channels, enabling reliable, high-speed communication between the Foxboro control system and distributed field devices.

Q2: Why is the Foxboro FBM223 engineered with dual isolated communication channels, and what operational advantages do they provide?
A: The dual isolated channels of the Foxboro FBM223 enhance network reliability, minimize electrical interference, and support independent communication paths for improved system availability.

Q3: What communication capabilities distinguish the Foxboro FBM223 in complex industrial fieldbus networks?
A: The Foxboro FBM223 supports PROFIBUS-DP transmission rates from 9.6 kbit/s to 12 Mbit/s, allowing flexible integration with a wide range of intelligent field devices while maintaining efficient data exchange.

Q4: How does the Foxboro FBM223 ensure dependable operation in demanding industrial environments?
A: The Foxboro FBM223 features galvanic isolation, redundant 24 VDC power support, comprehensive LED diagnostics, and compliance with industrial EMC standards, ensuring robust and stable performance.

Q5: Which installation and scalability features make the Foxboro FBM223 suitable for expanding automation systems?
A: The Foxboro FBM223 supports DIN-rail or Modular Baseplate installation and accommodates multiple PROFIBUS-DP devices with configurable network topologies, making it well suited for scalable industrial automation applications.
