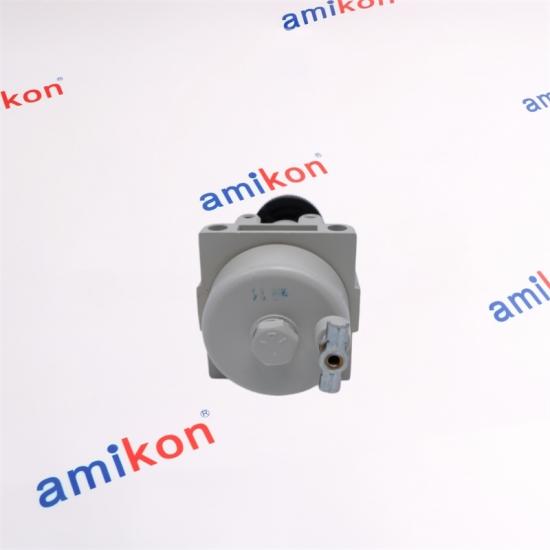

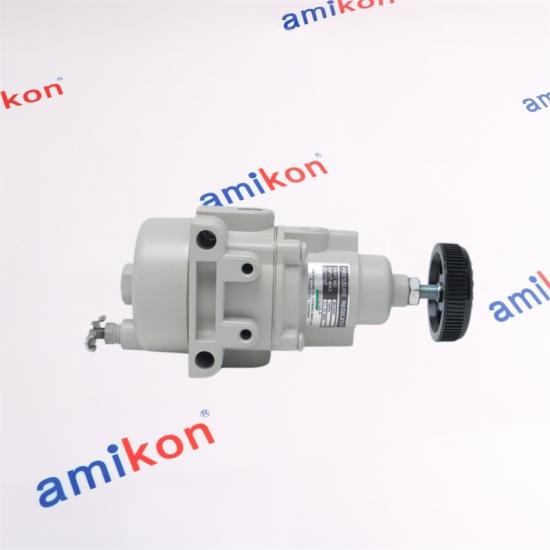

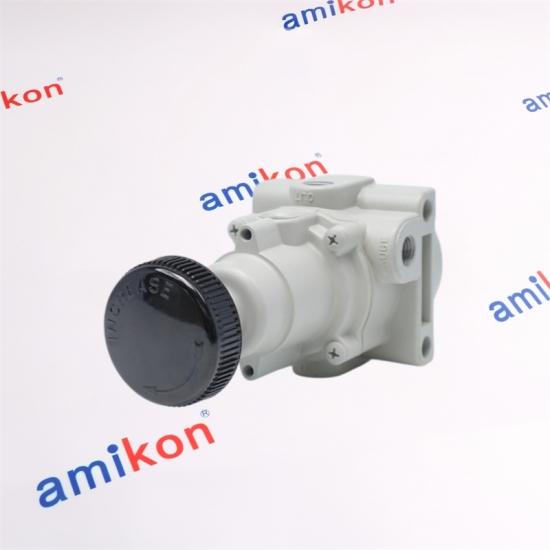

Foxboro B0123HE Pressure Regulators

Ø Choose Amikon

We're faster.

No matter where parts are in the world, we will strive to find all kinds of spare parts for your equipment quickly and efficiently.

l International Delivery on the Day

l Quick Response Support

l Intercontinental Cooperation Network

Sales manager：Miya zheng；Email:sales@amikon.cn；WhatsApp:86-18020776792；WeChat:86-18020776792

Ø Specifications

Ø Operation

To increase pressure, turn the regulator adjustment knob in a clockwise direction. To decrease pressure, turn the adjustment knob in a counterclockwise direction.

Principle of Operation

(Refer to Figure 1)

The range spring, which has been compressed by the adjustment knob and screw, causes the pintle valve to move downward, allowing air to flow. The pressure builds up against the diaphragm until the pintle valve throttles. This is the set pressure which is closely maintained in the following manner: A drop in the regulated line pressure will cause a decrease in the pressure against the bottom of the diaphragm. The range spring forces the diaphragm down against the reduced pressure causing the pintle valve to open, admitting more supply air, until the pressure below the diaphragm balances the spring force. Diaphragm upward motion causes the exhaust valve in the diaphragm to open. The excess pressure rises into the spring cavity through the exhaust valve and vents to atmosphere via the exhaust vent.

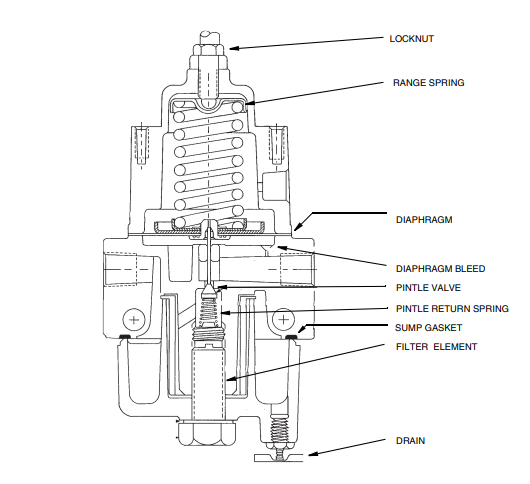

(Figure 1)

Please contact us for more related Information！！！

Sales manager：Miya zheng；Email:sales@amikon.cn；WhatsApp:86-18020776792；WeChat:86-18020776792

Ø FAQ

Q1: How does the Foxboro B0123HE optimize pneumatic pressure regulation in demanding industrial control applications?
A: The Foxboro B0123HE provides precise and stable output pressure while integrating air filtration, ensuring reliable performance for pneumatic instruments.

Q2: Why is the Foxboro B0123HE equipped with an integral filter, and how does it enhance system reliability?
A: The integral filter in the Foxboro B0123HE removes contaminants and moisture from the compressed air supply, protecting downstream instruments and reducing maintenance requirements.

Q3: What installation considerations should be evaluated when integrating the Foxboro B0123HE into a pneumatic instrumentation system?
A: The Foxboro B0123HE supports both panel and bracket mounting and should be installed with the drain positioned at the lowest point to ensure efficient condensate removal.

Q4: Which operating characteristics distinguish the Foxboro B0123HE for precision pneumatic pressure control?
A: The Foxboro B0123HE offers an adjustable output pressure range of approximately 0.5–60 psi, high flow capacity, and excellent pressure sensitivity for accurate and consistent regulation.

Q5: How can the serviceable design of the Foxboro B0123HE contribute to reduced lifecycle costs and long-term operational efficiency?
A: The Foxboro B0123HE incorporates replaceable components, including the diaphragm, filter element, pintle valve, and drain valve, enabling straightforward maintenance and extending operational service life.
