Four independent HART master channels bring field-instrument data into the ControlLogix 1756 platform.

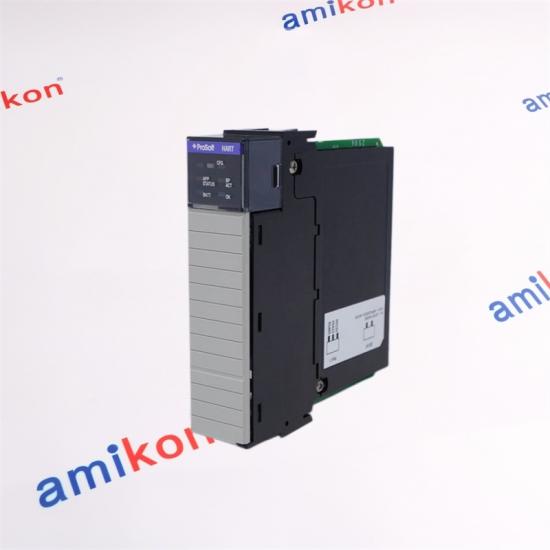

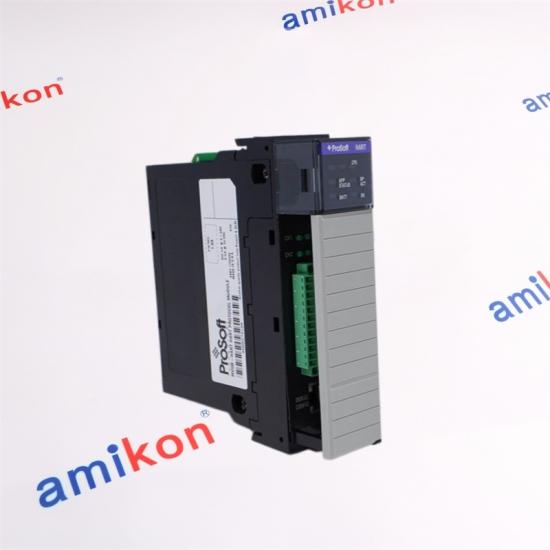

The MVI56-HART is a single-slot, 1756-backplane-compatible HART Multidrop Master Communication Module. It enables ControlLogix processors to communicate with HART pressure, temperature, flow and similar process instruments.
Four independently configurable master channels support up to 15 devices each. Data passes through the module database under ladder-logic control.
| Form factor | Single slot, 1756 backplane |
| Channels | 4 independent HART masters |
| Capacity | 15 devices per channel |
| Signal | Bell 202 FSK, 1200 baud |
| Current load | 800 mA @ 5 V |
| Operating | 0 to 60°C |
A four-channel HART multidrop master for ControlLogix 1756 systems.
Up to 15 devices on each of four channels.
Yes, address 0 point-to-point and addresses 1–15 multidrop.
Yes, through auto polling and Burst mode.
No. It requires external installation, Ethernet addressing, configuration mapping and controller-project changes.
General inventory references; not replacements for MVI56-HART.
