The LS-5 Series combines synchronization and protection in one compact controller. The devices are designed for complex power-management applications with multiple incoming mains and bus breakers.
In combination with easYgen-3400/3500 genset controllers, LS-5 units manage synchronization, loading and unloading on individual bus segments and transmit the required voltage and frequency references through CAN bus.

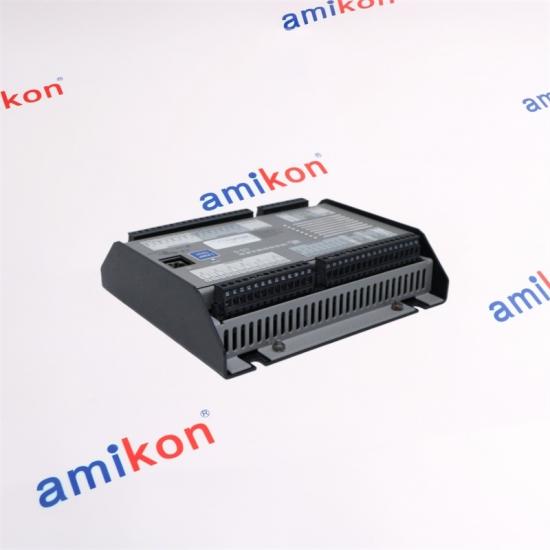

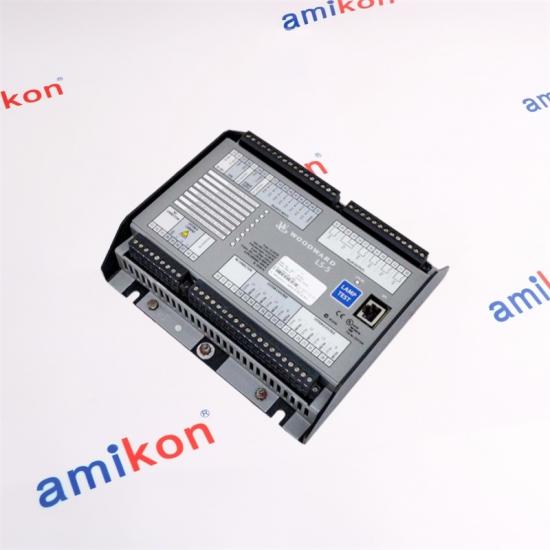

The LS-511 version uses a sheet-metal housing without display and is intended for cabinet back-panel mounting.
|
Synchronization
Phase matching or slip-frequency synchronization with voltage matching. |
Breaker Control
Breaker open/close monitoring, configurable dead-bus closure direction and synchronization timeout monitoring. |
|
Power Management
Segment control for load sharing, automatic and manual operating modes, and preconfigured application modes. |
Remote Control
Full remote-control capability through CAN or RS-485 interfaces. |
| 59 / 27 Over / Undervoltage |
81O / U Over / Underfrequency |
47 Voltage Asymmetry |
78 Phase Shift |
| 81 df/dt / ROCOF |
QV QV Monitoring |
TIME Time-Dependent Voltage |
GRID Mains Voltage Increase |
|
SYSTEM FEATURES
Network &
Event Functions |
|
| Power Supply | 12/24 Vdc (8 to 40 Vdc) |
| Intrinsic Consumption | max. approx. 5 W (LS-511) |
| Operating Temperature | -20 to +70 °C |
| Storage Temperature | -30 to +85 °C |
| Ambient Humidity | 95%, non-condensing |
| Current Input | 5 A rated |
| Discrete Inputs | 8 isolated inputs |
| Input Range | 12/24 Vdc (8 to 40 Vdc) |
| Relay Outputs | 6 potential-free outputs |
| CAN Interface | 1 |
| RS-485 Interface | 1 |
|
LS-511
Housing &
Dimensions |
|
| Model | 1 A Version | 5 A Version |
| LS-511 | 8440-1951 | 8440-1946 |
| LS-521 | 8440-1952 | 8440-1947 |
|
FAST RESPONSE
Contact
Information |
Need Woodward 8440-1946? Contact our sales team for availability and quotation.
|
