GE FANUC / VERSAMAX
IC200ALG326K
Analog Current Output Module
|
13-BIT CURRENT |
| International Delivery on the Day Quick Response Support Intercontinental Cooperation Network |
✉ Email: sales@amikon.cn ☏ Phone / WhatsApp: 86-18020776792 |

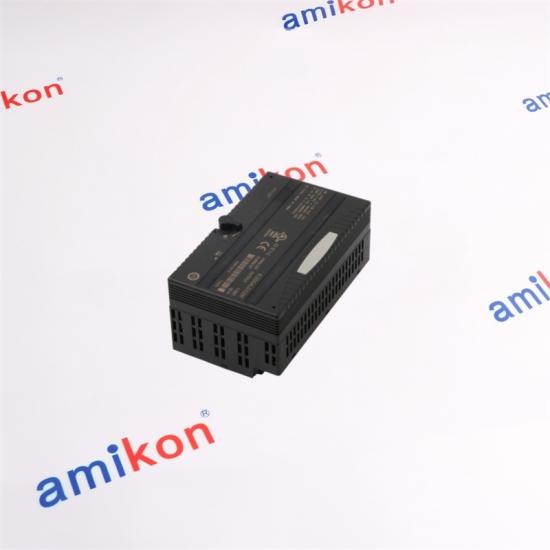

| GE IC200ALG326K is a VersaMax analog output module providing eight single-ended current-source channels in one group. Each channel can operate over 0 to 20 mA or 4 to 20 mA. Output range and the response to loss of backplane power or communications are selected through the module configuration and jumper arrangement. |
INSTALLED FAMILY
VersaMax I/O
8 AO / 0-20 OR 4-20 mA / 13 BIT
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Product type | Analog current output module |
| Output channels | 8 single-ended, one group |
| Resolution | 13-bit |
| Output ranges | 0 to 20 mA or 4 to 20 mA |
| External field power | 18 to 30 VDC including ripple |
| Module update rate | 15 ms |
| Backplane load | 50 mA at 5 VDC |
| Indicators | FLD PWR and OK |
| Loss behavior | Hold last state or use configured default |
| Revision suffix | K hardware revision |
|
SYSTEM POSITION
8 AO / 0-20 OR 4-20 mA / 13 BIT
|
The module converts controller %AQ commands into current signals for valve positioners, indicators and other analog final devices. The eight channels share one grouped arrangement. Field power must remain within the specified range, and the hold-last/default selection must match the process fail-state philosophy. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| IC200ALG326K | 8-channel current output | This model and revision |
| IC200ALG325 | 8-channel voltage output | Voltage rather than current |
| IC200ALG327 | 12-channel voltage output | Higher channel count, different signal |
| IC200ALG331 | Isolated voltage/current output | Different isolation and resolution |
| IC200ALG230 | Analog input module | Input rather than output |
| 01 | Match the complete IC200ALG326K code, carrier and connector arrangement. |
| 02 | Record the range and hold-last/default selection before removing the installed module. |
| 03 | Remove field power before disconnecting loops; observe current-loop polarity and the common group arrangement. |
| 04 | Confirm the external 18 to 30 VDC supply can support all connected output loads. |
| 05 | Commission each channel with a controlled command and verify 0/4 mA, 20 mA and the intended fault-state response. |
|
