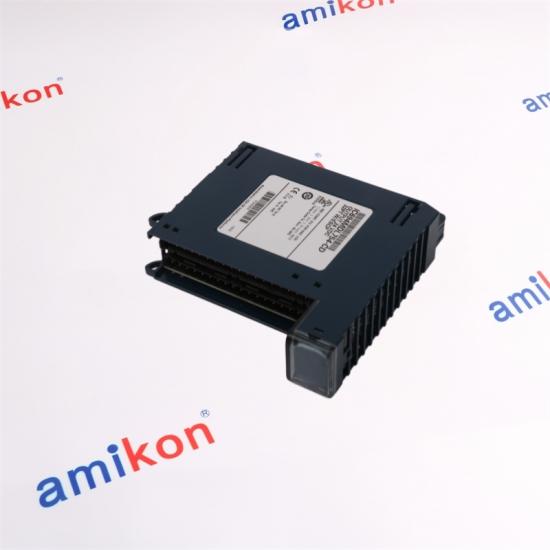

IC694MDL758
Protected 32-Point Output Control for PACSystems RX3i
|
|||
|
|||
|
| The GE IC694MDL758 is a PACSystems RX3i discrete output module that provides 32 positive-logic sourcing outputs. Its outputs are divided into two isolated groups of 16. Each group has its own field-power common and self-recovering electronic short-circuit protection, allowing the controller to report overload and field-power-loss conditions. |
ORDERING IDENTITY
IC694MDL758
Family: PACSystems RX3i
Role: Discrete output Logic: Positive / sourcing Channels: 32 |
| ◆ Output control Thirty-two commanded output bits switch DC loads through two banks of sixteen sourcing channels. |
✦ Group protection An overload trips the affected group electronically. Protection is self-recovering after the fault is cleared. |
◇ Status reporting Sixteen status bits report protection and field-power conditions to the RX3i CPU for diagnostics. |
| RX3i CPU | → | RX3i Backplane | → | IC694MDL758 | → | Two 16-Point DC Load Groups |
| Sales manager: Miya Zheng | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| MODEL / ITEM | ROLE | SELECTION POINT |
| IC694MDL758 - THIS MODEL | 32 outputs, 0.5 A | Two groups with ESCP per group and fault reporting |
| IC694MDL754 | 32 outputs, 0.75 A | Use when per-point electronic protection is required |
| IC694MDL753 | 32 outputs, 0.5 A | Confirm diagnostic and protection behavior before substitution |
| IC694TBB032 / IC694TBS032 | 32-point removable terminal blocks | Box-clamp or spring-clamp connection; ordered separately |
| RX3i CPU | Controller platform | Required; Series 90-30 CPU operation is not supported |
| ◆ Before installation Confirm an RX3i CPU, compatible firmware, the correct 36-terminal block, field-voltage range and total group current. De-energize field wiring and observe ESD precautions. |
◇ Wiring and commissioning Keep each group's DC+ and DC- paired with its own loads. Verify polarity, load current and isolation. Check OK, S1 and S2 indicators, then test each output under controlled conditions. |
| ✦ Replacement Match the complete catalog number and terminal assignment. A look-alike output module can differ in current capacity, protection level and diagnostics. Preserve the program's output mapping. |
✧ Return support Contact us within 7 days if an issue appears after delivery. Keep the item in original condition and provide the return reason. Refund or replacement is arranged after inspection; return freight is paid by the buyer. |
| Q1 | Can IC694MDL758 operate with a Series 90-30 CPU? No. It is intended for a PACSystems RX3i system and requires an RX3i CPU. A similar chassis outline does not establish controller compatibility. |
| Q2 | Does IC694MDL758 include its terminal block? No. Select IC694TBB032 for box terminals or IC694TBS032 for spring terminals and verify that the installed block is serviceable. |
| Q3 | Can the two IC694MDL758 groups use different DC voltages? Yes. Each isolated group has separate field-power connections and may use a different voltage within 10.2 to 28.8 VDC. |
| Q4 | What happens when IC694MDL758 detects an output short? The electronic protection removes power from the affected 16-point group and reports the condition. After the short is cleared, protection can recover without replacing a fuse. |
| Q5 | What should be checked before replacing IC694MDL758? Confirm CPU platform, firmware, terminal style, output map, group voltage, load current, protection behavior and the complete catalog number before removal. |
