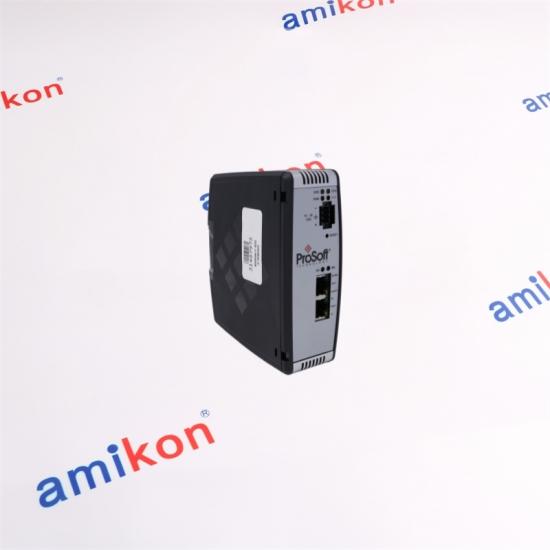

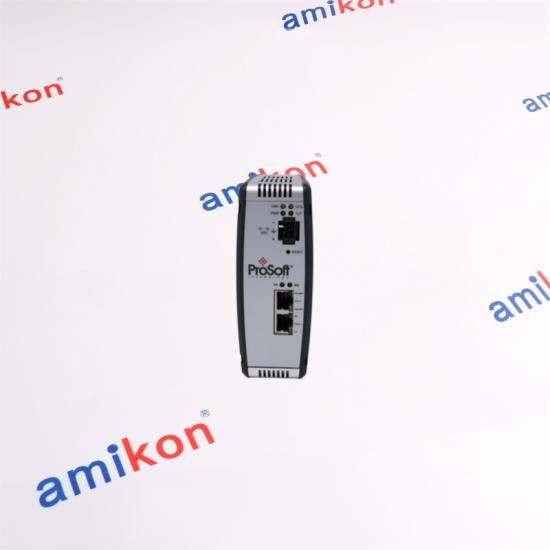

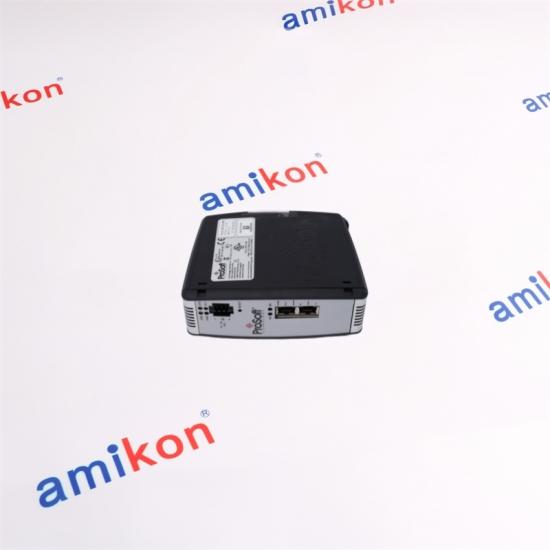

PROSOFT PLX31-MBTCP-SIE communication gateway

ProSoft PLX31-MBTCP-SIE
ProSoft PLX31-MBTCP-SIE
ProSoft PLX31-MBTCP-SIE

PROSOFT PLX31-MBTCP-SIE communication gateway

Calculate shipping
Quotation Request
PROSOFT TECHNOLOGY
INDUSTRIAL COMMUNICATION
PLX31-MBTCP-SIE

Modbus TCP/IP to Siemens Industrial Communication Gateway
◆   MODBUS TCP/IP
◆   SIEMENS S7 PLC
◆   INDUSTRIAL GATEWAY
KEY TECHNICAL POINTS
01 / POWER
24 VDC
Nominal supply
02 / MODBUS
10
Supported clients
03 / SIEMENS
S7 Series
200 / 300 / 400 / 1200 / 1500
✦ DELIVERY International Delivery on the Day
✦ SUPPORT Quick Response Support
✦ NETWORK Intercontinental Cooperation Network
CONTACT AMIKON LIMITED
✉ EMAIL SALES ☏ PHONE / WHATSAPP
Sales manager: Miya zheng   |   sales@amikon.cn   |   86-18020776792





⇄ PROTOCOL BRIDGE ⇄

PLX31-MBTCP-SIE

Modbus TCP/IP to Siemens Industrial Ethernet gateway
PRODUCT POSITION

The PLX31-MBTCP-SIE exchanges data between Modbus TCP/IP devices and Siemens controllers over Industrial Ethernet. It is suited to projects that must connect S7-200, S7-300, S7-400, S7-1200 or S7-1500 systems with Modbus TCP controllers, HMIs, meters, analyzers and other Ethernet devices without rewriting both sides around a common protocol.


EXACT-MATCH QUOTATION

Send the full part number, quantity, condition requirement and destination.

Email Miya ZhengWhatsApp +86 180 2077 6792
OPERATING PROFILE

Key Technical Characteristics

Power 24 VDC nominal; 10–36 VDC allowed
Ethernet 10/100 Mbit RJ45
Data capacity Up to 4000 16-bit registers
Modbus clients Up to 10
Siemens clients Up to 20
Temperature −25 to 70 °C operating
BEFORE ORDERING

Choose PLX31-MBTCP-SIE when one side is Modbus TCP/IP and the other uses Siemens Industrial Ethernet data exchange. Define client/server roles, S7 data areas, register mapping, scan priorities, byte order, connection count and update-rate expectations before commissioning.

SERIES / SYSTEM RELATIONSHIP

Choose by Installed Role, Not Appearance

IDENTITY RELATIONSHIP SELECTION POINT
PLX31-MBTCP-SIE Modbus TCP ↔ Siemens Ethernet ◆ THIS MODEL
PLX31-EIP-MBTCP EtherNet/IP ↔ Modbus TCP Different controller protocol
PLX31-MBTCP-MBS Modbus TCP ↔ Modbus serial Adds serial-side role
PLX32 variants Two independent Ethernet networks Use where segmentation is required
◆
Protocol conversion avoids PLC-side custom messaging in many projects.
◇
Configurable command priorities help control scan behavior.
◈
Per-command status assists commissioning and fault isolation.
◉
Optional SD storage supports faster configuration recovery.

20 Years of Industrial Automation Supply
GLOBAL RESPONSE
Fast coordination for planned maintenance and urgent recovery.
QUALITY CHECK
Part-number, condition and outward checks support reliable delivery.
STOCK & DELIVERY
Experienced sourcing for current and discontinued automation parts.
CONTACT

Keep Your Maintenance Window Moving

Sales manager: Miya Zheng · Email: sales@amikon.cn · Phone/WhatsApp: +86 180 2077 6792

Email Miya ZhengWhatsApp +86 180 2077 6792
Contact us within seven days if a concern appears after receipt. Keep returned items in original condition and state the reason for review. Return-related shipping costs are the buyer’s responsibility.
PURCHASING FAQ

Checks That Protect the Installation

PLX31-MBTCP-SIE: Will PLX31-MBTCP-SIE communicate with an S7-1500?
Yes. The gateway supports S7-1500 along with S7-1200, S7-400, S7-300 and S7-200 families; PLC access settings must permit the required data exchange.
PLX31-MBTCP-SIE: How much data can PLX31-MBTCP-SIE exchange?
The gateway provides up to 4000 16-bit registers. Map only the required data and plan update rates around command count and network loading.
PLX31-MBTCP-SIE: What should be confirmed before buying PLX31-MBTCP-SIE?
Confirm both protocols, client/server roles, Siemens data areas, connection count, firmware needs, power supply and environmental rating.
PLX31-MBTCP-SIE: Can PLX31-MBTCP-SIE replace PLX31-EIP-MBTCP?
No. Their non-Modbus sides use different protocols. Select the exact gateway according to the Siemens or EtherNet/IP controller interface.
PLX31-MBTCP-SIE: How should PLX31-MBTCP-SIE be tested after setup?
Verify each command status, address mapping, byte and word order, timeout recovery, data freshness and behavior after either network is disconnected and restored.
