BENTLY NEVADA / 3500 SYSTEM
129525
-0050-02

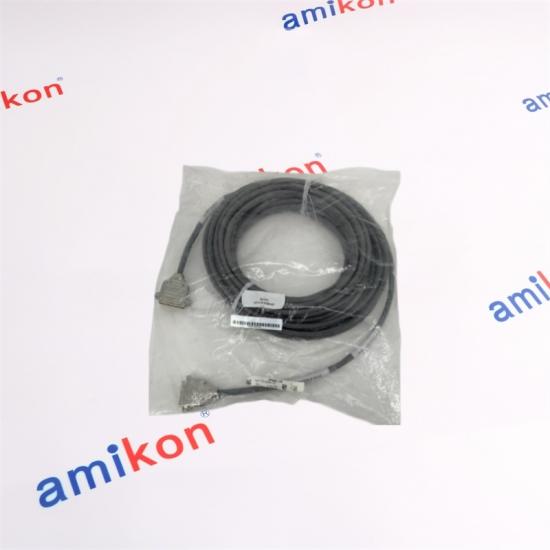

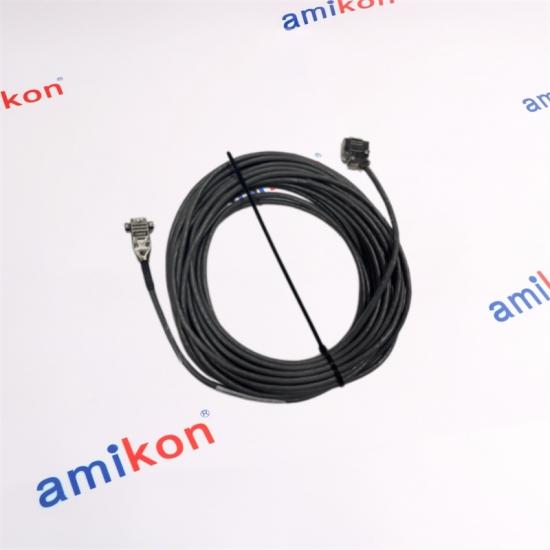

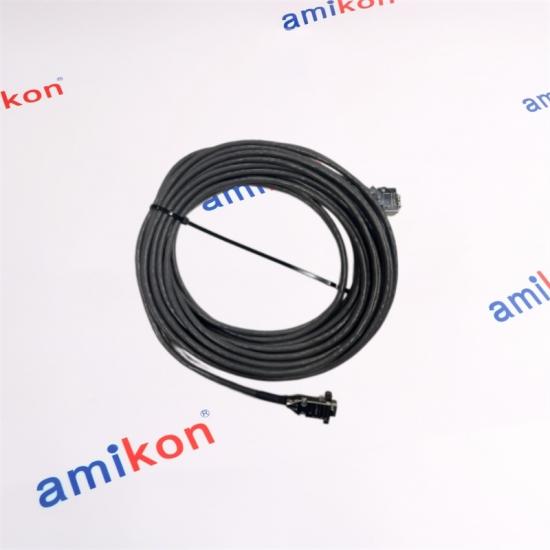

The Bently Nevada 129525-0050-02 is a 3500 system transducer signal cable designed for connection between a transducer signal and an external termination block. This configuration specifies a 50-foot cable length and an assembled termination arrangement.
|
PRODUCT CONFIGURATION
129525-0050-02
Transducer signal to external termination block cable
|
|
01 / PRODUCT
Product Details
|
The 129525-0050-02 is part of the Bently Nevada 3500 family of transducer signal cables. It is used where the transducer signal is routed to an external termination block associated with a 3500 monitoring system configuration. The 0050 configuration provides a 50-foot (15.2 m) cable length, while the 02 suffix specifies the assembled version. This makes the part particularly relevant when a 3500 rack installation uses external termination rather than an internal termination arrangement. Correct cable length, termination arrangement and compatibility with the associated I/O configuration should be checked before replacement. |
|
FUNCTION
XDCR Signal Connection
|
TERMINATION
External Termination
|
LENGTH
50 ft / 15.2 m
|
CONFIGURATION
Assembled
|
|
CONFIGURATION LOGIC
How 129525-0050-02 is configured
The 129525 family uses a structured part-number format in which the cable length is represented by the middle numeric section and the final two digits define the assembly arrangement.
|
WHY THIS CONFIGURATION MATTERS
A 50-foot assembled cable is suited to installations where the physical distance between the transducer-side connection and the external termination location requires the longer standard cable option. For replacement purchasing, matching the exact length and assembly suffix helps avoid installing an incorrectly configured cable. |
|
3500 FAMILY
Related Cable Options
|
The 129525 cable family is available in several standard lengths. The same family uses the final two digits to distinguish assembly status.
|
|
Longer routing distance
The 50-foot configuration is appropriate when the required cable route exceeds the shorter standard cable options within the 129525 family. |
External termination architecture
This cable family is intended for transducer signal connections to external termination blocks used with compatible 3500 system configurations. |
Replacement matching
When replacing an installed cable, verify the part-number suffixes rather than selecting by length alone, because the final code specifies the assembly arrangement. |
|
PURCHASING SUPPORT
Need 129525-0050-02?
Send the exact part number together with your required quantity and destination. Our team can then confirm the purchasing arrangement and delivery schedule. |
|
|
QUOTE REQUEST
Please provide Part Number, Quantity, Destination, Required Date, Machine/System when requesting a quotation.
|
SEND INQUIRY |
|
DELIVERY
3-5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
SHIPPING
FedEx / DHL / UPS
|
| 01 |
What should buyers verify before replacing Bently Nevada 129525-0050-02 in an existing 3500 installation?
The critical checks are the complete part number, the external termination arrangement, the required cable length and whether the replacement must be supplied assembled. For this part, 0050 corresponds to 50 ft (15.2 m) and 02 corresponds to the assembled configuration. |
| 02 |
Why would a customer choose 129525-0050-02 instead of a shorter 129525 cable?
The 129525-0050-02 provides the 50-foot cable length, making it relevant when the installation route requires more length than the 5, 7, 10 or 25-foot versions. Selecting the correct length avoids an unsuitable cable run or an unnecessary extension arrangement. |
| 03 |
How does the 02 suffix on 129525-0050-02 affect a replacement purchase?
The final 02 designation specifies the assembled version. This matters when the existing installation requires the assembled configuration rather than the corresponding non-assembled version. |
| 04 |
When is 129525-0050-02 a better replacement choice than changing the termination architecture?
When the existing 3500 configuration already uses an external termination block and requires a 50-foot transducer signal route, retaining the corresponding 129525 configuration can minimize unnecessary changes to the established signal path. |
| 05 |
What makes 129525-0050-02 important when sourcing a hard-to-find 3500 spare?
The complete designation captures both the cable family and the two configuration variables that matter during replacement: 50-foot length and assembled construction. Providing the complete part number reduces the risk of receiving a visually similar but differently configured cable. |
|
