FIBER / CONTROL
FIO BOARD
|
POWERFLEX 7000 B-FRAME
80190-099-01/7
Signal Distribution at the Heart of the Drive
|
|

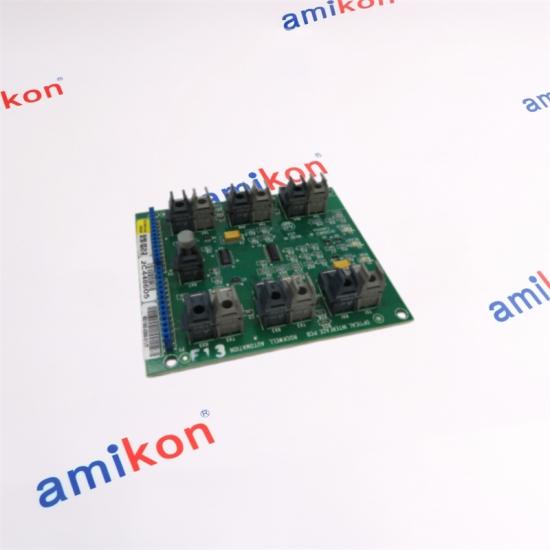

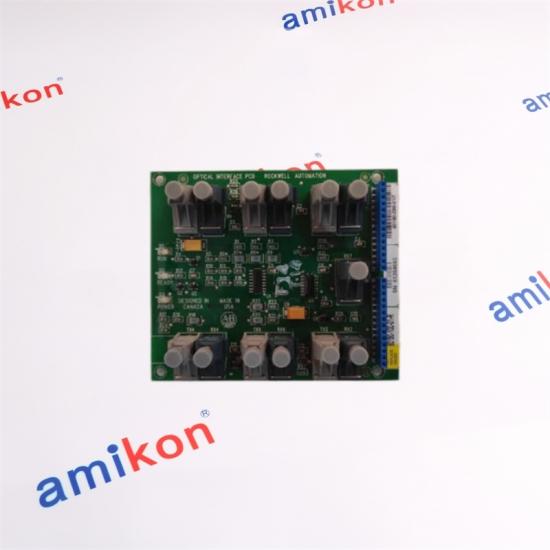

| The Allen-Bradley 80190-099-01/7 is an FIO circuit-board execution used in PowerFlex 7000 B-frame drive architecture. The FIO assembly participates in the drive’s internal control and fiber-optic signal path. The complete suffix and board revision matter because connectors, hardware execution and installed drive release must remain compatible. |
INSTALLED FAMILY
PowerFlex 7000 B-Frame Drive
FIBER INTERFACE / FIO
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Board designation | FIO |
| Installed family | PowerFlex 7000 B-frame |
| Signal role | Internal fiber-optic/control interface |
| Assembly type | Drive printed circuit board |
| Selection key | Complete 80190-099-01/7 code |
| Software loading | Not a field-programmed control CPU |
|
SYSTEM POSITION
FIBER INTERFACE / FIO
|
The FIO board links control-side commands and status paths with drive-side assemblies through the internal interface architecture. It is installed as part of a coordinated board set; it should be treated as a functional drive component rather than a generic communications card. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| 80190-099-01/7 | FIO | This board execution |
| 80190-239 series | DCB | Drive control board family |
| 80190-279 series | SCB | Signal conditioning board family |
| 80190-299 series | XIO | External input/output board |
| 80190-639 series | TFB | Terminal/fiber board family |
| 01 | Record the full board number, revision marks, connector locations and installed slot before removal. |
| 02 | Remove control power and follow the drive discharge interval before touching internal assemblies. |
| 03 | Use grounded ESD protection; never pull the board by components, fiber connectors or ribbon cables. |
| 04 | Transfer only approved jumpers or detachable hardware and keep fiber routing free of sharp bends. |
| 05 | After replacement, confirm connector seating, fiber cleanliness, board indications and the absence of drive diagnostics. |
|
