BULLETIN 160 · SMART SPEED CONTROL
160-BA02NSF1
Compact Motor Speed Control, Precisely Matched
|
|

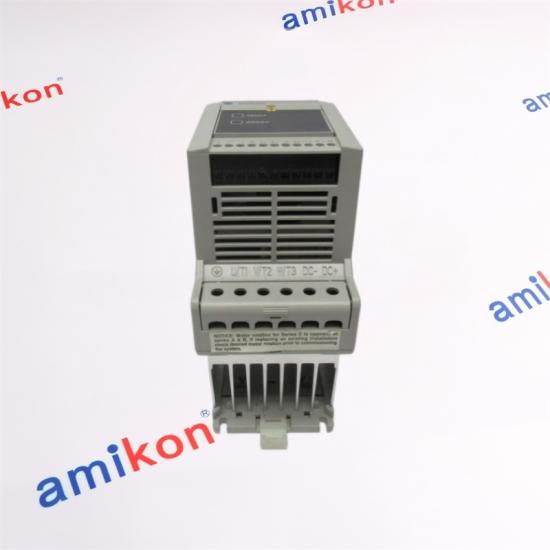

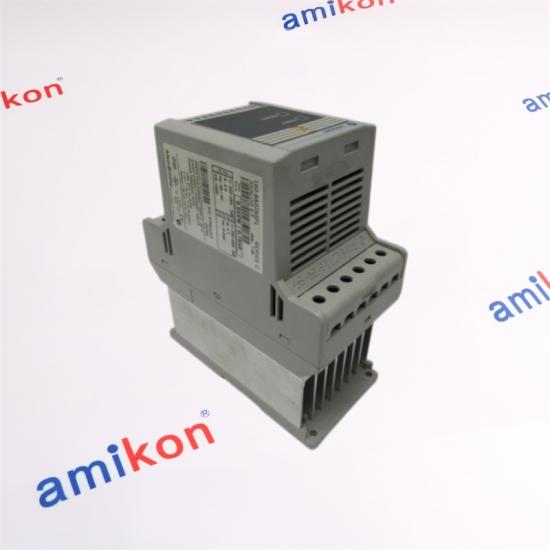

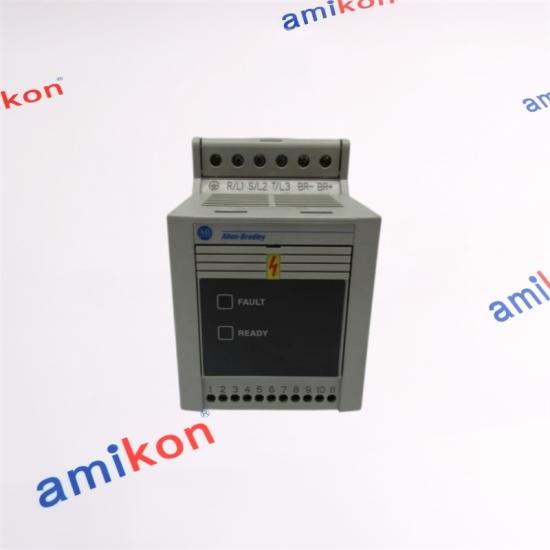

| The Allen-Bradley 160-BA02NSF1 is a Bulletin 160 Smart Speed Controller for three-phase induction motors. The BA02 rating is designed for a 380–460 V three-phase supply and a 0.55 kW (0.75 hp) motor, with 1.7 A maximum output. Its catalog suffix must be retained when replacing the unit because enclosure, operator and factory-option details affect fit and operation. |
INSTALLED FAMILY
Bulletin 160 Series C
0.55 kW / 380–460 V
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Motor rating | 0.55 kW / 0.75 hp |
| Maximum output | 1.7 A |
| Input | 380–460 V AC, 3-phase, 50/60 Hz |
| Operating range | 340–506 V AC |
| Dimensions | 152 × 80 × 165 mm |
| Approx. mass | 0.94 kg |
|
SYSTEM POSITION
0.55 kW / 380–460 V
|
The drive converts fixed-frequency three-phase power into adjustable-frequency output for basic speed and acceleration control. It belongs to the compact Bulletin 160 SSC platform and is suited to legacy machine sections where panel space, existing wiring and parameter behavior must be preserved. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| 160-BA01 | 0.37 kW / 0.5 hp | Lower output step |
| 160-BA02 | 0.55 kW / 0.75 hp | This electrical rating |
| 160-BA03 | 0.75 kW / 1 hp | Next output step |
| 160-BA04 | 1.5 kW / 2 hp | Higher current rating |
| PowerFlex 4/4M/40 | Migration family | Requires engineering review |
| 01 | Mount vertically with the specified clearances so natural convection can move through the heat path. |
| 02 | Confirm a 380–460 V three-phase supply and verify motor nameplate current before connecting power. |
| 03 | Keep control wiring separated from motor and line conductors; bond the protective earth directly. |
| 04 | Copy parameter values and terminal assignments before removing an operating legacy unit. |
| 05 | A migration drive is not a drop-in replacement; check dimensions, terminals, programming and motor behavior. |
|
