BULLETIN 1305
|
FRAME A · LEGACY AC DRIVE
1305-AA02A
Legacy Drive Control with a Clear Replacement Path
|
0.37 kW
200–240 V AC
2.3 A MAX OUTPUT
|

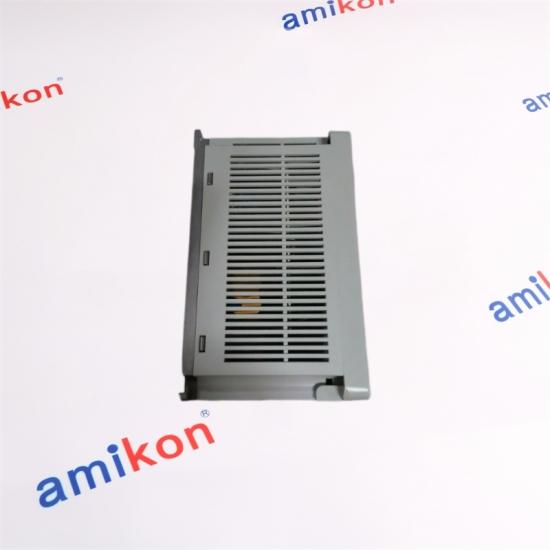

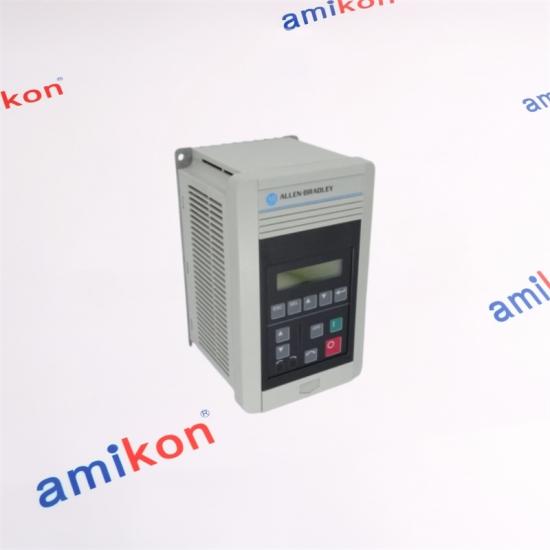

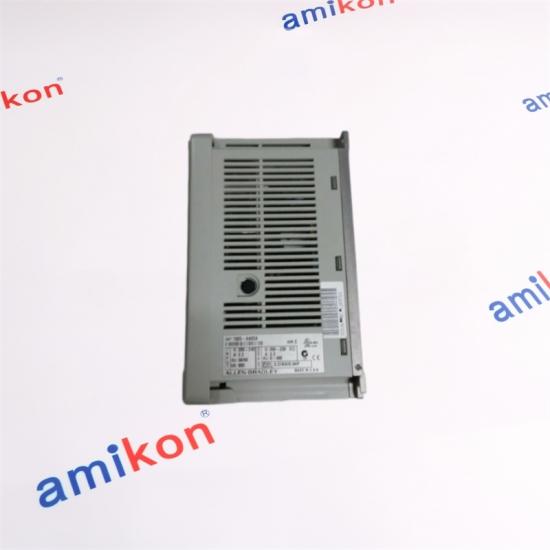

| The Allen-Bradley 1305-AA02A is a Frame A adjustable-frequency AC drive for a 200–240 V three-phase supply. It is rated for a 0.37 kW (0.5 hp) motor and 2.3 A maximum output. The unit provides variable-frequency motor control in established machines where existing wiring, parameter values and physical layout must be checked before replacement. |
INSTALLED FAMILY
Bulletin 1305
0.37 kW / 200–240 V
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Motor rating | 0.37 kW / 0.5 hp |
| Maximum output | 2.3 A |
| Input class | 200–240 V AC, 3-phase |
| Output | Adjustable frequency, 3-phase |
| Mechanical class | Frame A |
| Control family | Bulletin 1305 |
|
SYSTEM POSITION
0.37 kW / 200–240 V
|
The 1305 sits between the branch supply and a three-phase induction motor, controlling motor speed through adjustable output voltage and frequency. Its role includes acceleration, deceleration, speed-command handling and protective drive functions configured for the installed machine. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| 1305-AA02A | 0.37 kW / 0.5 hp | This model |
| 1305-AA03A | 0.55 kW / 0.75 hp | Next rating |
| 1305-AA04A | 0.75 kW / 1 hp | Higher Frame A rating |
| 1305-AA08A | 1.5 kW / 2 hp | Larger current step |
| PowerFlex 40 | Migration family | Wiring and parameter review required |
| 01 | Verify the 200–240 V three-phase supply, motor full-load current and grounding arrangement. |
| 02 | Mount upright and preserve airflow; do not place heat-producing equipment directly below the drive. |
| 03 | Route control conductors separately from line and motor wiring, with shield bonding appropriate to the installation. |
| 04 | Record terminal assignments, option hardware and all application parameters before removal. |
| 05 | When an RFI filter is used, the supply must be suitable; a grounded-delta arrangement is not compatible with that filter configuration. |
|
