Allen-Bradley 2711P-T15C22D9P 5-inch PanelView Plus 7 Performance Graphic Terminal
| ALLEN-BRADLEY · 2711P-T15C22D9P | PRODUCTSYSTEM FITSUPPLYFAQMODELS |

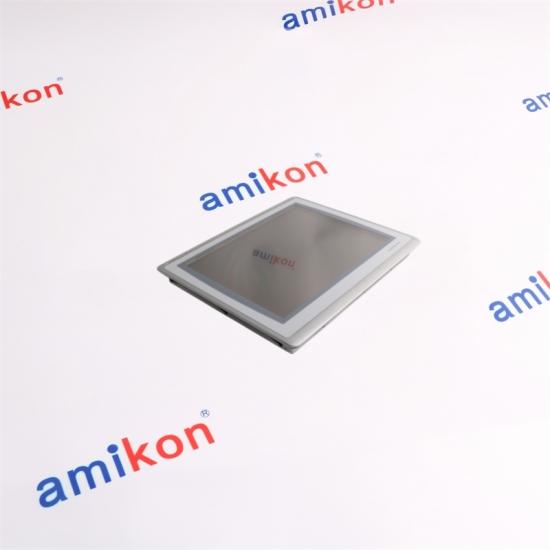

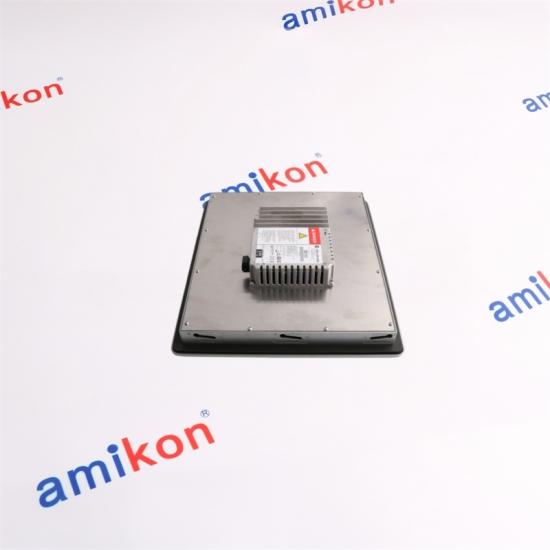

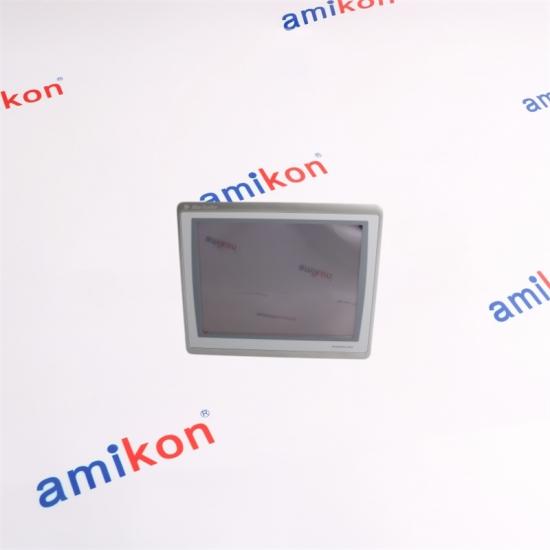

The 2711P-T15C22D9P is a 15-inch PanelView Plus 7 Performance operator terminal with color TFT display, touch input and 24 V DC power. It provides a plant-floor interface for FactoryTalk View Machine Edition applications and EtherNet/IP-connected control systems.
| 15 in. TFT color touch display |
1024 × 768 XGA resolution |
24 V DC Nominal power class |
| Product identity | PanelView Plus 7 Performance operator terminal |
| Operator input | Analog-resistive touch screen |
| Display | 15-inch color TFT; 304 × 228 mm viewing area |
| Resolution | 1024 × 768 pixels, 18-bit color |
| Power version | DC-powered terminal |
| Communication | Two Ethernet ports for plant network connection |
| Application environment | FactoryTalk View Machine Edition runtime |
| Storage and transfer | Removable media interfaces support application handling |
| Installation | Panel-mounted terminal; maintain sealing and clearance requirements |
| Replacement control | Match the full catalog number, terminal generation, power type and network arrangement |
| Confirm the terminal series, power and application revision before ordering. | ASK MIYA TO CHECK |
| 2711P-T15C22D9P | 15-inch touch, DC power | Selected terminal |
| 15-inch keypad/touch variants | Touch plus physical keypad | Different operator interface |
| 19-inch touch variants | Larger display area | Different cutout and enclosure |
| AC-powered variants | AC input power | Not a direct power substitute |
Physical similarity alone does not establish interchangeability. Confirm the complete catalog number, installed system and electrical or mechanical configuration together.
| EMAIL · SALES@AMIKON.CN | WHATSAPP · 86-18020776792 | SALES MANAGER · MIYA ZHENG |
| Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the reason. Resolution follows receipt and inspection. | Return-related shipping charges are paid by the buyer. |
| 01 |
2711P-T15C22D9P — Does 2711P-T15C22D9P require the same panel cutout as every 15-inch PanelView?
No. Verify the exact terminal family, cutout dimensions, mounting hardware and enclosure seal before planning a drop-in replacement.
|
| 02 |
2711P-T15C22D9P — Can an application be moved directly to 2711P-T15C22D9P?
Confirm the FactoryTalk View ME version, terminal firmware, communication shortcuts, fonts, recipes and any ActiveX dependencies before transfer.
|
| 03 |
2711P-T15C22D9P — What should be checked when buying a replacement 2711P-T15C22D9P?
Compare the complete catalog number, series marking, power input, Ethernet arrangement, display condition, touch calibration and included mounting hardware.
|
| 04 |
2711P-T15C22D9P — Can 2711P-T15C22D9P operate on an isolated machine network?
Yes, when the control architecture and addressing are configured for that network. Confirm controller compatibility and managed-switch requirements.
|
| 05 |
2711P-T15C22D9P — What commissioning checks matter after installing 2711P-T15C22D9P?
Verify display visibility, touch accuracy, controller communication, alarm acknowledgement, user security, recipes and every critical navigation path before production.
|
