| ALLEN-BRADLEY | PRODUCTSYSTEM FITSUPPLYFAQMODELS |
|
THERMAL INPUT
HEATSINK SENSING |

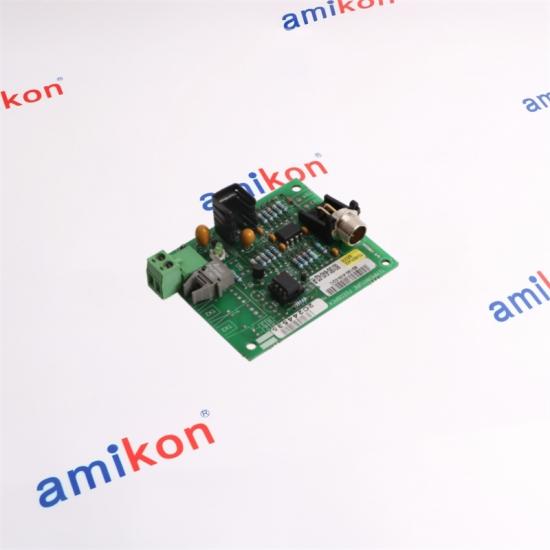

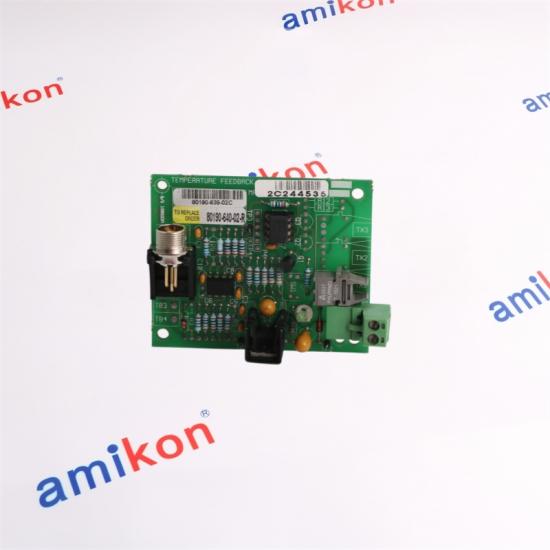

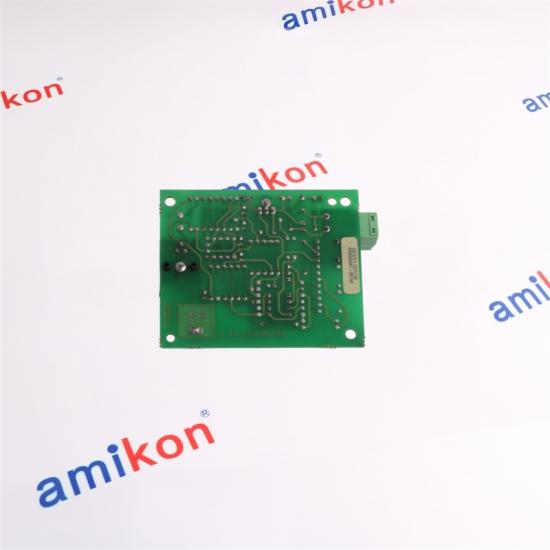

A conformal-coated temperature-feedback assembly used in the PowerFlex 7000 thermal-monitoring path. It supports converter temperature supervision and must be matched with the installed sensors, connectors and drive configuration. |
DIRECT SUCCESSOR
80190-540-02-R |
| COATED Packaged customer assembly |
THERMAL Converter feedback path |
LEGACY Discontinued January 31, 2017 |
VERIFY Sensor and drive configuration |
|
BOARD TYPE
Packaged customer TFB assembly
|
PROTECTION
Conformal-coated construction
|
SYSTEM
PowerFlex 7000 medium-voltage drive
|
|
FUNCTION
Converter thermal feedback path
|
LIFECYCLE
Discontinued January 31, 2017
|
DIRECT SUCCESSOR
80190-540-02-R
|
| Thermal path | Heatsink temperature sensors connect into the temperature-feedback arrangement so the drive can supervise converter thermal conditions. |
| Drive response | Thermal measurements support alarm and trip protection. Setpoints and behavior remain functions of the complete drive configuration. |
| Signal transfer | PowerFlex 7000 arrangements route temperature feedback through the drive control architecture; optical and plug connections must remain clean, correctly seated and undamaged. |
| Replacement control | The direct successor is 80190-540-02-R. Even with that status, verify drive bulletin, board coating, connectors, firmware context and installed sensor arrangement before changeover. |
| Request Availability & Configuration Check
Send the complete catalog marking, drive identity and clear board photos for a precise match.
|
EMAIL MIYAWHATSAPP |
|
BEFORE INSTALLATION
Configuration Must Travel With the Board
Preserve terminal identity, connector orientation, cable routing and installed-board position. Confirm the complete catalog marking and hardware revision before energization. |
◇ |
Controlled Return to Service
01 · Apply ESD controls and isolate all hazardous energy.
02 · Inspect connectors, coatings, fibers and terminal markings. 03 · Install only in the verified board position. 04 · Validate indications, permissives and protection behavior. 05 · Observe the drive during a controlled restart. |
| ITEM | ROLE | PURCHASE CHECK |
|---|---|---|
| 80190-640-02-R | Coated TFB board | Discontinued legacy assembly |
| 80190-540-02-R | Direct successor | Confirm drive configuration before fitment |
| Temperature sensors | Mounted at converter heatsinks | Feed the thermal-monitoring path |
| Drive protection | Alarm and trip response | Depends on configured thresholds |
|
QUALITY + RESPONSE
Careful matching and prompt communication support urgent maintenance work.
|
INSPECT + VERIFY
Identity, condition and configuration details are reviewed before dispatch.
|
STOCK + DELIVERY
Global coordination helps shorten recovery time for current and discontinued parts.
|
AMIKON supplies high-quality current and discontinued industrial automation parts with rapid response, careful matching and efficient international delivery. Our service is built around quality, reliability, transparent communication, practical innovation and lasting customer support.
Sales Manager · Miya Zhengsales@amikon.cnWhatsApp · 86-18020776792| Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the reason. A return or replacement follows receipt and inspection. | Return-related shipping costs are paid by the buyer. |
