KINETIX 5700 SERVO SYSTEM
Two Axes, One Coordinated Motion Platform2198-D020-ERS3

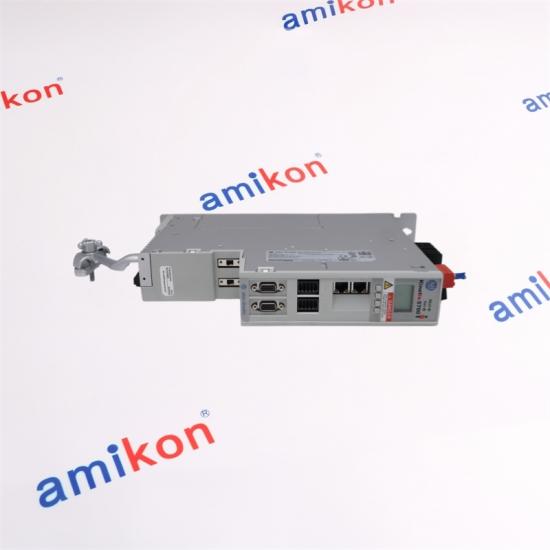

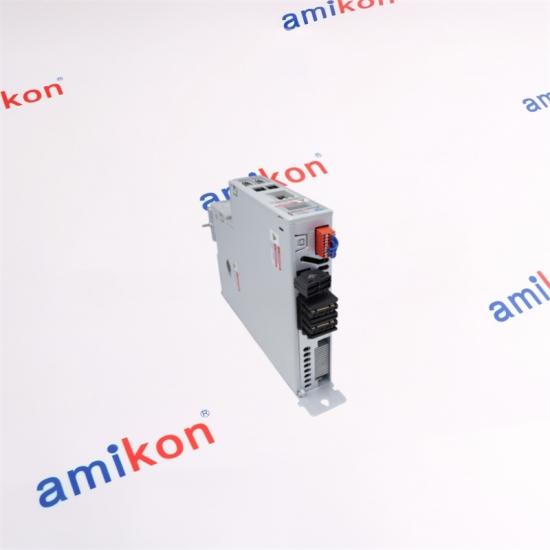

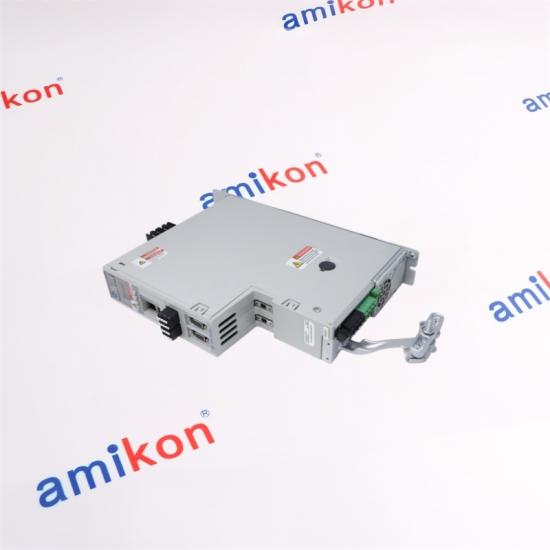

The 2198-D020-ERS3 is a Kinetix 5700 dual-axis inverter module. It provides two 8 A axis outputs in a 55 mm-wide housing and operates from the Kinetix 5700 shared DC-bus architecture.
|
| Product identity | Kinetix 5700 dual-axis inverter |
| Axis capacity | Two servo axes in one module |
| Continuous current class | 8 A per axis |
| Mechanical width | 55 mm module |
| Power architecture | Operates on the Kinetix 5700 DC bus |
| Network control | CIP Motion over EtherNet/IP |
| Safety architecture | ERS3 integrated safety capability within a correctly engineered system |
| Feedback ecosystem | Used with compatible Kinetix motors, feedback and motor-power cabling |
| Installation relationship | Requires the correct DC-bus supply, accessories and protection |
| Replacement control | Match catalog number, series, firmware, safety design and axis loading |
| Share the motor, load and DC-bus arrangement for a focused quotation. | ASK MIYA TO CHECK |
| DC-bus supply | Creates and manages the common DC bus | Required upstream role |
| 2198-D020-ERS3 | Two 8 A inverter axes | Selected axis module |
| Smaller dual-axis modules | Lower current classes | For lighter motor loads |
| Single-axis modules | One higher-current axis | Different current and width class |
Physical similarity alone does not establish interchangeability. Confirm the complete catalog number, installed system and electrical or mechanical configuration together.
