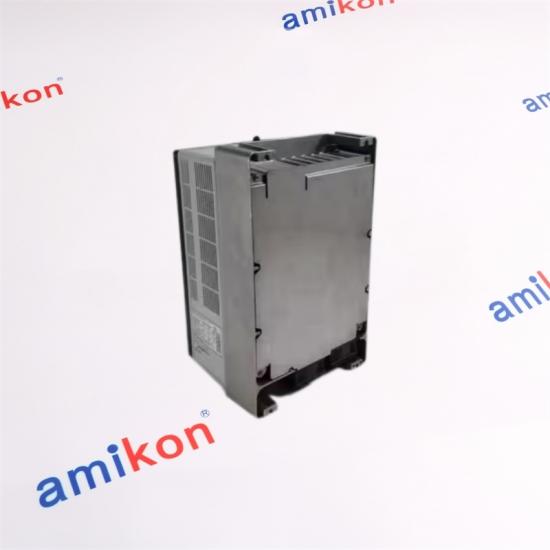

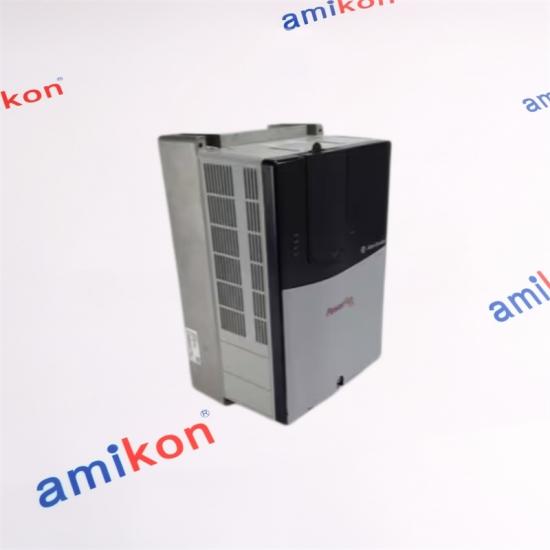

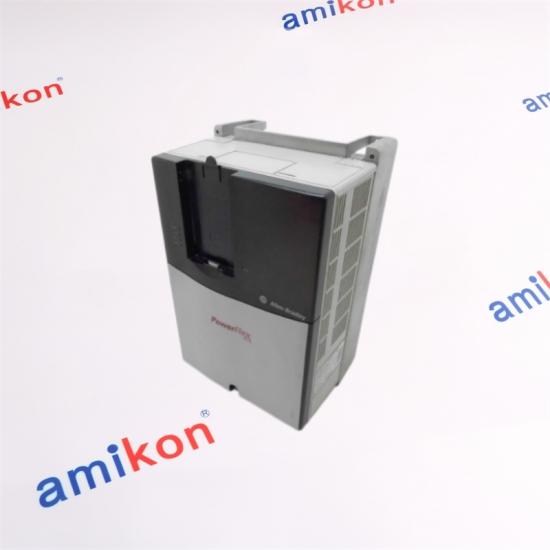

Allen-Bradley 20AC030A0AYNANC0 PowerFlex70 AC Drive

Allen-Bradley 20AC030A0AYNANC0
Allen-Bradley 20AC030A0AYNANC0
Allen-Bradley 20AC030A0AYNANC0

Allen-Bradley 20AC030A0AYNANC0 PowerFlex70 AC Drive

Calculate shipping
Quotation Request
ALLEN-BRADLEY
20AC030
A0AYNANC0

POWERFLEX 70
AC Drive
Panel Mount
ϟ   ◉   ϟ
MOTOR CONTROL
DRIVE RATINGS
POWER / CURRENT / SUPPLY
OUTPUT
30 A
NORMAL DUTY
15 kW
SUPPLY
400 V
01 / Input 3-phase AC
02 / Heavy-duty rating 11 kW
03 / Enclosure IP20 / NEMA Type 1
Enhanced control · 24 V I/O · No HIM included
AMIKON LIMITED
Drive & Automation Parts
International Delivery on the Day
Quick Response Support
Intercontinental Cooperation Network
Sales manager: Miya zheng
LIFECYCLE NOTICE
Scheduled discontinuation: May 30, 2027. Verify availability before ordering.
POWER
PATH

400 V
3 PHASE

30 A
POWERFLEX 70 / FRAME D

20AC030A0AYNANC0

Enhanced-Control Adjustable Frequency AC Drive

A 400 V three-phase PowerFlex 70 drive rated for 30 A continuous output, configured with conformal coating, brake IGBT, second-environment EMC filtering and Enhanced Control with 24 V I/O.
DUTY ENVELOPE
15 kW
NORMAL DUTY
11 kW
HEAVY DUTY
IP20 / NEMA TYPE 1
NO HIM / NO FEEDBACK
NO COMMUNICATION MODULE
INPUT > RECTIFIER > DC BUS > INVERTER > MOTOR
01 / DRIVE IDENTITY + APPLICATION

Power Conversion Defined by the Full Catalog Code

The 20AC030A0AYNANC0 is a PowerFlex 70 adjustable-frequency AC drive configured for 400 V three-phase supply. Its 30 A continuous output rating supports 15 kW normal-duty or 11 kW heavy-duty motor applications.

This catalog configuration combines Enhanced Control with 24 V I/O, a factory-installed brake IGBT, conformal coating and a second-environment EMC filter. It is a panel-mount IP20 / NEMA Type 1 unit supplied with a blank HIM plate, without an internal communication module and without feedback hardware.


ORDERING CONTROL
Match the full catalog string-not only 20AC030. Voltage class, enclosure, coating, HIM, braking, EMC, communication, control and feedback characters define the delivered drive.
REQUEST A QUOTE -
Input / output 400 V AC, 3 phase / 30 A continuous
Duty ratings 15 kW normal duty; 11 kW heavy duty
Overload capacity 33 A for 1 minute; 45 A for 3 seconds
Enclosure Panel mount, IP20 / NEMA Type 1
Control Enhanced Control with 24 V I/O
Installed options Brake IGBT, conformal coating, EMC filter
Operator interface No HIM; blank front plate
Feedback / network No feedback; no communication module
02 / POWERFLEX 70 SELECTION PATH

Where This 30 A Frame D Configuration Fits

IDENTITY RELATIONSHIP SELECTION NOTE
20AC030 This unit 400 V, 30 A, Frame D
20AC022 Lower rating 400 V, 22 A, Frame D
20AC037 Higher rating 400 V, 37 A, Frame D
PowerFlex 70 Platform Common drive family; options vary by full code
DO NOT SUBSTITUTE BY APPEARANCE. Match the full catalog string-not only 20AC030. Voltage class, enclosure, coating, HIM, braking, EMC, communication, control and feedback characters define the delivered drive.
20+ YEARS / AUTOMATION SUPPLY

Critical Parts, Coordinated Without Delay

PROVEN EXPERIENCE
More than two decades serving industrial automation requirements.
URGENT DISPATCH
Fast coordination helps reduce the cost of unplanned downtime.
HUMAN SUPPORT
Experienced sales support for difficult and discontinued parts.
03 / CONFIGURATION CHECKPOINT

Send the Complete Requirement

MIYA ZHENG - SALES MANAGER SALES@AMIKON.CN WHATSAPP +86 180 2077 6792
Contact within seven days
Raise receiving concerns promptly.		   Preserve original condition
State the reason and protect the item.		   Inspection before resolution
Buyer covers return-related shipping costs.
04 / BEFORE THE DRIVE IS ORDERED

Five Checks Buyers Should Make

01
20AC030A0AYNANC0: Can 20AC030A0AYNANC0 replace any 30 A PowerFlex 70?
No. Confirm the complete catalog code, 400 V class, Frame D construction, Enhanced Control, 24 V I/O, coating, brake IGBT, EMC filter and option positions.

02
20AC030A0AYNANC0: Does 20AC030A0AYNANC0 include a keypad?
No. This configuration is supplied without a HIM and uses a blank plate. Order the required operator interface separately when the installation needs one.

03
20AC030A0AYNANC0: What motor rating applies to 20AC030A0AYNANC0?
The catalog configuration is rated 15 kW for normal duty and 11 kW for heavy duty, with 30 A continuous output.

04
20AC030A0AYNANC0: Is a braking resistor included with 20AC030A0AYNANC0?
The brake IGBT is installed, but a drive-mounted brake resistor is not included. Size and select external braking hardware for the application.

05
20AC030A0AYNANC0: What should be checked before energizing 20AC030A0AYNANC0?
Verify supply voltage, grounding, branch protection, motor data, enclosure ventilation, control wiring, parameter backup and the absence of unintended rotation commands.
