32 INPUT POINTS
|
FIELD CONTACTS INTO CENTUM VP
Yokogawa

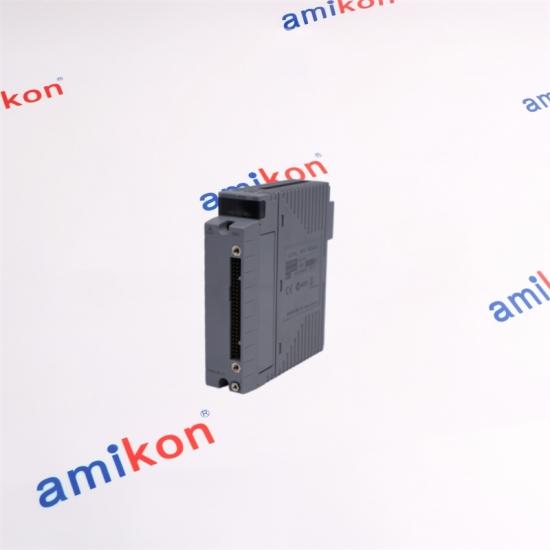

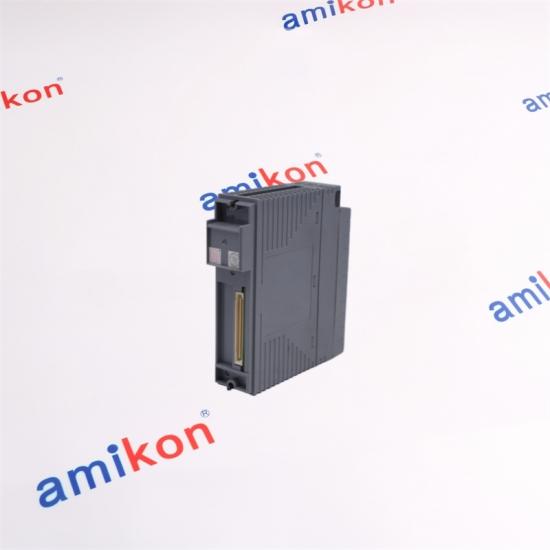

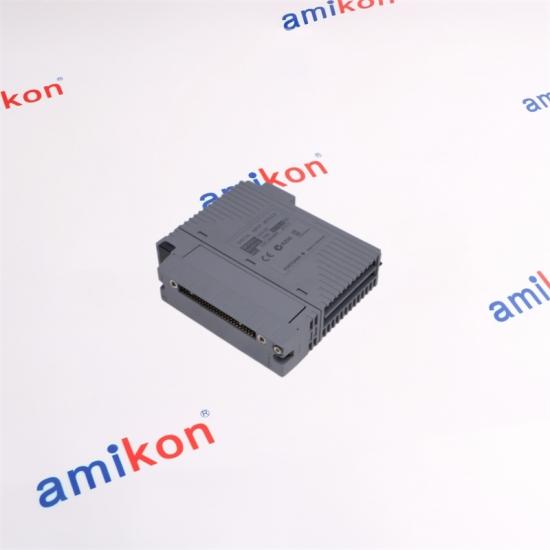

ADV151-P60/D5A00
A 32-channel, 24 VDC isolated digital input module with pushbutton-input operation, front status display and the ATD5A-00 KS cable interface adapter. The full suffix defines the operating and connection arrangement.
|
P
PUSHBUTTON INPUT D5A00
KS CABLE ADAPTER |
| 24 VDC FIELD SIGNAL | → | 32 ISOLATED INPUTS | → | STATUS DISPLAY | → | KS CABLE INTERFACE |
| ADV151 32-channel digital input |
P60 Pushbutton function and status display |
/D5A00 ATD5A-00 adapter included |
| 01 | Input acquisition | The module concentrates 32 discrete field states for the FIO environment. Typical circuits include maintained contacts, selector switches, limit switches and pushbuttons that meet the 24 VDC input requirements. |
| 02 | Pushbutton behavior | The P configuration is intended for pushbutton input handling. Field contact timing, external power and wiring must be checked as a complete circuit rather than inferred from the front label alone. |
| 03 | Visible operating state | The P60 configuration includes the front status display and carries no explosion-protection designation. This distinction matters when replacing a P50 or an explosion-protected E/F variant. |
| 04 | Cable-side interface | Option /D5A00 includes the ATD5A-00 KS cable interface adapter. The mating cable, terminal arrangement and field common scheme must match the existing cabinet wiring. |
| 05 | FIO system fit | ADV151 is a CENTUM VP digital input member. It differs from ADV161 by channel count, from ADV551 by input versus output role, and from ADV151-E variants that are selected for sequence-of-events capture. |
| ADV151-P60/D5A00 | 32 inputs, pushbutton function, status display and KS cable adapter |
| ADV151-P50 | 32 inputs and pushbutton function without the status-display designation |
| ADV151-E variants | 32 inputs with sequence-of-events capture |
| ADV161 | 64-channel digital input alternative |
| ADV551 | 32-channel digital output module, not an input substitute |
|
01 / QUICK RESPONSE
Multilingual communication for model, quantity and delivery requirements.
|
02 / VERIFY
Complete-code matching and order tracking.
|
03 / DELIVER
Coordinated international shipment for urgent automation needs.
|
| ORDER CARE | Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the reason. Resolution follows receipt and inspection. | Return-related shipping costs are paid by the buyer. |
| Q1 | ADV151-P60/D5A00: How should the exact suffix be checked before purchase? | Match the full catalog code, installed terminal or adapter arrangement, environmental option, system release and hardware revision. A shared base model does not make different suffixes interchangeable. |
| Q2 | ADV151-P60/D5A00: Can this unit be installed without checking the surrounding system? | No. Confirm the compatible base, node or control-station architecture, field wiring, power arrangement and engineering configuration before installation. |
| Q3 | ADV151-P60/D5A00: What should be photographed before an order is placed? | Capture the complete front label, side label, connector area, installed accessories and the neighboring slot or chassis identification. These views reduce selection risk. |
| Q4 | ADV151-P60/D5A00: What should be preserved during replacement? | Preserve channel assignment, wiring polarity, terminal allocation, station or node settings, software configuration and any redundancy pairing that applies to the installed unit. |
| Q5 | ADV151-P60/D5A00: What should be supplied for a quotation? | Provide the full model, required quantity, destination, expected condition and available revision details. For urgent outages, include the required arrival date. |
