| YOKOGAWA | PRODUCTSYSTEM FITSUPPLYFAQMODELS |
| CONTROL A
PROCESSOR PATH
|
Vnet/IP DUAL NETWORK |

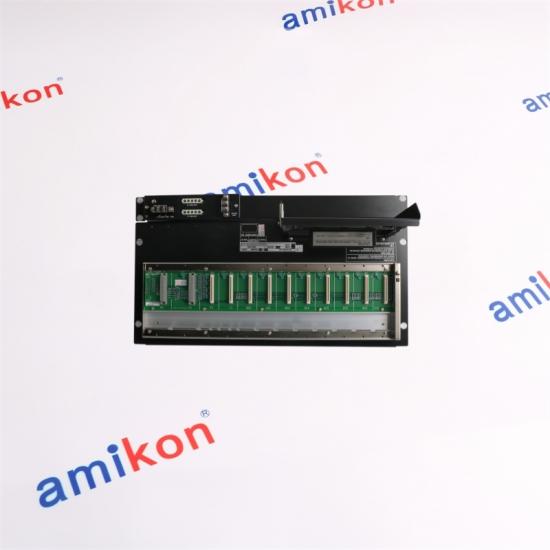

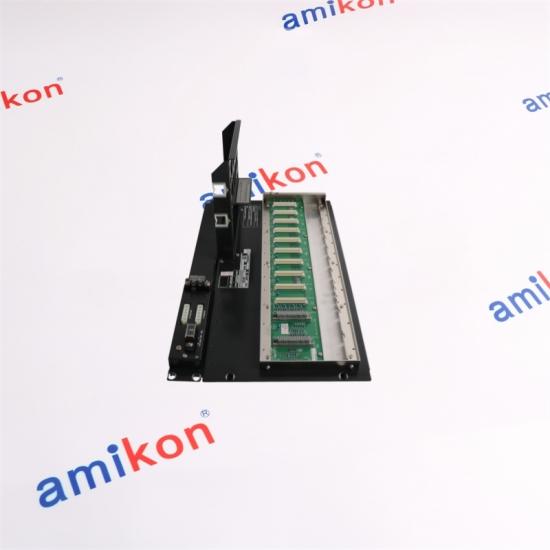

A 19-inch rack-mount duplexed field control unit for CENTUM VP FIO. The A41262 order code specifies dual-redundant Vnet/IP, dual-redundant power supplies, 220–240 VAC input and ISA Standard G3 environmental protection. | CONTROL B
STANDBY PATH
|
| DUPLEXED CONTROL CORE |
NETWORK PATH A Vnet/IP connection |
POWER PATH A 220–240 VAC |
FIO ESB BUS NODES |
| NETWORK PATH B Redundant Vnet/IP |
POWER PATH B Redundant supply |
| 19-INCH Rack-mountable unit |
230 VA Maximum steady consumption |
ISA G3 Environmental option |
| 01 | Redundant control core | AFV30D provides a duplexed field-control architecture so the paired control path, redundant Vnet/IP interfaces and redundant power arrangement operate as a coordinated station design. |
| 02 | Vnet/IP plant network | The field control unit connects to the CENTUM VP control network through dual-redundant Vnet/IP. Network pairing, station addressing and system release compatibility must be preserved during replacement. |
| 03 | FIO expansion | Field I/O is connected through ESB bus node units such as ANB10 or optical ESB arrangements where specified. The node, bus-interface and I/O population determine the final cabinet architecture. |
| 04 | Power and installation | The A41262 code uses 220 to 240 VAC. Maximum steady consumption is 230 VA with a stated heat output of 120 W for the AFV30D installation class. Protective enclosure and grounding practices remain part of the installed system. |
| 05 | G3 environmental treatment | The code includes the ISA Standard G3 option and no explosion-protection designation. This is not interchangeable with another power or environmental suffix merely because the chassis appearance is similar. |
| AFV30D-A41262 | Duplexed 19-inch FIO controller, redundant Vnet/IP and power, 220-240 VAC, G3 |
| AFV30S | Non-duplexed controller family with selectable single or redundant power arrangement |
| AFV40D | Duplexed FIO controller supplied in a cabinet configuration |
| A2FV50D | Newer duplexed field-control family supporting N-IO/FIO architectures |
|
TEAM RESPONSE
Prompt communication across regions.
|
ORDER INSPECTION
Matching and tracking before dispatch.
|
READY STOCK
Efficient international delivery planning.
|
| QUALITY | RELIABILITY | TRANSPARENCY |
| ORDER CARE | Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the reason. Resolution follows receipt and inspection. | Return-related shipping costs are paid by the buyer. |
| Q1 | AFV30D-A41262: How should the exact suffix be checked before purchase? | Match the full catalog code, installed terminal or adapter arrangement, environmental option, system release and hardware revision. A shared base model does not make different suffixes interchangeable. |
| Q2 | AFV30D-A41262: Can this unit be installed without checking the surrounding system? | No. Confirm the compatible base, node or control-station architecture, field wiring, power arrangement and engineering configuration before installation. |
| Q3 | AFV30D-A41262: What should be photographed before an order is placed? | Capture the complete front label, side label, connector area, installed accessories and the neighboring slot or chassis identification. These views reduce selection risk. |
| Q4 | AFV30D-A41262: What should be preserved during replacement? | Preserve channel assignment, wiring polarity, terminal allocation, station or node settings, software configuration and any redundancy pairing that applies to the installed unit. |
| Q5 | AFV30D-A41262: What should be supplied for a quotation? | Provide the full model, required quantity, destination, expected condition and available revision details. For urgent outages, include the required arrival date. |
