TRICON CX SAFETY SYSTEM / I/O BUS INTERFACE
4703X
Fiber-Fiber I/O Bus Interface Module · IMFF

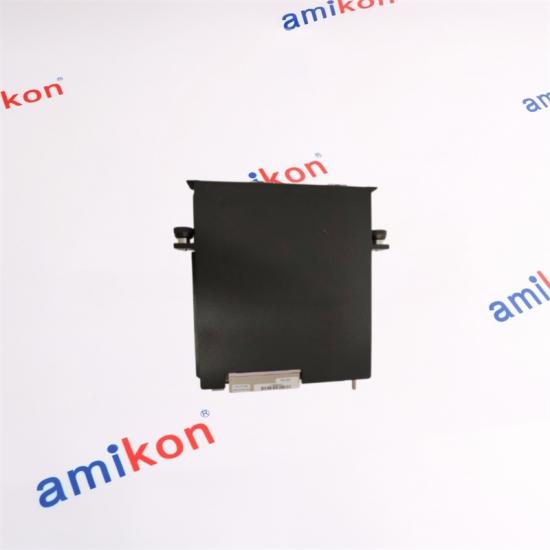

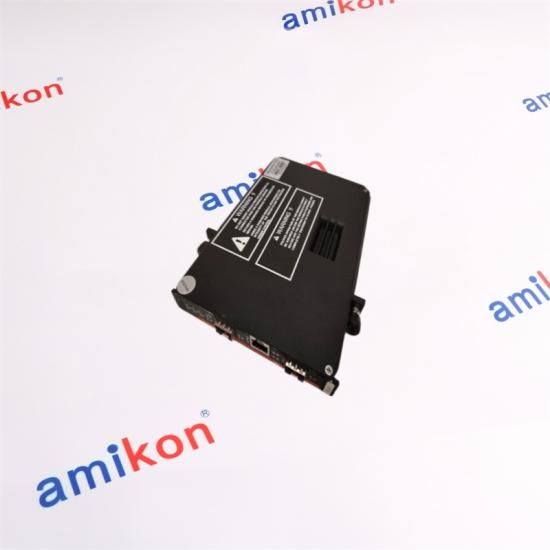

The TRICONEX 4703X is a Tricon CX I/O Bus Interface Module designed for fiber-based communication between Tricon CX I/O infrastructure and remote expansion arrangements. It combines fiber-optic I/O bus connectivity with an RS-485 serial I/O bus output, providing a practical architecture for installations where copper distance or electromagnetic conditions make conventional rack interconnection unsuitable. The module is intended for use in the 8131X Tricon CX I/O Expansion Chassis and supports SFP-based Gigabit optical communication. Its architecture is particularly useful when remote I/O needs to be separated from the main control location by a substantial physical distance. |
KEY CONFIGURATION
|
|
01
Fiber-Based I/O Bus
Supports optical I/O bus communication through SFP transceivers and enables remote expansion over substantially longer distances than conventional copper links.
|
02
Hybrid Connectivity
Provides fiber-optic input and output interfaces together with an RS-485 I/O bus output, allowing flexible connection arrangements within a Tricon CX installation.
|
03
Tricon CX Expansion
Designed for the 8131X I/O Expansion Chassis and suited to distributed I/O architectures where distance, routing and electrical environment are important design factors.
|
|
TECHNICAL PROFILE
Communication
Architecture The 4703X is built around the Tricon CX I/O bus architecture. The fiber interface is based on SFP technology, allowing the optical transceiver characteristics to be selected according to the required fiber type and link distance. |
|
|
PORT ARRANGEMENT
Three-Way
Bus Connectivity The 4703X combines optical and serial paths so that the Tricon CX I/O bus can be extended using the physical medium appropriate to the installation. |
Additional serial I/O bus output: RJ-45 / RS-485 · maximum supported copper distance: 30 m
|
|
STATUS MONITORING
Built for fast fault recognition
The front-panel status indicators provide a direct visual check of module health, detected faults, chassis alarm activity and the two power-supply conditions. |
|
|
TRICON CX FAMILY
Where 4703X
Fits |
|
|
Long-distance remote I/O
4703X is a strong fit where an expansion chassis cannot conveniently remain close to the main system and a fiber link is preferred for the I/O bus. Electrically demanding environments
Fiber communication provides galvanic separation from the electrical path and avoids many of the practical limitations associated with long copper communication runs. |
Remote rack architecture
The module supports distributed I/O arrangements where expansion racks need to be physically separated from the main control location. Replacement planning
For replacement projects, the key checks are the exact 4703X part designation, chassis compatibility, SFP selection, fiber type, link distance and the existing I/O bus topology. |
|
PURCHASE SUPPORT
Need a 4703X quote?
Send the configuration details below and our sales team can review the requirement.
|
|
||||||
|
BUYER QUESTIONS
4703X
FAQ The most important checks before purchasing or replacing a 4703X are normally the rack architecture, communication medium, SFP arrangement and physical link distance. |
Q1 · Is TRICONEX 4703X suitable when the remote I/O rack is far from the main control location?
Yes. 4703X is specifically intended for fiber-based I/O bus expansion in Tricon CX installations. With matching SFPs, the optical I/O bus can support distances up to 43.5 miles (70 km), making it appropriate for widely separated expansion locations.
Q2 · What should be checked before replacing a TRICONEX 4703X in an existing Tricon CX installation?
Verify the exact model, the 8131X expansion-chassis arrangement, the existing fiber topology, the SFP type and the required link distance. The replacement should also preserve the intended I/O bus architecture rather than being treated as a generic network module.
Q3 · Can TRICONEX 4703X use both fiber and RS-485 connections in the same installation?
Yes. The 4703X provides fiber-optic SFP interfaces for the IOP/I/O bus path and an RJ-45 RS-485 serial I/O bus output. The RS-485 section supports distances up to 30 m, while the optical path is intended for substantially longer connections.
Q4 · Why choose TRICONEX 4703X instead of the 4701X when planning a Tricon CX expansion?
The key difference is the physical communication medium. 4701X is the serial RS-485 interface option, while 4703X provides fiber-optic I/O bus connectivity through SFP interfaces together with an RS-485 output. 4703X is therefore the more appropriate choice when the architecture requires a fiber link.
Q5 · What is the most important purchasing detail when ordering a TRICONEX 4703X for replacement stock?
Confirm the complete 4703X designation and the existing installation requirements rather than matching only the product family name. For projects using fiber links, also confirm the required SFP technology, fiber type and distance so the replacement strategy matches the existing communication architecture.
|
|
