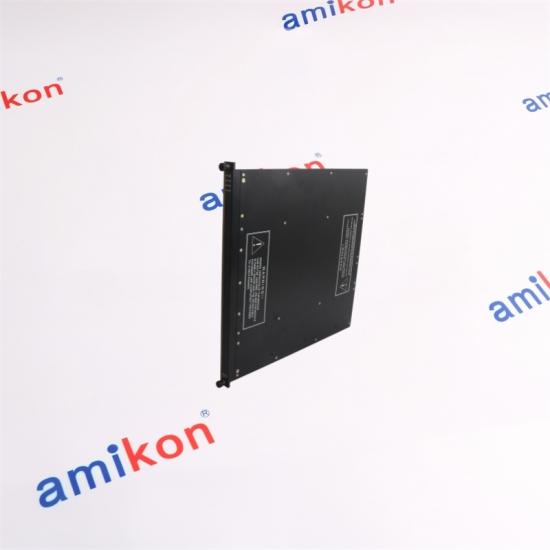

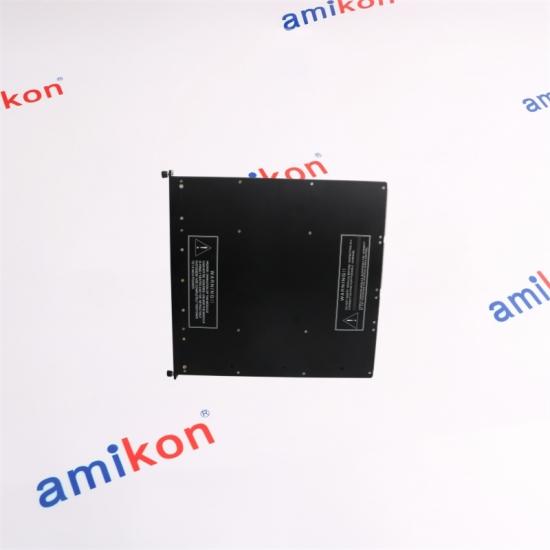

TRICONEX 3723X TMR analog input module

The TRICONEX 3723X is a TMR analog input module for the Tricon CX platform, designed for 32 single-ended analog input signals and HART communication pass-through. Its architecture is intended for safety-oriented process monitoring where redundant input processing and diagnostic comparison are important.

The module is intended for installation in a Tricon CX I/O expansion chassis. Its yellow front-panel identification provides a quick visual distinction within the Tricon CX I/O family.

The 3723X is intended for analog measurement within Tricon CX safety architectures. The TMR design provides three measurement paths for diagnostic comparison and fault handling.

HART communication is passed through the module to HART-enabled field devices. This makes the 3723X particularly useful where analog process values and HART-based device communication are required within the same instrumentation architecture.

The 3723X sits within the Tricon CX analog input family. The key selection factor is not simply channel count, but the combination of signal type, HART requirement, termination arrangement and chassis architecture.

The 3723X is suited to process instrumentation architectures where multiple analog transmitter signals must be acquired by a Tricon CX safety system while maintaining redundant measurement paths.

Its HART pass-through capability becomes valuable when the plant requires access to HART-enabled field devices without separating the analog measurement function from the safety-system I/O architecture.
