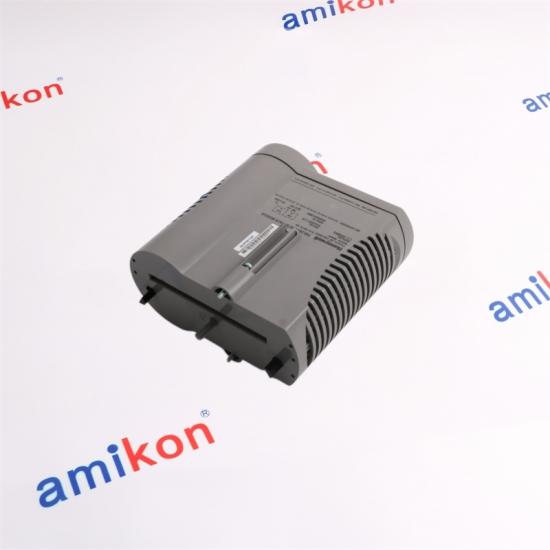

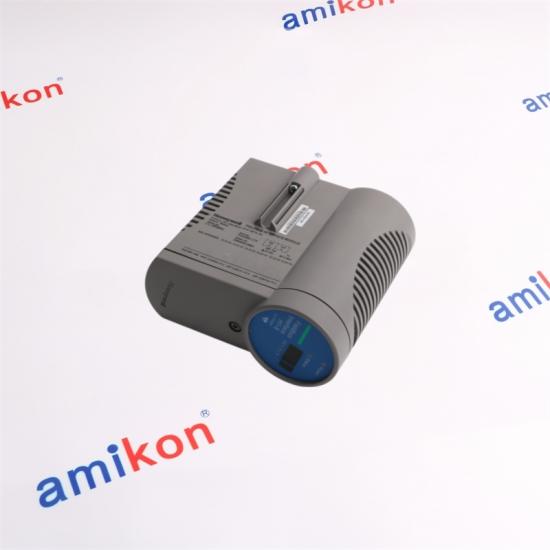

HONEYWELL CC-PFB802

51454953-176   |   FIM8

A conformally coated FOUNDATION Fieldbus interface that connects eight independent H1 networks to the Experion control environment. It consolidates scheduled process values, device status and field diagnostics while supporting non-redundant or side-by-side redundant deployment.
31.25 kbps
FOUNDATION Fieldbus H1 physical interface		 5.7 W
Module power dissipation		 0.228 A
Typical module current at 25 Vdc
MATCH THE FIM8, IOTA AND EXPERION RELEASE BEFORE ORDERING
Send the exact article number and installed-system details for a focused compatibility check.
 EMAIL MIYA WHATSAPP 86-18020776792
ENGINEERING PROFILE

Eight Segments, One Integrated Control View

MODULE FORMAT Series C module with conformal coating; use with the correct FIM8 IOTA assembly.
NETWORK CAPACITY Eight H1 networks; each network is an independent 31.25 kbps FOUNDATION Fieldbus segment.
OPERATOR FEEDBACK 24 V power, module and FTE status indicators plus a front display for module and link state.
AVAILABILITY DESIGN May be installed as a single interface or as a side-by-side redundant pair when the matching redundant IOTA is used.

The interface brings scheduled control data, unscheduled device communication and diagnostic status into the Experion environment. Its eight-link density helps reduce cabinet footprint while retaining segment separation. Before replacement, match the complete article number, IOTA type, coating, redundancy arrangement and installed Experion release.

SYSTEM RELATIONSHIP

FIM8 in the Series C Fieldbus Path

SMART FIELD DEVICES

Transmitters, positioners and other H1 devices		 → CC-PFB802 FIM8

Eight H1 links, dense integration and optional redundancy		 → EXPERION CONTROL

Unified values, alarms, status and engineering access
CC-PFB402 / FIM4
Four H1 networks where lower density is sufficient.		 CC-PFB802 / FIM8
Eight H1 networks for higher segment density.		 REDUNDANT FIM8
Two modules and the matching redundant IOTA improve availability.
PURCHASING FAQ

CC-PFB802 51454953-176 Questions

Can CC-PFB802 51454953-176 replace CC-PFB801 without any other checks?
CC-PFB802 is the later FIM8 model, but the IOTA, redundancy arrangement and supported Experion release still need confirmation before substitution.
Does CC-PFB802 51454953-176 power the fieldbus segments by itself?
The interface manages the H1 communication. Segment power and termination are provided through the selected powered IOTA or fieldbus power architecture.
Can CC-PFB802 51454953-176 be used in a redundant arrangement?
Yes. The FIM8 supports side-by-side redundancy when installed with the corresponding redundant IOTA and supported system configuration.
What should be matched before ordering CC-PFB802 51454953-176?
Confirm the full article number, FIM8 IOTA, coating, single or redundant layout, controller topology and Experion release.
How is an CC-PFB802 51454953-176 spare best prepared for installation?
Keep it protected from electrostatic discharge and contamination, verify connector and IOTA condition, and follow the site's approved change procedure.
