SIMATIC S7-1500 / MECHANICAL FOUNDATION

6ES7590-1AE80-0AA0

482.6 mm Mounting Rail

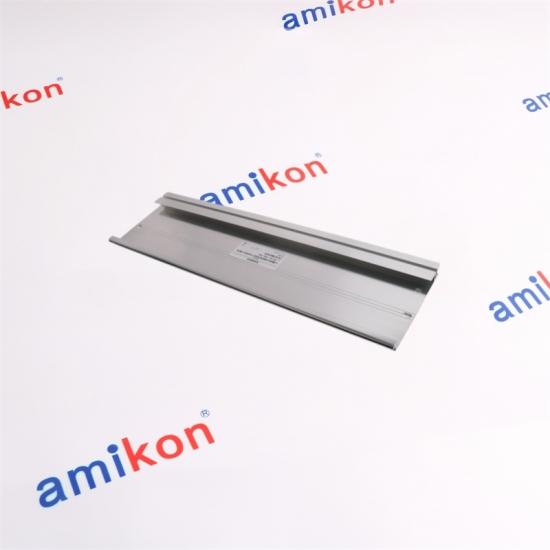

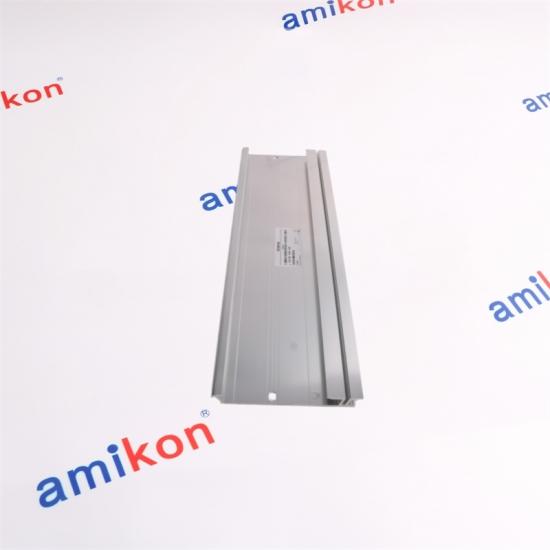

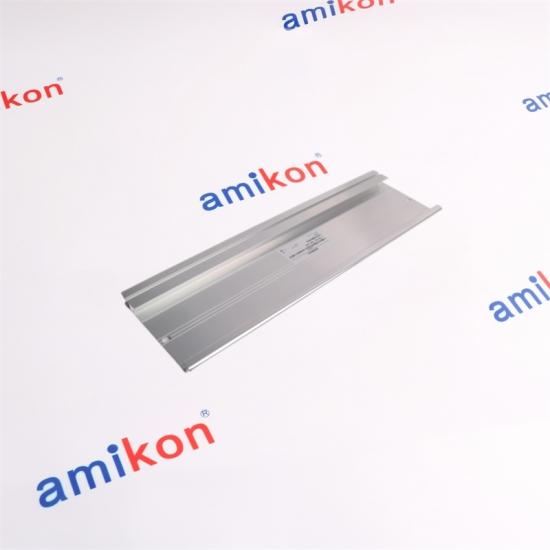

A 19-inch mounting rail for SIMATIC S7-1500 assemblies. It establishes the mechanical mounting plane for the central controller layout and also provides an integrated standard rail profile for compact cabinet components.

19 IN

482.6 MM

FORM
19-inch rail format

LENGTH
482.6 mm

GROUNDING
Grounding screw included

AUXILIARY PROFILE
For cabinet components

● PROJECT MATCHING
Sales Manager · Miya Zheng

EMAIL · sales@amikon.cn

WHATSAPP · 86-18020776792

ENGINEERING VIEW

Mounting Architecture at a Glance

01 / BASE

Mechanical carrier: The rail supports the S7-1500 controller, power supply, communication and signal modules in one aligned assembly.

02 / BOND

Protective bonding: The supplied grounding screw supports the cabinet grounding arrangement. Final bonding must follow the plant electrical design.

03 / AUX

Integrated standard profile: Terminals, miniature circuit breakers, relays and comparable cabinet devices can be positioned beneath the automation assembly.

04 / SPACE

Cabinet planning: Confirm enclosure width, module count, connector access, cable bending space and heat-clearance needs before fixing the rail.

SYSTEM RELATIONSHIP

Choose the Rail Around the Assembly

Compact rail

Best when the module arrangement is short and the enclosure has a narrow mounting zone. It reduces unused rail length but leaves less room for later expansion.

6ES7590-1AE80-0AA0

The 482.6 mm option suits 19-inch cabinet planning and combines the S7-1500 mounting surface with an integrated profile for supporting control-panel devices.

Long rail

Useful for broad central assemblies or planned growth. Select it only after checking enclosure width, support points and the required free space at both ends.

Selection advantage: a correctly sized rail keeps the mechanical arrangement predictable, supports orderly wiring and avoids relocating the controller assembly during cabinet changes.

GLOBAL INDUSTRIAL SUPPLY

Inventory, Inspection and Dispatch in One Visual Flow

A multilingual team coordinates industrial automation requests across regions.

Products are checked against the requested article number and visible condition before dispatch.

Large industrial stock supports quick coordination for current and long-unavailable parts.

Amikon's large stock is the core of our supply.
More than 400,000 electronic products cover PLC, HMI, drives, servo, CNC, IPC and PG needs. Strategic purchasing, order tracking and a broad partner network help keep industrial projects moving.

● PROJECT MATCHING
Sales Manager · Miya Zheng

EMAIL · sales@amikon.cn

WHATSAPP · 86-18020776792

BUYER QUESTIONS

6ES7590-1AE80-0AA0 FAQ

How should I confirm 6ES7590-1AE80-0AA0 fits my cabinet?
Check the available mounting width for the 482.6 mm rail, the complete S7-1500 module width, connector access, cable bend radius and free space at both rail ends.

Does 6ES7590-1AE80-0AA0 include a grounding part?
Yes. A grounding screw is included. Protective bonding and conductor sizing must still match the electrical design and applicable installation rules.

Can 6ES7590-1AE80-0AA0 support devices beyond S7-1500 modules?
Its integrated standard rail profile can accommodate suitable terminals, circuit breakers, relays and comparable cabinet components while the S7-1500 assembly occupies the main mounting plane.

What should be checked before replacing an existing rail with 6ES7590-1AE80-0AA0?
Confirm the complete article number, mounting-hole arrangement, cabinet width, module layout, bonding method and access for installed wiring before removing the existing assembly.

When is 6ES7590-1AE80-0AA0 preferable to a longer rail?
It is well suited to a 19-inch enclosure or a medium-width central assembly where the planned module set and auxiliary devices fit without reducing service access.

Return and replacement support
Contact us within seven days after receipt if an issue is found. Keep the item in its original condition and provide the specific reason. After the returned item is received and checked, the appropriate return or replacement route can be arranged. Return shipping charges are handled by the buyer.
