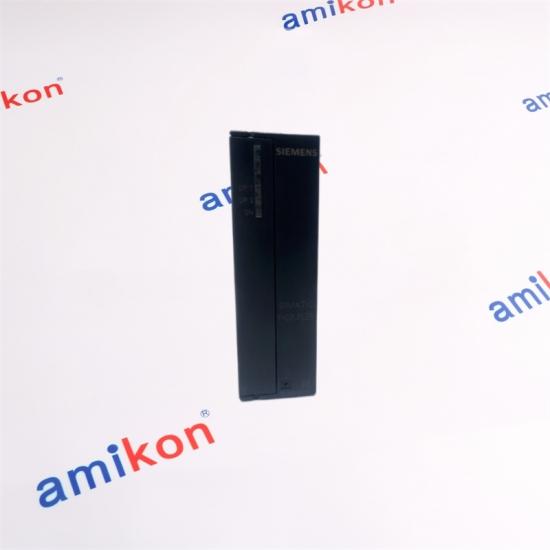

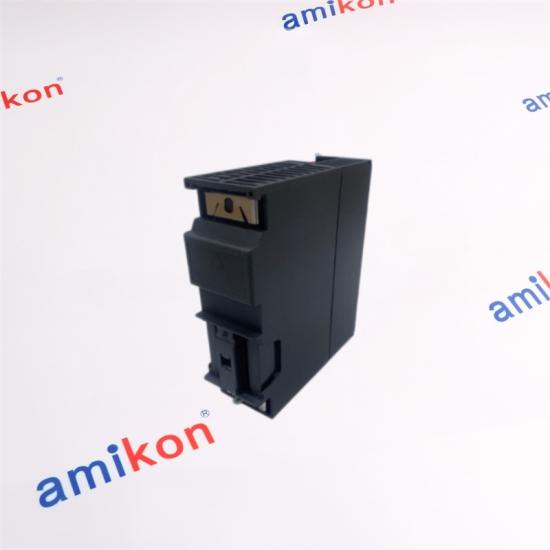

SIEMENS / Y-LINK COUPLER

SIMATIC S7 / REDUNDANT COMMUNICATION

6ES7197-1LB00-0XA0

Y COUPLER

This SIMATIC S7 Y coupler is used to assemble a Y-Link for redundant controllers. It provides the coupling point where two redundant upper communication paths converge into a subordinate fieldbus segment for compatible downstream devices.

2 PATHS

Redundant controller-side connection

1 SEGMENT

Downstream fieldbus transition

Y-LINK

High-availability communication role

Application fit: Use the Y coupler only within a correctly engineered Y-Link. Confirm controller family, adjacent modules, bus type, baud rate, addresses, cable, connectors and termination before purchase.

01	Product function Y coupler for redundant controllers

02	Architecture Part of a complete Y-Link assembly

03	Upper connection Receives the redundant communication paths

04	Lower connection Feeds the subordinate bus segment

05	Net weight Approximately 0.245 kg

06	Package size Approximately 13.2 x 15.1 x 5.1 cm

07	Origin Germany

08	Selection focus Adjacent link modules, bus settings, connectors and termination

HOW THE PRODUCT FITS THE CONTROL PATH

Redundant side

The Y-Link receives two controller-side communication paths so the subordinate segment can remain accessible through the available path.

Downstream side

Compatible fieldbus devices connect below the Y-Link through one subordinate segment. Addressing, transmission rate and termination must form one valid network.

Coupling role

The Y coupler is an active architectural element, not a passive connector. It must be selected together with the required link modules and bus accessories.

ENGINEERING AND COMMISSIONING CHECKS

01 Confirm the redundant controller and bus architecture.	02 Match adjacent Y-Link modules and hardware levels.
03 Verify lower-segment baud rate and station addresses.	04 Inspect cable type, connectors and termination.
05 Reserve correct DIN-rail space and power arrangement.	06 Test both paths and downstream communication after replacement.

Need an exact match?CONTACT MIYA

SYSTEM RELATIONSHIP

Where the Redundant Paths Converge

A Y-Link receives the two redundant controller-side paths and provides the transition to the subordinate bus segment. The Y coupler is one element of that assembly; the upstream interface modules, lower-level bus devices, addresses, transmission settings and termination must all match the planned architecture.

6ES7197-1LB00-0XA0

Y coupler

Core coupling element for a Y-Link in redundant controller systems

Redundant controller interfaces

Two upper-level communication paths

Provide the paired paths that feed the Y-Link

Downstream bus devices

Single lower-level segment

Connected through the Y-Link rather than directly to both controllers

Bus connectors and termination

Physical network completion

Must match cable type, baud rate, segment rules and topology

PEOPLE / INSPECTION / STOCK

Industrial Supply, Ready to Move

Amikon's large stock is the core of our supply.

Product inspection and order coordination

Warehouse depth for fast industrial response

Our large stock of industrial products is ready for delivery. More than 400,000 electronic products cover PLC, HMI, drives, servo and CNC devices, IPC and PG.

From current technology to long-unavailable parts, strategic purchasing supports fast response. If an item is temporarily unavailable, our preferred supplier network can be searched for a suitable route.

A wide range of brands serves customers across many industries and helps production restart quickly.

Exclusive multilingual support
Customized order tracking
No added handling or hidden charges

DIRECT PURCHASE SUPPORT

One Contact, Clear Follow-Through

Sales manager
Miya zheng

EMAIL / SALES@AMIKON.CN

WHATSAPP / 86-18020776792

Returns and replacement: Contact us within 7 days after delivery if a concern arises. Keep the item in its original condition and state the reason. A refund or replacement is arranged after the returned item arrives and is checked. Return shipping costs are borne by the buyer.

PURCHASE DECISION QUESTIONS

FAQ for 6ES7197-1LB00-0XA0

01	Can 6ES7197-1LB00-0XA0 create redundancy by itself? No. It is the Y coupler within a complete Y-Link. Redundant controllers, the required link modules, connectors, cables, configured addresses and downstream bus devices are also required.
02	What topology details are needed before ordering 6ES7197-1LB00-0XA0? Confirm the controller family, both redundant bus paths, adjacent Y-Link modules, lower bus type, transmission rate, station addresses, connector style, termination and available mounting space.
03	Can 6ES7197-1LB00-0XA0 replace an ordinary bus connector? No. It is an active system component for a Y-Link architecture, not a passive cable connector or terminator. The complete topology must be reviewed before substitution.
04	What should be inspected on a replacement 6ES7197-1LB00-0XA0? Check the complete label, connector pins, housing, rail latch and mating surfaces. Confirm that the article number and hardware state are suitable for the installed Y-Link.
05	How should a 6ES7197-1LB00-0XA0 replacement be verified? After safe installation, check both redundant paths, downstream communication, station diagnostics and switchover behavior. Keep process outputs in a controlled state until the entire link is stable.
