HIMAX INDUSTRIAL CONTROL
X-CI

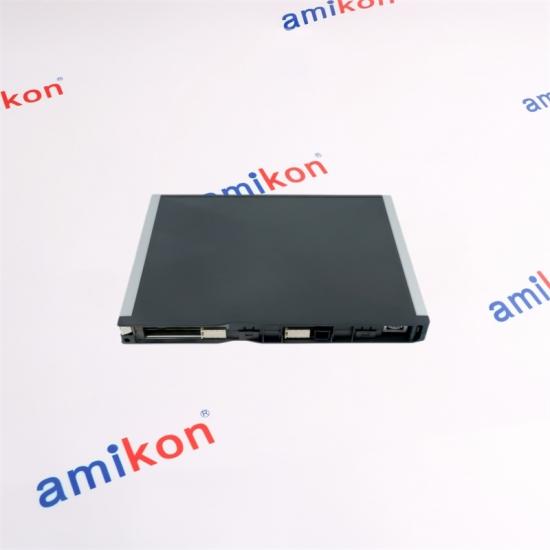

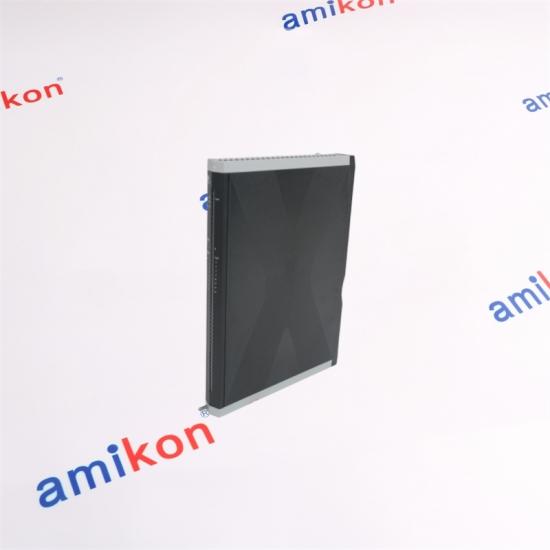

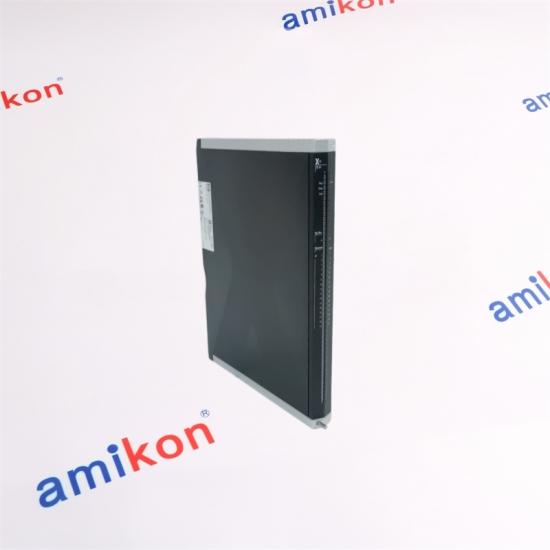

24 51 HIMax 24-channel counter module for pulse counting, frequency measurement and rotational-speed measurement in industrial programmable electronic systems.
|
PULSE → COUNT → PROCESS VALUE
|
The X-CI 24 51 belongs to the HIMax counter-module family. Its 24 inputs can be configured for proximity switches or Type 3 control-circuit devices according to the selected sensor configuration.
|
|
MODULE TYPE
Counter Module
|
CHANNEL COUNT
24 Inputs
|
MAX. FREQUENCY
20 kHz*
|
SYSTEM
HIMax
|
|
01 / APPLICATION FIELD
Turning field pulses
into usable process data. The X-CI 24 51 is intended for the HIMax programmable electronic system where pulse signals need to be counted or converted into process values such as frequency and rotational speed. When rotation-direction recognition is required, two channels are used for the corresponding measurement arrangement. |
|
The proximity-switch and Type 3 configurations are selected through the applicable sensor-selection arrangement. These two input configurations are not intended to be operated simultaneously.
Important system distinction:
X-CI 24 51 is a NonSIL counter module. Its parameters and status must not be used to perform safety functions. |
|
02 / SERVICE SCENARIO
When pulse data
disappears. |
A replacement search for X-CI 24 51 commonly begins when a HIMax installation loses reliable counter, frequency or speed information, or when the installed counter module requires replacement during maintenance. The operational consequence depends on how the measured process value is used by the application: loss of pulse-derived data can affect monitoring, process control or equipment availability.
|
 |
20 YEARS OF INDUSTRIAL EXPERIENCE
Reliable support
for critical spares. Founded in Hong Kong in 2005, Amikon has grown into a global industrial automation spare-parts supplier covering PLC, HMI, DCS, industrial PC and VFD requirements.
551,867+ SPARE PARTS SUPPLIED
128 manufacturers · Adequate spare-parts inventory
|
  |
|
03 / TECHNICAL CONFIGURATION
Input architecture
|
For proximity-switch operation, open-circuit and short-circuit thresholds are preset according to the NAMUR arrangement. Open-circuit and short-circuit monitoring is available only when the proximity-switch configuration is selected.
|
|
04 / SYSTEM INTEGRATION
Inside the HIMax
signal path |
The I/O module processor system controls and monitors the I/O level. Module data and states are made available to the processor modules through the redundant system bus. System-bus redundancy depends on the corresponding redundant system-bus modules being installed and configured appropriately.
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
Delivery Way: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment Term: T/T |
|
05 / RFQ
Give us the five
details that matter. |
Please include the complete part number, required quantity, destination, required date and the machine/system where the X-CI 24 51 is installed. This helps confirm the intended configuration before quotation.
|
|
06 / BUYER QUESTIONS
X-CI 24 51 — Five questions worth checking
|
||||||||||
|
|
07 / RELATED MODELS
Additional industrial automation models
A mixed selection for broader PLC, DCS, process-control and automation requirements.
|
||||||||||||||||||||||||||||||||||||||||||||
|
|
08 / AMIKON
Two decades of
industrial continuity. Amikon began its industrial automation business in Hong Kong in 2005. Over the past two decades, the company has expanded its international customer network and industrial spare-parts portfolio. Its product coverage spans programmable logic controllers, human-machine interfaces, distributed control systems, panel controllers, industrial PCs and variable-frequency-drive spare parts.
|
|
|
AFTER-SALES
Return / Replacement
|
If you have a question after receiving the item, please contact us within 7 days. Any returned item should remain in its original condition and be accompanied by the specific reason for return.
After the returned item is received, an applicable return or replacement arrangement can be processed. Shipping costs generated by the return are the buyer's responsibility.
|
|
09 / CONTACT
Need an X-CI 24 51
replacement? Send the part number and application details. Our sales team can help confirm the required configuration and quotation information.
|
| HIMA X-CI 24 51 | HIMax Counter Module | 24 Channels | 0–20 kHz |
