16 Safety-Related Digital Inputs

Sixteen digital inputs provide the field interface for safety-related discrete signals. The input values are transferred safely to the associated controller.

Line Monitoring Support

Pulsed outputs can be assigned for line-control functions that help detect wiring faults such as short-circuits and open-circuits.

SafeEthernet Communication

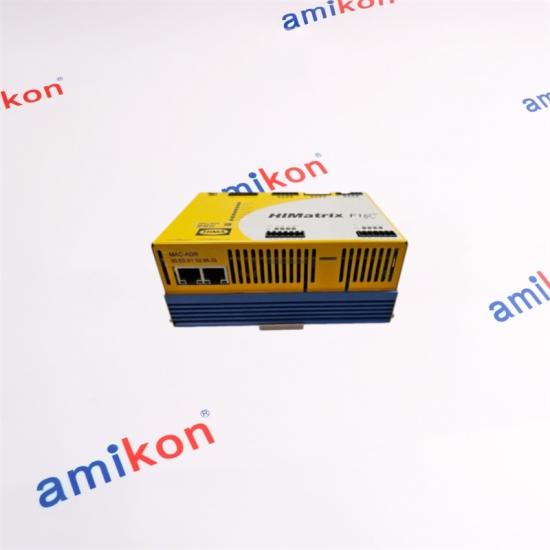

Two RJ-45 interfaces support 10BASE-T and 100BASE-TX Ethernet communication with integrated switching.

Compact DIN-Rail Installation

The device is designed for horizontal installation on a 35 mm DIN rail within the HIMatrix system environment.

16 digital inputs with line monitoring capability and two Ethernet interfaces.

Combined digital input/output remote I/O variants for applications requiring both signal directions.

HIMatrix digital output variants for safety-related output applications.

Safety Signal Acquisition

The module is suited to remote acquisition of discrete safety signals that must be transferred to an associated safety controller over SafeEthernet.

Emergency-Stop Wiring Supervision

With appropriate line-control configuration, pulsed outputs can support detection of short-circuit and open-circuit conditions in digital input wiring.

Remote I/O Expansion

It can be used where additional distributed digital input capacity is required within a compatible HIMatrix safety architecture.

Typical Replacement Concern

If an installed unit reports input faults, communication faults or persistent diagnostic alarms, replacement should be checked against the complete system configuration rather than channel count alone.

Can F1 DI 16 01 replace another HIMatrix digital-input unit directly?

Not automatically. The replacement should be checked against the installed hardware designation, controller architecture, firmware / engineering-tool requirements, wiring arrangement and environmental variant. The fact that both units provide digital inputs is not sufficient for a direct substitution.

Why does F1 DI 16 01 matter when the existing safety system is still operating?

A replacement should be planned before a remote I/O failure interrupts safety-related signal acquisition. Keeping the exact model and system compatibility under control can reduce the risk of an emergency procurement with an incorrectly matched variant.

Does F1 DI 16 01 support line-fault detection for safety input wiring?

Yes. The device provides configurable pulsed outputs that can be used for line control. This function supports detection of conditions such as short-circuits and open-circuits on digital input circuits when the relevant wiring and configuration are implemented correctly.

Which communication details should be checked before buying F1 DI 16 01?

Confirm that the existing architecture uses the compatible SafeEthernet arrangement and that the two RJ-45 interfaces, network addressing and associated controller configuration match the installation. The module communicates with a controller and does not operate as a standalone user-program execution unit.

What should a buyer confirm when ordering F1 DI 16 01 for an existing plant?

Confirm the complete part number, installed controller / HIMatrix architecture, required operating temperature range, communication arrangement and field wiring. Providing the machine or system designation together with the required date helps the replacement process stay aligned with the installed system.
