SAFETY-RELATED TEMPERATURE INPUT

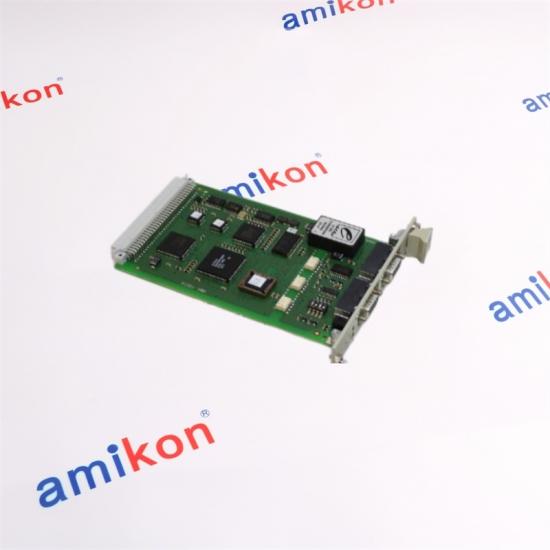

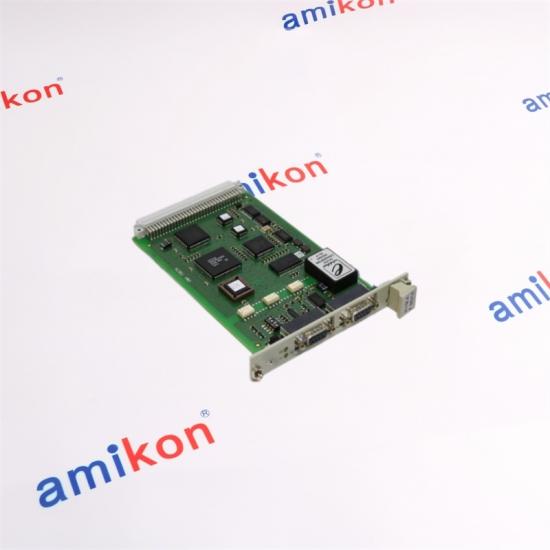

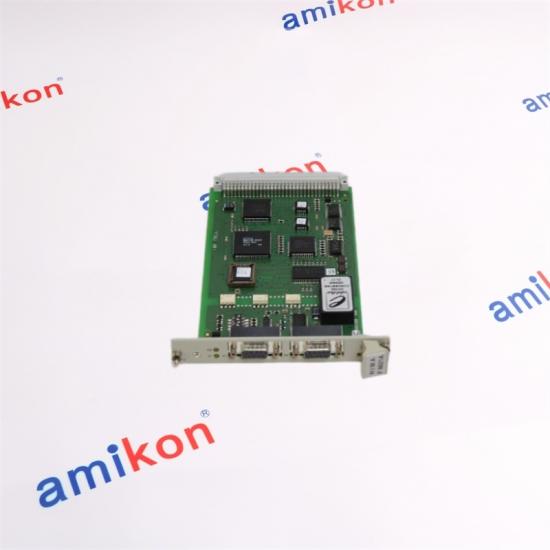

HIMA F6220
8-Channel Thermocouple Input Module · (Ex)i · Safety-Related
The HIMA F6220 is a safety-related thermocouple input module designed for H41q/H51q systems. It provides eight thermocouple channels and a separate Pt100 input used as the reference-temperature input. The module combines intrinsically safe input circuitry with its own 1oo2 microprocessor architecture and online diagnostic routines. Each thermocouple channel provides a process value together with a channel error status for safety-related processing.
|
MODEL PROFILE
F6220
Designed for safety-related temperature acquisition where intrinsically safe field circuits are required.
|
|
01 / CORE
Features
|
|
| Product type | Safety-related analog thermocouple input module |
| Thermocouple channels | 8 channels |
| Reference input | 1 × Pt100 resistance thermometer, two-wire measurement, for reference temperature |
| Thermocouple standard | DIN EN 60584-1 |
| Temperature limits | Approx. -270 °C to +1820 °C, depending on the configured thermocouple type |
| Low-voltage input range | -100 mV to +100 mV |
| Resolution | 0.01 mV, with scaling specified as 0.1% |
| Linearization | Less than 0.1% |
| Measured-value update | 80 ms |
| Safety architecture | 1oo2 microprocessor system with online safety tests |
| Hazardous-area design | Intrinsically safe circuits, EEx ia IIC design |
| Space requirement | 4 SU |
| Operating supply | 5 VDC / 125 mA; 24 VDC / 300 mA |
| Ventilation requirement | The module is specified for operation with forced ventilation. |
|
SIGNAL PROCESSING
Configured Per Channel
The thermocouple channels are configured through the HIMA HF-TMP-3 function block. A channel that has not been properly configured does not provide valid process functionality. Each channel supplies a safe measured value together with a corresponding error status for safety-related evaluation. |
|
|
03 / FAMILY
H41q / H51q
Input Modules F6220 belongs to the safety-related input-module range used with H41q/H51q systems. |
Selection principle: F6220 is the appropriate family member when the field signal is thermocouple temperature measurement and the installation requires the intrinsically safe input design. It should not be treated as a generic substitute for F6217 or F6221 simply because those modules also provide analog input functions.
|
|
Where F6220 Fits
F6220 is suited to safety-related temperature acquisition where thermocouples are installed in hazardous areas and intrinsically safe signal circuits are required. The thermocouples can be installed in hazardous areas up to Zone 0 when the complete installation meets the applicable requirements. Typical engineering considerations include process temperature monitoring, safety-related temperature thresholds, burner or thermal-process supervision, and other applications where temperature values must be incorporated into a safety-related HIMA PES. |
When a Replacement Is Needed
If an installed F6220 develops channel errors, loses valid temperature values, or requires planned spare replacement, the replacement should match the required F6220 hardware configuration and the host H41q/H51q system arrangement. Before ordering, verify the exact part number, hardware revision, system compatibility, field wiring, thermocouple type, hazardous-area requirements and configured channel behavior. A visually similar analog input module is not automatically an equivalent replacement for F6220.
|
| Channel fault Check channel status and field wiring. |
Invalid process value Check configuration and thermocouple type. |
Reference issue Check the Pt100 reference circuit. |
Module replacement Confirm system and revision compatibility. |
|
AMIKON INDUSTRIAL SUPPORT
Need F6220?
Send the exact model and your project requirements. Our sales team can check availability, condition, delivery timing and replacement requirements. |
|
||||
| Part Number | Quantity | Destination | Required Date | Machine / System |
| Delivery 3–5 Days |
Warranty 12 Months |
Condition Brand New |
Payment T/T |
Delivery Way E-packing / FedEx / EMS / TNT / DHL / UPS |
|
05 / FAQ
Buyer Questions
|
Can HIMA F6220 be used when the temperature sensors are installed in a hazardous area?
Yes. F6220 is specifically designed as an intrinsically safe (Ex)i thermocouple input module. Its intended application includes intrinsically safe field circuits, with the complete installation required to satisfy the applicable hazardous-area requirements. The technical description permits thermocouples to be installed up to Zone 0 when the installation is correctly engineered.
Is HIMA F6220 a direct replacement for an F6217 already installed in an H41q/H51q system?
Not automatically. F6217 and F6220 are both safety-related input modules, but F6220 is specifically designed for thermocouple temperature acquisition and includes the (Ex)i input design plus a Pt100 reference-temperature input. Replacement selection must therefore confirm the field signal type, hazardous-area requirements, system configuration and exact hardware designation.
What should be checked before purchasing HIMA F6220 as a spare module?
Confirm the complete F6220 designation, the installed H41q/H51q system arrangement, the thermocouple type used by each channel, the Pt100 reference circuit, hazardous-area requirements and the hardware revision currently installed. These checks reduce the risk of receiving a module that matches the model name but does not match the existing configuration.
Why does HIMA F6220 require attention to channel configuration during replacement?
The F6220 channels are configured through the HF-TMP-3 function block. The channel behavior depends on the configured thermocouple parameters, and a channel without proper configuration does not provide normal process functionality. When replacing a module, the existing engineering configuration and channel assignments therefore need to be checked rather than relying only on the physical plug-in replacement.
Does HIMA F6220 provide useful diagnostic information if a temperature channel develops a fault?
Yes. F6220 uses its own 1oo2 microprocessor system to perform safety-related online tests, and each input channel provides a measured value together with a channel error status. A detected channel error must be evaluated by the safety-related application logic according to the system design.
|
|
