OPERATOR INTERFACE / VIEW & CONTROL
IC755CSS12CDA

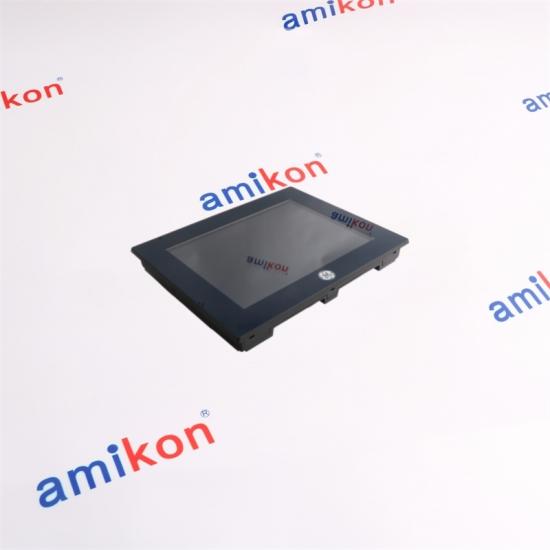

12" QuickPanel+ Industrial Operator Interface

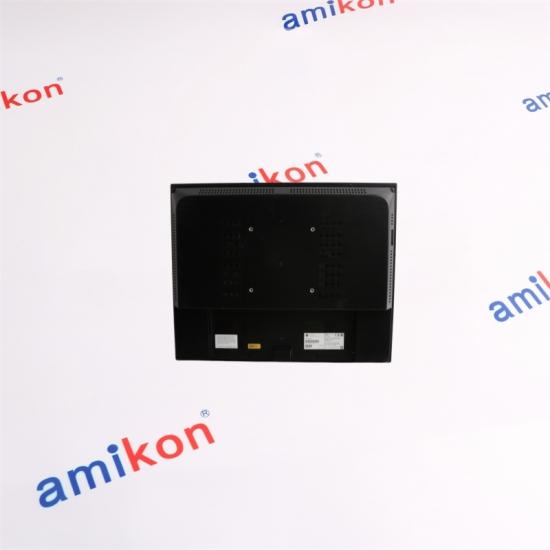

The IC755CSS12CDA is a QuickPanel+ View & Control operator interface built around a 12-inch TFT display. The unit combines operator visualization, control-oriented computing and industrial connectivity in one panel-mounted platform. Its projected capacitive multi-touch screen provides a direct operator interface, while Ethernet, serial communication, USB and SD/SDHC storage interfaces support a broad range of industrial integration requirements.
KEY POSITIONING
A practical choice when a larger operator display, multi-touch interaction and mixed Ethernet / serial connectivity are required within a single QuickPanel+ platform.
|
CORE CONFIGURATION
GE MONOGRAM BEZEL
|
|
QUICK INQUIRY
Request IC755CSS12CDA
For a faster quotation, please provide the key purchasing and application details shown on the right.
|
|
||||||||||||
|
DIRECT CONTACT
Talk to AMIKON
|
SALES MANAGER Miya zheng |
EMAIL sales@amikon.cn |
PHONE / WHATSAPP 86-18020776792 |
|
Display & Operator Interface
The unit uses a 12-inch TFT LCD with 800 × 600 SVGA resolution. Its projected capacitive screen supports two-point multi-touch operation, providing direct interaction with operator graphics and control interfaces.
Processing & Memory
|
Communication Architecture

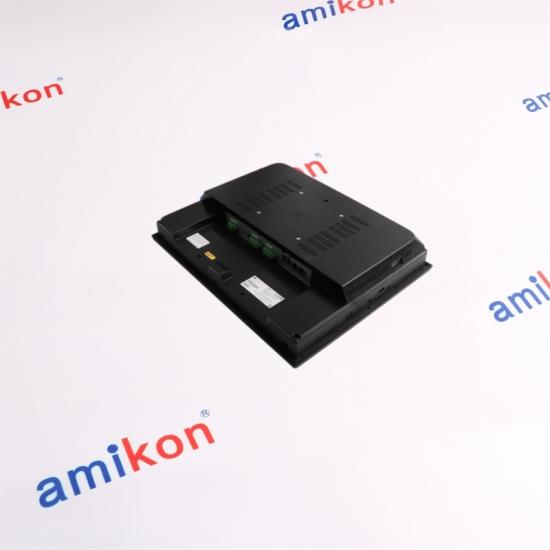

IC755CSS12CDA combines 10/100Base-T Ethernet with RS-232 and RS-485 serial communication. Two USB 2.0 Type-A ports, one Mini Type-B USB port and an SD/SDHC card slot expand service, storage and connectivity possibilities.
|
| ITEM | IC755CSS12CDA | ITEM | SPECIFICATION |
| Display | 12" TFT LCD / 800 × 600 SVGA | Touch | Projected Capacitive / two-point multi-touch |
| CPU | Freescale i.MX535 / 1GHz ARM Cortex-A8 | Memory | 1GB DDR3 SDRAM |
| Flash | 512MB SLC NAND | Battery SRAM | 512KB battery-backed SRAM |
| Ethernet | 1 × 10/100Base-T RJ-45 | Serial | 1 × RS-232 + 1 × RS-485 |
| USB | 2 × USB 2.0 Type-A + 1 × Mini Type-B | Storage | 1 × SD/SDHC slot |
| Operating System | Microsoft Windows Embedded Compact 7 | Power | +12/24VDC ±20% |
| Maximum Consumption | 30W | Weight | 3 kg |
| Dimensions | 314 × 248 × 65 mm | Panel Cutout | 302 × 228 mm |
| VESA | 100 × 100 mm | Operating Temperature | 0°C to +55°C |
| Storage Temperature | -10°C to +60°C | Humidity | 85% RH, non-condensing @ 30°C |
| Cooling | Natural convection | Status | Tri-color LED + onboard buzzer |
| MODEL | DISPLAY | MEMORY | SERIAL |
| IC755CSS12CDA | 12" / 800×600 | 1GB DDR3 + 512MB NAND | RS-232 + RS-485 |
| IC755CSW07CDA | 7" / 800×480 | 512MB DDR2 + 256MB NAND | RS-232 |
|
Application Fit
The QuickPanel+ architecture is suited to industrial operator-interface applications where visualization, machine interaction, controller communication and local data handling need to coexist. Ethernet and serial connectivity make the platform suitable for mixed-generation automation environments where both networked and serial devices may need to be accessed.
|
Replacement Considerations
When replacing an existing IC755CSS12CDA, verify the panel cutout, mounting method, power arrangement, communication interfaces, application project, storage media and required accessories before purchase. Particular attention should be given to the 302 × 228 mm panel cutout, 12/24VDC ±20% power requirement, RS-232 / RS-485 ports and 100 × 100 mm VESA mounting provision.
|
|
01 · Is IC755CSS12CDA a practical choice when a larger QuickPanel+ display is required?
Yes. IC755CSS12CDA provides the 12-inch TFT format with 800 × 600 SVGA resolution, making it the larger-display configuration within the compared QuickPanel+ pair. It is especially appropriate where a wider operator visualization area is preferred.
02 · What should be checked before replacing an existing IC755CSS12CDA?
Confirm the 302 × 228 mm panel cutout, 100 × 100 mm VESA option, 12/24VDC ±20% power requirement, communication ports and the application project or storage arrangement. These points have a direct impact on replacement compatibility.
03 · Can IC755CSS12CDA communicate with both Ethernet and serial equipment?
The IC755CSS12CDA provides one 10/100Base-T Ethernet port together with RS-232 and RS-485 serial communication, allowing the unit to fit applications requiring both network and serial connectivity.
|
04 · Why choose IC755CSS12CDA instead of moving directly to a smaller QuickPanel+?
IC755CSS12CDA offers a 12-inch 800 × 600 display, 1GB DDR3 SDRAM and a combined RS-232 / RS-485 serial arrangement. These characteristics can make it a better fit where screen area, memory capacity and mixed serial connectivity are important to the existing application.
05 · What should buyers consider when sourcing IC755CSS12CDA for an existing machine?
Buyers should confirm the exact part number, required quantity, destination, required date and machine/system. For a direct replacement, also verify mounting, power, communication and project requirements before placing the order.
PURCHASING NOTE
Exact part-number matching is recommended when maintaining an established machine configuration.
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
SHIPPING
E-packing / FedEx / EMS / TNT / DHL / UPS
|
 |
