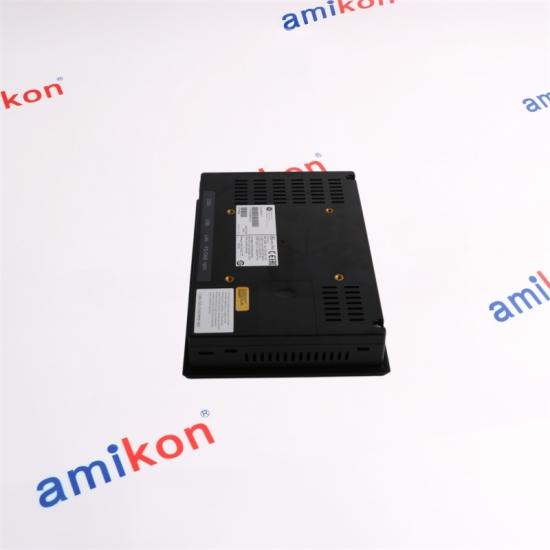

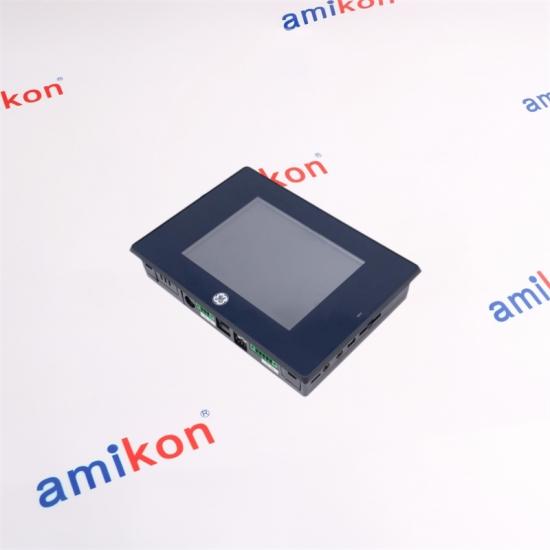

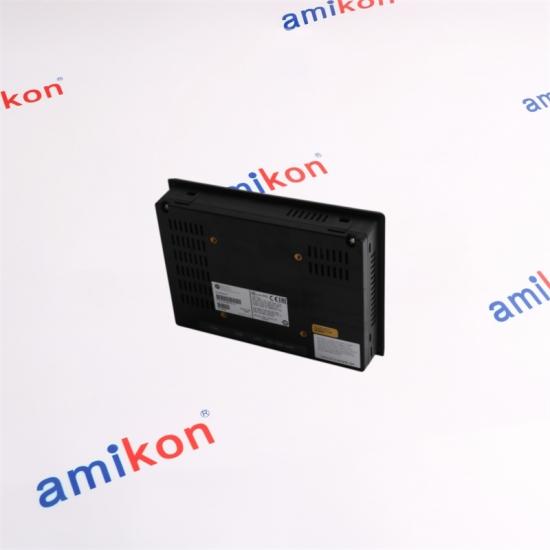

The IC755CSS06RDA is a 6-inch QuickPanel+ operator interface designed to place visualization, operator interaction and industrial communication directly at the machine or process level. Its compact panel format combines a color TFT display with resistive touch operation and multiple communication interfaces.
The View & Control configuration is suited to applications where operators need a local HMI while maintaining connectivity with industrial controllers and plant-level systems. Ethernet, RS-232, USB and removable storage interfaces provide practical integration options.
KEY CONFIGURATION
Display 6" Color TFT Resolution 320 × 240 pixels Touch Resistive Power 24 VDC ±20%
PART NO.IC755CSS06RDA
FAST QUOTATION
Request a precise quote for IC755CSS06RDA
To speed up checking and shipping, please provide:
Part Number · Quantity · Destination Required Date · Machine/System
DIRECT CONTACT
Talk to AMIKON
Stock checking, technical matching and international delivery coordination are available for your inquiry.
IC755CSS06RDA combines an operator display and touch interface with industrial communication functions in a compact panel-mounted unit. It is intended for visualization, operator control, equipment interaction and connected automation applications.
CORE ADVANTAGE
A compact HMI architecture can reduce the need for separate visualization and communication hardware in applications where local operator access is required.
FEATURE SET
Color TFT 6-inch operator display
Touch Interface Resistive touch operation
Ethernet 10/100Base-T RJ45
Serial RS-232 COM interface
USB 2 × USB 2.0 Type-A + Mini Type-B
Storage SD/SDHC support
02 / TECHNICAL PROFILE
IC755CSS06RDA Specifications
Display
6-inch Color TFT LCD
Resolution
320 × 240 pixels
Touch
Resistive touch screen
Processor
Freescale i.MX535, 1 GHz ARM Cortex-A8
System Memory
512 MB DDR2 SDRAM
Flash
256 MB SLC NAND Flash
Retentive Memory
512 KB battery-backed SRAM
Ethernet
1 × 10/100Base-T RJ45
Serial
1 × RS-232 COM
USB
2 × USB 2.0 Type-A + 1 × Mini Type-B
Operating System
Microsoft Windows Embedded Compact 7
Power
24 VDC ±20%, 15 W maximum
Operating Temperature
0°C to +55°C
Storage Temperature
-10°C to +60°C
03 / APPLICATION LOGIC
Where IC755CSS06RDA fits
The unit is suitable where a compact operator interface is required for machine status, process visualization, operator commands, alarm interaction and communication with connected automation equipment.
Machine-Level HMI Local visualization and operator interaction for equipment and production machinery.
Process Interface Local display of process values, status conditions and control functions.
REPLACEMENT CONSIDERATIONS
When replacing an installed QuickPanel+ unit, verify the display size, bezel configuration, touch technology, power arrangement, communication interfaces, panel cutout and application software before final selection.
For an existing IC755CSS06RDA installation, matching the same part number is generally the most direct route when the existing project, panel arrangement and interfaces must remain consistent.
04 / QUICKPANEL+ FAMILY
Same-family selection logic
IC755CSS06RDA belongs to the QuickPanel+ operator-interface family. The family includes different screen sizes and configurations for View & Control, RSTi Modbus TCP and RSTi-EP Modbus TCP applications. For a replacement decision, the communication architecture and mechanical arrangement should be checked alongside screen size.
IC755CSS06RDA 6" View & Control Color TFT / Resistive Touch
IC755CBS06RDA 6" View & Control Blank Bezel / Resistive Touch
IC755CSW07CDA 7" View & Control Widescreen family option
05 / BUYER QUESTIONS
IC755CSS06RDA FAQ
1. What should I verify before replacing an IC755CSS06RDA in an existing panel?
Verify the 6-inch display configuration, resistive touch interface, 24 VDC supply, panel mounting arrangement, communication interfaces and the existing QuickPanel+ application before ordering a replacement.
2. Can IC755CSS06RDA communicate with equipment through both Ethernet and serial interfaces?
Yes. The configuration provides one 10/100Base-T Ethernet interface and one RS-232 serial COM interface, allowing the terminal to serve installations that require both network and serial communication.
3. Why can IC755CSS06RDA be attractive when maintaining an older machine interface?
Its 6-inch form factor, 24 VDC supply, resistive touch operation and established QuickPanel+ architecture can help maintain an existing operator-interface arrangement without changing to a substantially different panel format.
4. What makes IC755CSS06RDA different from other QuickPanel+ configurations?
IC755CSS06RDA is the 6-inch View & Control configuration with a GE Monogram bezel and resistive touch screen. Other family variants change the bezel, communication architecture, coating or screen size.
5. What should I confirm if an IC755CSS06RDA unit has become difficult to source?
Confirm the exact part number and revision, then compare the required display, touch technology, power input, communication ports and panel dimensions. If the application depends on an existing project, maintaining the same configuration is preferable to selecting a superficially similar panel.
