INDUSTRIAL OPERATOR INTERFACE / QUICKPANEL+
IC755CBS06RDA
6-inch QuickPanel+ View & Control Operator Interface

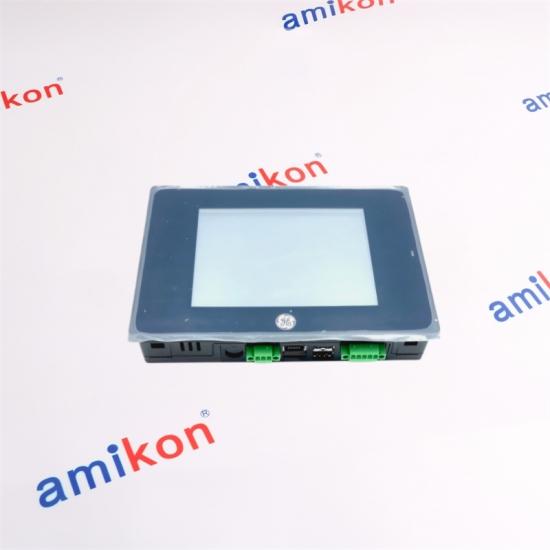

The GE Fanuc IC755CBS06RDA is a compact QuickPanel+ View & Control operator interface with a 6-inch color TFT display, resistive touchscreen and blank bezel configuration. It combines local visualization and operator interaction with embedded processing, industrial communication interfaces and removable storage resources for machine and process applications.
|
QUICKPANEL+ / 06
06"
COLOR TFT + RESISTIVE TOUCH
BLANK BEZEL CONFIGURATION
Designed for compact industrial operator-interface installations. |
|
01 / TECHNICAL PROFILE
Compact hardware.
Industrial interface. The IC755CBS06RDA combines a compact operator display with embedded processing and communication resources. Its 6-inch format is suited to installations where panel space is limited but local visualization and operator interaction remain important. |
|
|
HARDWARE ARCHITECTURE
|
ENVIRONMENT
0–55°C
Operating temperature
85% RH
Non-condensing humidity specification at 30°C
15 W
Maximum power consumption
Natural-convection cooling keeps the compact panel architecture free from an internal fan requirement.
|
|
02 / INDUSTRIAL USE
Where a compact

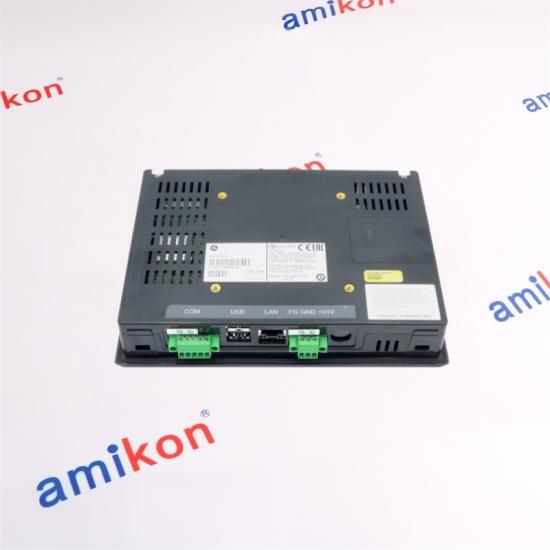

operator station matters The IC755CBS06RDA is suited to compact machine and process operator stations where a local HMI needs visualization, touch input and communication with industrial equipment. Its Ethernet, RS-232, USB and SD/SDHC interfaces provide several practical connection paths for an installed automation environment. |
|
|
03 / REPLACEMENT CONTEXT
Why IC755CBS06RDA
appears in urgent searches A replacement search commonly becomes urgent when the existing operator interface can no longer provide dependable machine access. A blank display, unstable touch response, loss of Ethernet or serial communication, unexpected rebooting, power-related failure, or damaged front interface can leave operators without the local controls and process information they depend on. For production equipment, the risk is not limited to losing the screen itself. If the QuickPanel+ is the operator's local access point, its failure can delay alarm acknowledgement, machine commands, status verification, diagnostics and recovery actions. Matching the exact part number and hardware configuration is therefore important before replacing an installed unit. |
PRE-ORDER CHECK
01 Match IC755CBS06RDA exactly.
02 Confirm the 6-inch display and blank-bezel configuration.
03 Verify 24 VDC supply compatibility.
04 Check panel cutout and mounting arrangement.
05 Confirm required communication ports.
|
|
PHYSICAL FORMAT
192 × 137 × 36
mm external dimensions
183.5 × 128.5
mm panel cutout
|
MOUNTING / INSTALLATION
The IC755CBS06RDA is designed for panel mounting and is supplied with panel mounting brackets and a mounting gasket. A VESA 75 mounting option is also specified for the QuickPanel+ 6-inch configuration. Natural convection is used for cooling. The installation should therefore allow appropriate clearance around the unit and maintain access to the communication, USB, storage and power connections required by the application. Weight: approximately 800 g
|
|
04 / QUICKPANEL+ FAMILY
Same platform family,
different front formats The supplied related models show the broader QuickPanel+ family around the 6-inch configuration. When replacing an installed unit, the display size, bezel style, touch technology and hardware configuration should be matched rather than selecting a model only by family name. |
|
|
05 / BUYER QUESTIONS
Before choosing
a replacement The important question is not simply whether the unit is a 6-inch HMI. The replacement must match the installed QuickPanel+ configuration and the machine's electrical and communication requirements. |
Q1 — Is IC755CBS06RDA a suitable replacement when a 6-inch QuickPanel+ station fails?
It can be considered when the installed system uses the same IC755CBS06RDA configuration. The critical check is the complete part number and bezel configuration, because the 6-inch QuickPanel+ family also includes the IC755CSS06RDA configuration with a GE Monogram bezel.
Q2 — What should be checked before replacing IC755CBS06RDA in an existing control cabinet?
Verify the 24 VDC ±20% supply, panel cutout of approximately 183.5 × 128.5 mm, external dimensions of approximately 192 × 137 × 36 mm, mounting arrangement and the communication interfaces required by the existing application.
Q3 — Why might IC755CBS06RDA be searched for after an HMI communication failure?
The unit provides both 10/100Base-T Ethernet and RS-232 communication. If the installed operator interface loses communication while the machine itself remains powered, checking the QuickPanel configuration, network connection, serial connection and the exact replacement part number becomes important before substituting hardware.
Q4 — Can IC755CBS06RDA support an application that needs local removable storage?
Yes. The QuickPanel+ 6-inch configuration includes an SD/SDHC card slot in addition to 256 MB SLC NAND flash and 512 KB battery-backed SRAM. The actual use of removable storage depends on the application and installed software configuration.
Q5 — What operating conditions should be considered when installing IC755CBS06RDA?
The specified operating temperature is 0°C to +55°C, with storage from -10°C to +60°C. Humidity is specified at 85% RH non-condensing at 30°C. The unit uses natural-convection cooling, so the cabinet arrangement should provide appropriate thermal clearance.
|
 |
