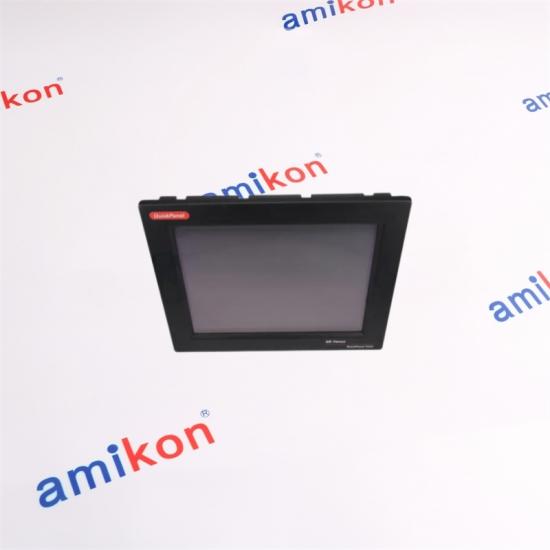

GE FANUC / QUICKPANEL VIEW
IC754VSF15CTD
15-Inch Color TFT QuickPanel View / Fully Loaded / 24VDC
The GE Fanuc IC754VSF15CTD is a 15-inch QuickPanel View operator interface designed for factory-floor HMI and control applications. Its integrated industrial computer architecture combines a color TFT touch display, embedded Windows CE.NET environment, processor, memory, Ethernet connectivity, serial communication and expansion capability in one panel-mounted platform.
|
OPERATOR INTERFACE
15.1"
COLOR TFT / TOUCH
QUICKPANEL VIEW
Industrial HMI and local control platform |
|
01 / TECHNICAL PROFILE
A compact industrial
computer at the panel The IC754VSF15CTD integrates the functions required for an operator station into a single QuickPanel platform. The architecture combines a high-resolution TFT display, resistive touch interface, embedded Windows CE.NET operating environment, industrial communications and local memory. Its two Ethernet interfaces and serial ports allow the panel to participate in networked automation environments while the Compact Flash and expansion capabilities provide additional flexibility for installed applications. |
|
|
POWER ARCHITECTURE
12 / 24 VDC
Regulated Class 2 DC input with 48 W real power rating. |
OPERATING RANGE
0–50°C
Specified ambient operating temperature range. |
PROTECTION
NEMA 4 / 4X / 12
When installed in a comparably rated NEMA panel or enclosure. |
|
SYSTEM ARCHITECTURE
One panel, multiple communication paths
|
MEMORY STRUCTURE
64 MB
DRAM
64 MB
Non-volatile Flash
512 KB
Battery-backed SRAM
128 MB
Maximum DRAM with expansion
|
|
02 / APPLICATION CONTEXT
Where IC754VSF15CTD
fits in an automation system The QuickPanel View/Control platform was positioned for factory-floor HMI and control applications. It can operate as a networked or standalone operator station and can connect to industrial equipment through its communication ports and expansion capabilities. |
|
|
03 / MAINTENANCE SCENARIO
When the operator panel
becomes the production bottleneck IC754VSF15CTD is commonly searched during maintenance when an installed QuickPanel View operator station develops a blank display, backlight problem, touch response issue, unstable startup, failed communication interface or other hardware fault that prevents normal operator interaction. A failed HMI does not necessarily stop the controller itself, but it can remove the operator's normal access to machine status, commands, alarms and process interaction. In a production environment, that loss of visibility can delay diagnosis and increase the time required to restore normal operation. For this reason, matching the installed model, display size, communication arrangement, panel cutout and project environment before ordering is important when a legacy QuickPanel installation must be restored quickly. |
REPLACEMENT CHECK
01 Match IC754VSF15CTD exactly.
02 Confirm 15-inch 1024 × 768 display requirement.
03 Check Ethernet and serial connections.
04 Verify 12/24 VDC power arrangement.
05 Confirm panel cutout and enclosure conditions.
|
|

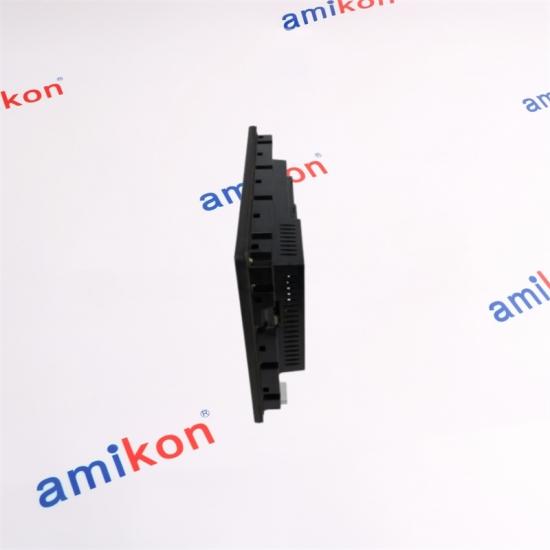

PANEL MOUNTING
379.25 × 305.55
mm panel cutout
70.7 mm
specified enclosure depth
398.8 × 323.2 mm
bezel width × height
|
INSTALLATION CONDITIONS
The unit is intended for panel mounting with a gasketed bezel. For NEMA 4, 4X and 12 qualification, the panel or enclosure should have a comparable NEMA rating. The installation arrangement requires adequate ventilation. At least 3 inches of clearance should be allowed between adjacent equipment and all sides of the QuickPanel. The specified panel thickness range is 1.6 mm to 5 mm. The manual also specifies 16 mounting clamps for securing the unit in the panel. Important installation point: correct gasket seating and enclosure conditions are part of maintaining the intended environmental protection.
|
|
OPERATING
0–50°C
Ambient temperature
|
HUMIDITY
10–85% RH
Non-condensing
|
VIBRATION
1.0 g
57–500 Hz
|
SHOCK
15 g
11 ms sine wave
|
|
04 / QUICKPANEL VIEW FAMILY
Same family,
different display scale The IC754VSF15CTD belongs to the QuickPanel View family. Other View configurations were offered with smaller monochrome or color TFT displays and different memory and communication combinations. |
|
|
05 / BUYER QUESTIONS
Questions that matter
before replacement The key issue with a legacy operator panel is usually not whether it powers on, but whether the replacement matches the installed cabinet, communication architecture and application environment. |
Q1 — Can IC754VSF15CTD replace another 15-inch QuickPanel View directly?
A direct replacement should not be decided from screen size alone. The installed part number, display resolution, communication ports, power arrangement, panel cutout and application environment should all be matched. IC754VSF15CTD uses a 15-inch 1024 × 768 TFT configuration with two 10/100BaseT Ethernet ports and two serial interfaces.
Q2 — What should I check on an existing cabinet before ordering IC754VSF15CTD?
Check the panel opening of approximately 379.25 × 305.55 mm, the 70.7 mm enclosure depth, the 1.6–5 mm panel thickness range, available ventilation space and the existing wiring arrangement. The mounting design also uses a gasket and mounting clamps, so the physical installation should be checked rather than assumed.
Q3 — Can IC754VSF15CTD communicate with a control network through Ethernet?
Yes. The platform provides two IEEE 802.3 10/100BaseT Ethernet ports with auto-negotiation and full- or half-duplex operation. Port configuration can use DHCP or manually assigned TCP/IP settings, allowing the panel to participate in an Ethernet-based industrial network.
Q4 — What type of project or software environment should be checked before buying IC754VSF15CTD?
The unit operates with Windows CE.NET and supports Proficy Machine Edition applications. When replacing an installed panel, the existing project environment and transfer method should be checked in advance. Projects can be transferred between compatible QuickPanel View/Control units using Compact Flash, and applications can also be downloaded through a data link.
Q5 — Why can IC754VSF15CTD become urgent to replace even when the PLC is still running?
The QuickPanel provides the operator-facing interface, so a display, backlight, touch or communication failure can remove normal access to machine status and operator commands while the underlying controller continues operating. In a production line, this can delay fault diagnosis and operator intervention. Keeping a correctly matched replacement can shorten the restoration window.
|
 |
