| PACSystems | PRODUCTSYSTEM FITSUPPLYFAQMODELS |
|
CONTROL
CORE 1.8
GHz PENTIUM-M
|
THE CONTROL CORE BEHIND THE BACKPLANE
PACSystems RX7i

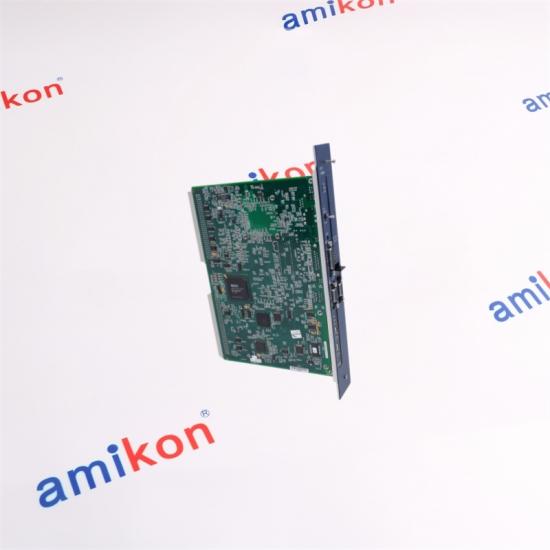

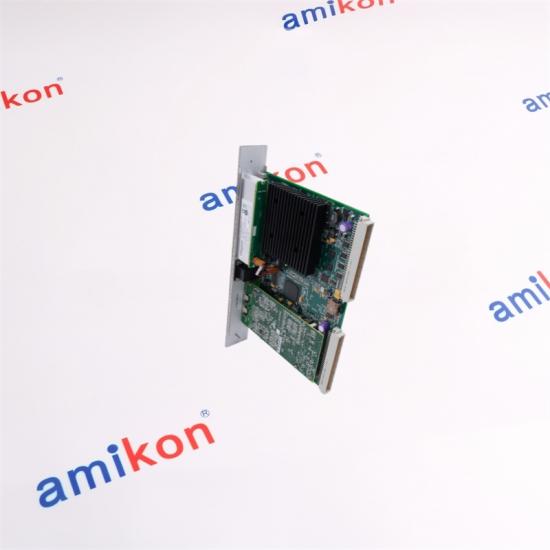

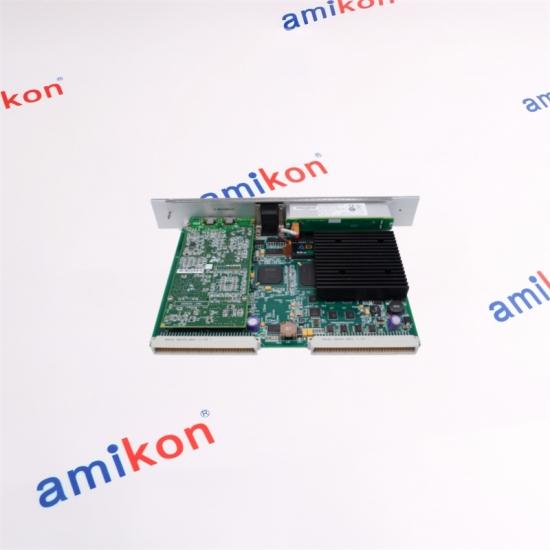

IC698CPE040IC698CPE040 is the 1.8 GHz Pentium-M controller CPU for the PACSystems RX7i platform. It executes real-time machine and process control, exchanges data with modules across the VME64 backplane, and provides embedded Ethernet and serial communication paths for programming and system integration.
|
64 MB
USER MEMORY
|
|
1.8 GHz
Processor
Pentium-M control engine.
|
64 MB
User memory
Battery-backed program and data area.
|
64 MB
User flash
Non-volatile project storage.
|
10/100
Ethernet
Embedded switched interface.
|
2 ports
Serial
RS-232 and RS-485 services.
|
512
Program blocks
Up to 128 KB per block.
|
| 01 | Execution platform | The 1.8 GHz Pentium-M processor runs real-time logic for machines, material handling and process systems. Floating-point work and larger applications benefit from the higher RX7i processor tier. |
| 02 | Program and data space | The CPU provides 64 MB of battery-backed user memory and 64 MB of non-volatile flash. Memory allocation supports logic, registers, symbolic variables and communication data. |
| 03 | Communications | Embedded 10/100 Mbps Ethernet supports programming and controller data exchange. Serial services include RS-232 and RS-485 paths for supported SNP-X, Serial I/O and Modbus RTU slave operation. |
| 04 | Backplane role | The CPU communicates with RX7i I/O, communication and specialty modules through the VME64 rack backplane. Module location, rack power and project configuration form one validated system. |
| 05 | Programming structure | Applications can use Ladder Diagram, Structured Text, Function Block Diagram and C blocks. The platform supports as many as 512 program blocks with a maximum 128 KB block size. |
| 06 | Thermal requirement | The high-performance CPE040 requires the specified RX7i fan tray and an unobstructed airflow path. Fan status, cabinet temperature and filter condition are operational checks, not optional details. |
|
01
PAC Machine Edition
Builds and stores the control project.
|
02
IC698CPE040
Executes logic and communication services.
|
03
VME64 rack
Connects power, I/O and option modules.
|
04
Ethernet / serial
Links engineering, HMI and peer systems.
|
| RELATED MODEL | PRIMARY DISTINCTION | CAPACITY / MEMORY | SYSTEM ROLE |
| IC698CPE020 | 700 MHz Pentium | 10 MB | Embedded Ethernet, standard CPU |
| IC698CPE030 | 600 MHz Pentium-M | 64 MB | Embedded Ethernet, standard CPU |
| IC698CPE040 | 1.8 GHz Pentium-M | 64 MB | Highest-speed standard RX7i CPU |
| IC698CRE040 | 1.8 GHz Pentium-M | 64 MB | Redundancy CPU role |
|
QUALITY + RESPONSE
Fast, reliable delivery supports urgent automation maintenance.
|
VERIFY + PREPARE
Careful order tracking and part checks protect shutdown schedules.
|
STOCK + DELIVERY
Current and discontinued automation parts are sourced for global customers.
|
| ◇ QUALITY | ⇄ RELIABILITY | ✦ TRANSPARENCY | ☎ CUSTOMER SUPPORT |
| 01 | IC698CPE040: Does IC698CPE040 require a fan tray? | Yes. The 1.8 GHz RX7i CPU depends on the specified forced-air cooling arrangement. Confirm fan operation, airflow clearance and cabinet temperature before service. |
| 02 | IC698CPE040: Can IC698CPE040 replace an IC698CRE040 redundancy CPU? | No direct assumption should be made. CPE040 is a standard CPU while CRE040 is intended for redundancy; project architecture, companion hardware and configuration differ. |
| 03 | IC698CPE040: What should be backed up before replacing IC698CPE040? | Secure the application, hardware configuration, network settings, retained data strategy and current firmware relationship before removing the installed CPU. |
| 04 | IC698CPE040: Which communication paths are built into IC698CPE040? | It includes embedded 10/100 Ethernet plus serial services for RS-232 and RS-485 operation. The enabled protocols and port settings must match the project. |
| 05 | IC698CPE040: What should a buyer verify on an IC698CPE040 quotation? | Confirm the exact catalog number and revision, firmware compatibility, connector condition, memory retention components, fan-tray readiness and whether the existing project can be restored with the installed engineering environment. |
