GE GENIUS I/O
IC660BBS102
115 VAC / 125 VDC · 8-Circuit · Failed Switch Diagnostic
A focused replacement option for isolated Genius I/O applications requiring low leakage and switch-state diagnostics.
|
LOW-LEAK
DIAGNOSTIC I/O |
| GE | IC660BBS102 | Overview Technical Profile Application FAQ Contact |
|
GENIUS LOW-LEAK ISOLATED I/O

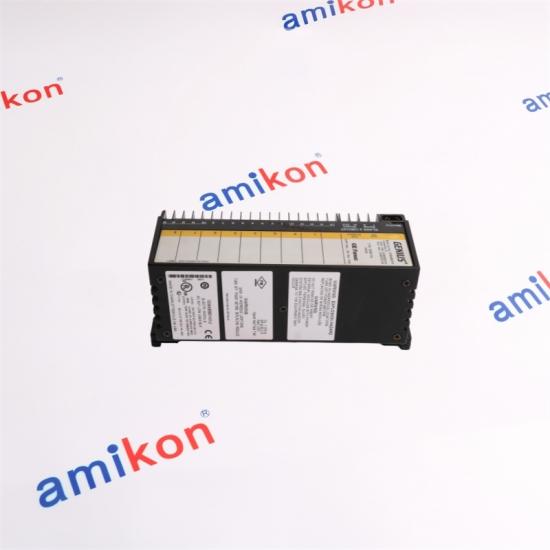

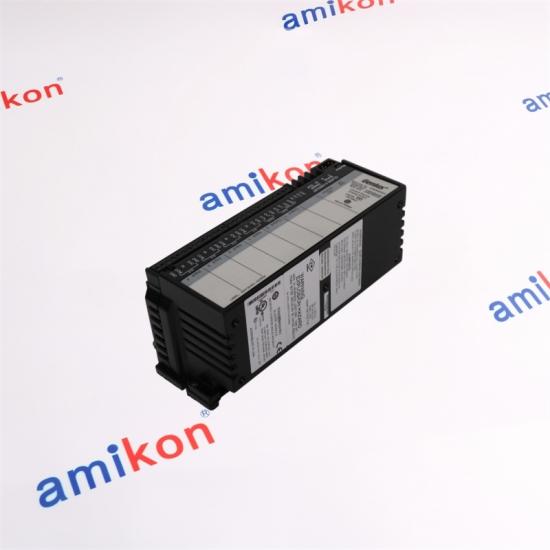

IC660BBS102
115 VAC / 125 VDC · 8-Circuit · Failed Switch Diagnostic
A low-leakage isolated I/O block intended for Genius installations where field isolation and output-state diagnostics are both important.
|
FAST QUOTE
Need BBS102?
Send the exact part number, quantity, destination, required date and machine/system. Sales Manager
Miya zheng |
| Model | IC660BBS102 | Block type | 115 VAC / 125 VDC low-leak isolated I/O |
| Circuit count | 8 configurable I/O circuits | Group structure | 4 isolated groups of 2 circuits |
| Operating voltage | AC 93–132 V / DC 105–132 V | Block isolation | 1500 V |
| Isolation withstand | 250 VAC/VDC continuous | Transient | 2000 V peak / 10 sec |
| AC output | 2 A RMS steady state | DC output | 2 A resistive |
| Input filter | 10–100 ms selectable | Diagnostic | Failed Switch / open wire / overload-related diagnostics |
| Where It Fits
The BBS102 is used in Genius distributed I/O installations requiring 115 VAC / 125 VDC isolated field circuits with diagnostic capability. |
Why Engineers Search It
A replacement search is likely when an isolated I/O point becomes unreliable, an output no longer follows its commanded state, or field leakage becomes a concern. |
Downtime Risk
Because one block handles eight circuits, a failed block can affect several process signals or loads simultaneously and may prevent a machine sequence from completing. |
| Why choose BBS102 instead of a standard isolated eight-point block? | The BBS102 combines isolated eight-point operation with low-leakage characteristics and Failed Switch Diagnostic capability, making those features part of the replacement decision. |
| What does the Failed Switch diagnostic actually indicate? | For an output circuit, it can indicate that the internal switch state does not correspond to the commanded state, helping isolate an output switching problem. |
| How are the eight circuits electrically arranged? | They are arranged as four isolated groups, with two I/O circuits in each group. |
| What current capability should be checked for an output replacement? | The stated steady-state capability is 2 A RMS for AC and 2 A resistive for DC. Actual load type and inrush conditions should be checked against the installation. |
| Is BBS102 a suitable direct substitute whenever BBS100 is unavailable? | They share the same isolated eight-point family architecture, but the low-leakage characteristics and revision differences should be checked against the existing application before substitution. |
|
