Tip Diameter |
8mm |
|
Case Threads |
M10x1 25mm |
|
Armored Cable |
Yes |
|
Model No. |
PR6423/010-010-CN CON021 |
|
Cable Length |
5.0m |
|
Cable End |
LEMO |
n What We Aim to Do
Can't find your exact part number? Our experienced sales and customer service team is always ready to assist. Whether it's a hard-to-locate part number or complex spare parts requirements, we are here to help. We will ensure your production stays up and running.
n What We Are Doing
With twenty years of experience in industrial automation supply, we understand the importance of speed and reliability. That’s why we take pride in being one of the few suppliers offering expedited shipping services, ensuring your operations run smoothly.
n What We Strive to Maintain
Emergency Shipping for Industrial Automation Parts
Downtime wastes your time and money—AMIKON is here to help. As a trusted automation parts supplier, we provide emergency shipping services to quickly deliver critical components to you, minimizing downtime to the greatest extent.
|
Contact us |
||
|
|
|
|
|
Miya zheng |
||
n Description

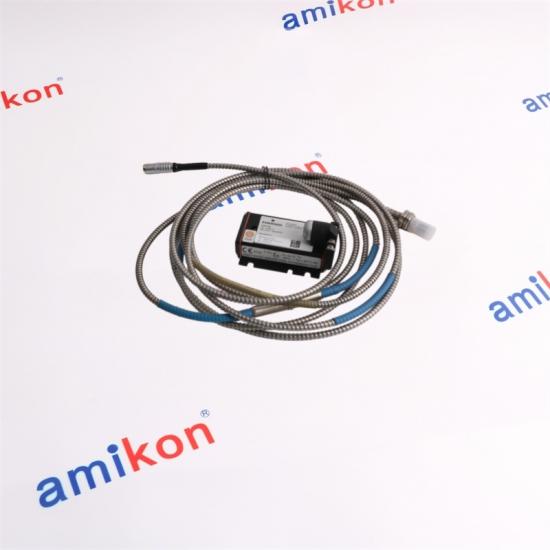

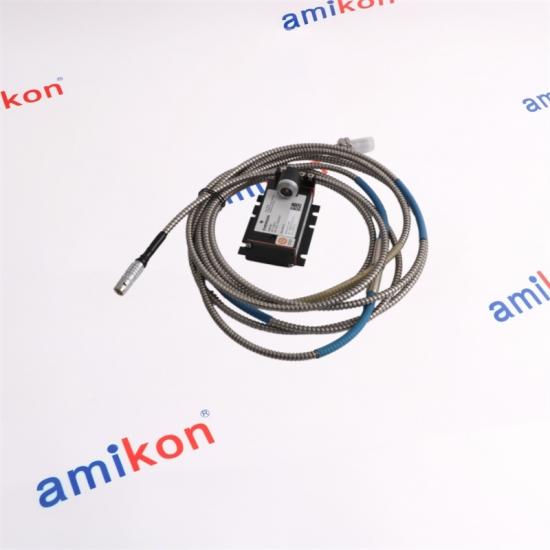

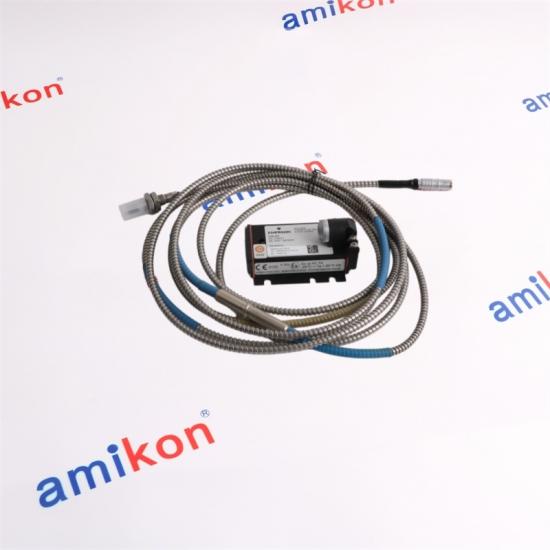

The EPRO PR6423/010-010-CN CON021 is a high-performance eddy current displacement sensor designed for precise, non-contact monitoring of shaft movement in critical rotating machinery applications. Featuring an 8 mm probe tip diameter, the sensor delivers accurate measurements of shaft displacement, vibration, eccentricity, and position, making it an essential component of machinery protection and condition monitoring systems.
This model is equipped with an M10 × 1 threaded housing and a 25 mm thread length, providing secure installation and reliable mechanical alignment in a wide range of industrial equipment. To enhance durability in demanding operating environments, the sensor is supplied with an armored cable, offering additional protection against mechanical damage, abrasion, and harsh installation conditions.
The PR6423/010-010-CN CON021 includes a 5.0-meter integrated cable, enabling flexible installation and convenient connection to signal converters and monitoring systems. The cable terminates with a LEMO connector, ensuring dependable signal transmission, secure electrical connectivity, and seamless integration with compatible EPRO monitoring equipment.
Engineered for continuous operation in industries such as power generation, oil and gas, petrochemical processing, and manufacturing, the PR6423/010-010-CN CON021 provides stable, high-resolution measurement data that supports predictive maintenance programs, early fault detection, and enhanced reliability of turbines, compressors, pumps, fans, and other critical rotating assets.
n Basic Information
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
8 V/mm (203.2 mV/mil) ±5% @ 0 to 45°C (+32 to +113°F) |
|
Deviation from Best Fit Straight Line (DSL) |
±0.025 mm (±1 mil) @ 0 to 45°C (+32 to +113°F) |
|
Minimum Shaft Diameter |
25 mm (0.79 in) |
|
Target Material |
Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140) Standard; Other Materials Available on Request |
|
Protection Class |
IP66, IEC 60529 |
|
Operating Temperature Range (Sensor incl. 1 m Cable) |
-35 to +180°C (-31 to +356°F) |
|
Operating Temperature Range (Cable & Connector) |
-35 to +150°C (-31 to +302°F) |
|
Sensor Tip Material |
PEEK (Polyether Ether Ketone) |
|
Case Material |
Stainless Steel |
|
Cable Material |
PTFE (Polytetrafluoroethylene) |
|
Connector Material |
Brass, Nickel-Plated |
|
Weight (Sensor with 1 m Cable) |
Approx. 100 g (3.53 oz) |

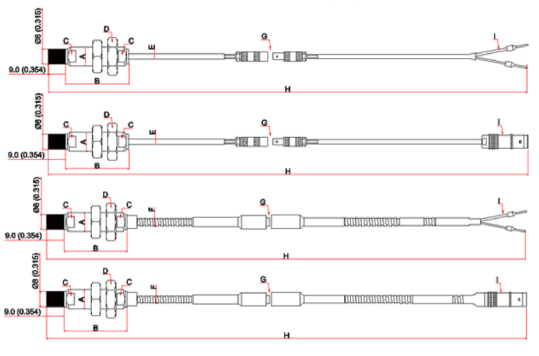

n Dimensions
|
PR6423/xxx-xxx (Standard) |
|
|
|
A.Case thread, M10x1 or 3/8-24UNF |
|
B.SW 11 mm for M10 threads, SW 7/9-16 in for 3/8-24UNF threads |
|
|
C.Standard cable diameter 2.8 mm (0.110 in), minimum bending radius 25 mm (0.984 in) |
|
|
D.Armored cable diameter 6 mm (0.236 in), minimum bending radius 35 mm (1.378 in) |
|
|
E.Optional Adapter Plug after 1m cable from Sensor |
|
|
F.Cable Length (Tolerances 0... +10%) |
|
|
G. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end |
|
n You may have any questions
|
Q1: How does the EPRO PR6423/010-010-CN CON021 ensure exceptional measurement accuracy in high-speed turbomachinery monitoring applications? |
|
The EPRO PR6423/010-010-CN CON021 utilizes advanced eddy current sensing technology to provide precise, non-contact measurement of shaft displacement, vibration, and eccentricity, ensuring reliable condition assessment of critical rotating assets. |
|
Q2: Why is the EPRO PR6423/010-010-CN CON021 particularly advantageous for deployment in demanding industrial environments? |
|
The EPRO PR6423/010-010-CN CON021 features a rugged probe construction and armored cable design, offering enhanced resistance to mechanical stress, vibration, and harsh operating conditions commonly found in power generation and process industries. |
|
Q3: Which machinery health indicators can be effectively monitored using the EPRO PR6423/010-010-CN CON021? |
|
The EPRO PR6423/010-010-CN CON021 is capable of accurately monitoring radial shaft displacement, axial position, rotor eccentricity, dynamic vibration, and shaft movement, providing essential data for machinery protection and performance optimization. |
|
Q4: What makes the EPRO PR6423/010-010-CN CON021 a valuable component in predictive maintenance and reliability-centered maintenance programs? |
|
By continuously delivering high-resolution displacement data, the EPRO PR6423/010-010-CN CON021 enables early detection of rotor imbalance, shaft misalignment, bearing wear, and other developing mechanical anomalies, helping to reduce unplanned downtime and maintenance costs. |
|
Q5: In what ways does the EPRO PR6423/010-010-CN CON021 outperform conventional contact-based sensing technologies in rotating equipment applications? |
|
The EPRO PR6423/010-010-CN CON021 operates on a non-contact measurement principle, eliminating sensor wear while providing superior repeatability, long-term measurement stability, reduced maintenance requirements, and enhanced operational reliability throughout the equipment lifecycle. |
