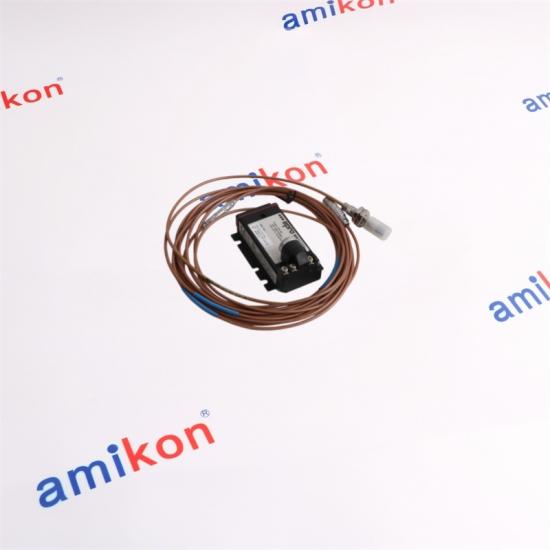

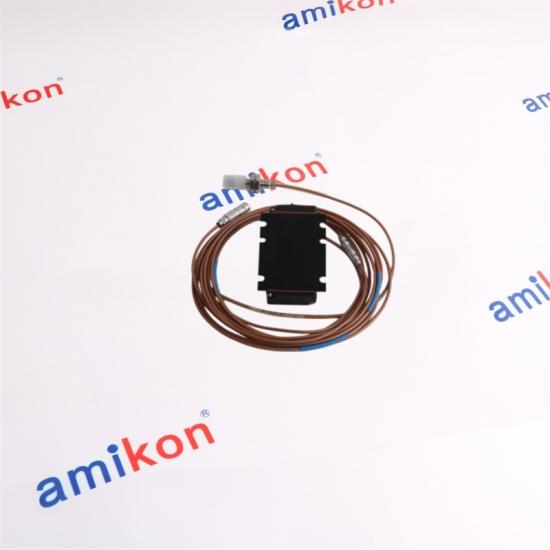

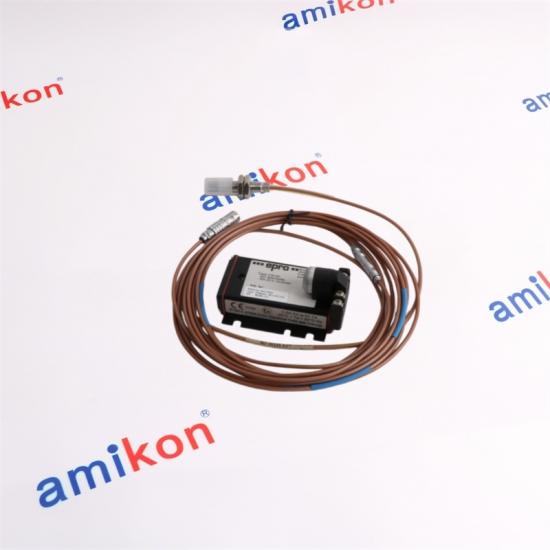

EPRO PR6423/001-010-CN CON021 Eddy Current Displacement Sensor

Rich experience (Over 20 years of sales experience)

Fast delivery (In-stock products usually ship within 1-3 days)

Large inventory (Carrying various brands and maintaining overseas warehouses)

Quality assurance (Products come with a 1-year warranty)

Contact us

Miya zheng

sales@amikon.cn

86-18020776792

Linear Measurement Range

2 mm (80 mils)

Initial Air Gap

0.5 mm (20 mils)

Incremental Scale Factor (ISF)

8 V/mm (203.2 mV/mil) ±5% @ 0 to 45°C (+32 to +113°F)

Deviation from Best Fit Straight Line (DSL)

±0.025 mm (±1 mil) @ 0 to 45°C (+32 to +113°F)

Minimum Shaft Diameter

25 mm (0.79 in)

Target Material

Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140) Standard; Other Materials Available on Request

Protection Class

IP66, IEC 60529

Operating Temperature Range (Sensor incl. 1 m Cable)

-35 to +180°C (-31 to +356°F)

Operating Temperature Range (Cable & Connector)

-35 to +150°C (-31 to +302°F)

Sensor Tip Material

PEEK (Polyether Ether Ketone)

Case Material

Stainless Steel

Cable Material

PTFE (Polytetrafluoroethylene)

Connector Material

Brass, Nickel-Plated

Weight (Sensor with 1 m Cable)

Approx. 100 g (3.53 oz)

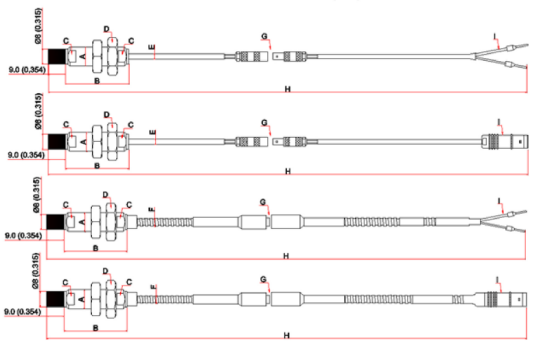

PR6423/xxx-xxx (Standard)

A.Case thread, M10x1 or 3/8-24UNF

B.SW 11 mm for M10 threads, SW 7/9-16 in for 3/8-24UNF threads

C.Standard cable diameter 2.8 mm (0.110 in), minimum bending radius 25 mm (0.984 in)

D.Armored cable diameter 6 mm (0.236 in), minimum bending radius 35 mm (1.378 in)

E.Optional Adapter Plug after 1m cable from Sensor

F.Cable Length (Tolerances 0... +10%)

G. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end

Q1: How does the EPRO PR6423/001-010-CN CON021 optimize measurement precision for critical shaft displacement monitoring applications?

The EPRO PR6423/001-010-CN CON021 utilizes advanced eddy current sensing principles to provide highly accurate, non-contact measurements of shaft position, vibration, and eccentricity, ensuring dependable data acquisition in demanding rotating machinery environments.

Q2: Why is the EPRO PR6423/001-010-CN CON021 considered an effective solution for enhancing predictive maintenance strategies?

The EPRO PR6423/001-010-CN CON021 continuously captures dynamic shaft behavior, enabling maintenance teams to identify early-stage mechanical irregularities such as imbalance, misalignment, rotor instability, and bearing degradation before they evolve into critical failures.

Q3: Which categories of industrial equipment can most effectively leverage the capabilities of the EPRO PR6423/001-010-CN CON021?

The EPRO PR6423/001-010-CN CON021 is ideally suited for steam turbines, gas turbines, hydro turbines, compressors, pumps, fans, and other high-value rotating assets where precise displacement and vibration monitoring are essential for operational continuity.

Q4: What engineering characteristics enable the EPRO PR6423/001-010-CN CON021 to maintain signal stability under challenging operating conditions?

The EPRO PR6423/001-010-CN CON021 incorporates a robust probe structure, high-quality cable materials, and industrial-grade construction that help preserve measurement integrity in environments exposed to temperature fluctuations, vibration, and mechanical stress.

Q5: In what ways does the EPRO PR6423/001-010-CN CON021 provide advantages over traditional contact-based displacement sensing technologies?

The EPRO PR6423/001-010-CN CON021 performs measurements without physical contact with the target surface, eliminating mechanical wear while delivering superior repeatability, enhanced long-term stability, reduced maintenance requirements, and improved system reliability.
