EPRO PR6423/010-130 CON021 Eddy Current Sensor

Rich experience (Over 20 years of sales experience)

Fast delivery (In-stock products usually ship within 1-3 days)

Large inventory (Carrying various brands and maintaining overseas warehouses)

Quality assurance (Products come with a 1-year warranty)

Contact us

Miya zheng

sales@amikon.cn

86-18020776792

Linear Measurement Range

2 mm (80 mils)

Initial Air Gap

0.5 mm (20 mils)

Incremental Scale Factor (ISF)

8 V/mm (203.2 mV/mil) ±5% @ 0 to 45°C (+32 to +113°F)

Deviation from Best Fit Straight Line (DSL)

±0.025 mm (±1 mil) @ 0 to 45°C (+32 to +113°F)

Minimum Shaft Diameter

25 mm (0.79 in)

Target Material

Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140) Standard; Other Materials Available on Request

Protection Class

IP66, IEC 60529

Operating Temperature Range (Sensor incl. 1 m Cable)

-35 to +180°C (-31 to +356°F)

Operating Temperature Range (Cable & Connector)

-35 to +150°C (-31 to +302°F)

Sensor Tip Material

PEEK (Polyether Ether Ketone)

Case Material

Stainless Steel

Cable Material

PTFE (Polytetrafluoroethylene)

Connector Material

Brass, Nickel-Plated

Weight (Sensor with 1 m Cable)

Approx. 100 g (3.53 oz)

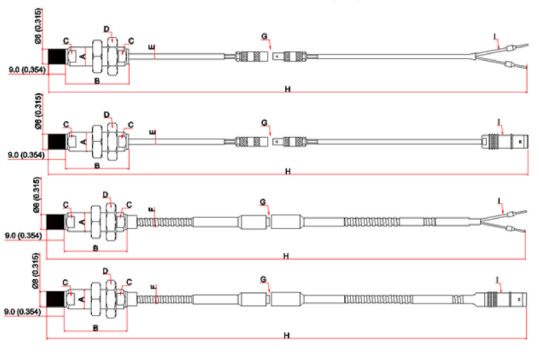

PR6423/xxx-xxx (Standard)

A.Case thread, M10x1 or 3/8-24UNF

B.SW 11 mm for M10 threads, SW 7/9-16 in for 3/8-24UNF threads

C.Standard cable diameter 2.8 mm (0.110 in), minimum bending radius 25 mm (0.984 in)

D.Armored cable diameter 6 mm (0.236 in), minimum bending radius 35 mm (1.378 in)

E.Optional Adapter Plug after 1m cable from Sensor

F.Cable Length (Tolerances 0... +10%)

G. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end

Q1: How does the EPRO PR6423/010-130 CON021 deliver superior measurement integrity in high-speed rotor dynamic applications?

The EPRO PR6423/010-130 CON021 employs advanced eddy current sensing technology to provide highly accurate, non-contact measurements of shaft displacement and vibration, ensuring exceptional signal fidelity in critical rotating machinery.

Q2: Why is the EPRO PR6423/010-130 CON021 frequently selected for sophisticated machinery protection and condition-based maintenance systems?

The EPRO PR6423/010-130 CON021 continuously monitors key shaft parameters, allowing maintenance personnel to detect incipient faults such as rotor imbalance, shaft misalignment, mechanical looseness, and bearing degradation before operational performance is compromised.

Q3: What operational benefits can be achieved by integrating the EPRO PR6423/010-130 CON021 into turbomachinery monitoring architectures?

The EPRO PR6423/010-130 CON021 enhances asset reliability by providing real-time displacement and vibration data, supporting predictive maintenance strategies, reducing unscheduled outages, and optimizing equipment lifecycle management.

Q4: Which environmental and mechanical characteristics enable the EPRO PR6423/010-130 CON021 to perform reliably in demanding industrial settings?

The EPRO PR6423/010-130 CON021 is engineered with a rugged probe assembly, corrosion-resistant materials, and industrial-grade components that maintain measurement stability under elevated temperatures, vibration exposure, and challenging process conditions.

Q5: What differentiates the EPRO PR6423/010-130 CON021 from conventional contact-based displacement monitoring technologies?

Unlike contact sensors that are susceptible to mechanical wear and measurement degradation, the EPRO PR6423/010-130 CON021 utilizes a non-contact operating principle, delivering enhanced durability, greater measurement repeatability, lower maintenance requirements, and long-term operational reliability.
