EPRO PR6426/000-110 CON021 Eddy Current Displacement Sensor

The EPRO PR6426/000-110 CON021 is a robust eddy current displacement sensor designed for non-contact monitoring of shaft displacement and position in critical rotating machinery. This configuration features a threadless sensor body, making it suitable for applications that require installation via a dedicated mounting structure rather than conventional threaded mounting arrangements.

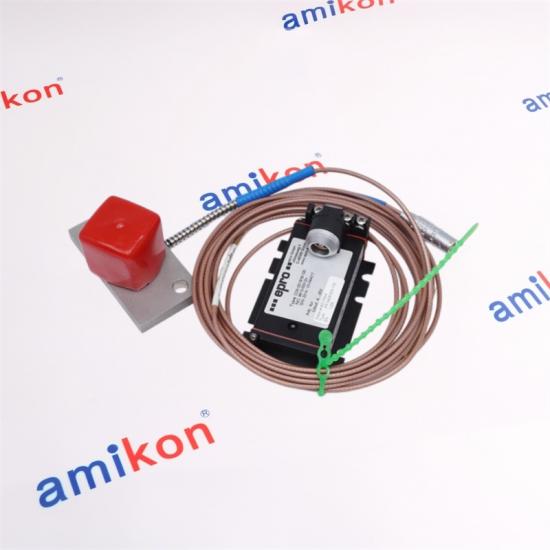

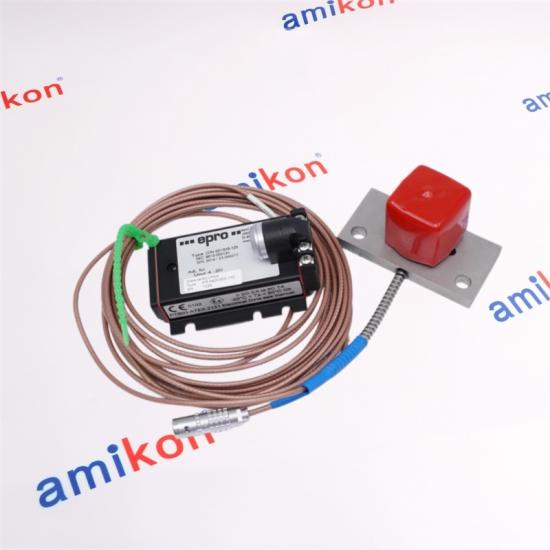

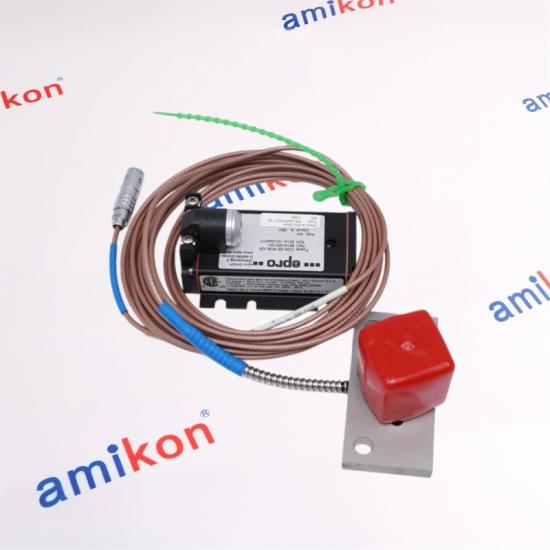

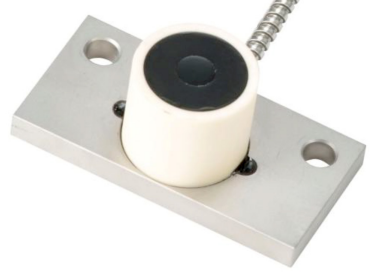

The sensor is supplied with an integrated mounting plate measuring 80 mm × 40 mm, providing a secure and stable installation platform for machinery protection and condition monitoring systems. The configuration is designed without armored cable protection, offering increased flexibility and reduced overall weight in installations where additional mechanical shielding is not required.

The PR6426/000-110 CON021 is also configured without an adaptor plug, simplifying the probe assembly while maintaining reliable measurement performance. It includes a 5-meter cable for convenient connection to signal converters and monitoring equipment located away from the measurement point. The cable is terminated with a LEMO connector, ensuring secure electrical connectivity, excellent signal integrity, and seamless integration with compatible EPRO monitoring systems.

Engineered for continuous operation in demanding industrial environments, the PR6426/000-110 CON021 provides precise, non-contact measurement of shaft displacement, position, and rotor movement. It is widely applied in steam turbines, gas turbines, compressors, pumps, and other critical rotating assets where accurate machinery condition monitoring is essential for predictive maintenance, equipment protection, and operational reliability.

Dynamic Performance

Sensitivity

2 V/mm (50.8 mV/mil), ≤ ±1.5% max

Air Gap (Center)

Approx. 5.5 mm (0.22 in) Nominal

Long-Term Drift

< 0.3%

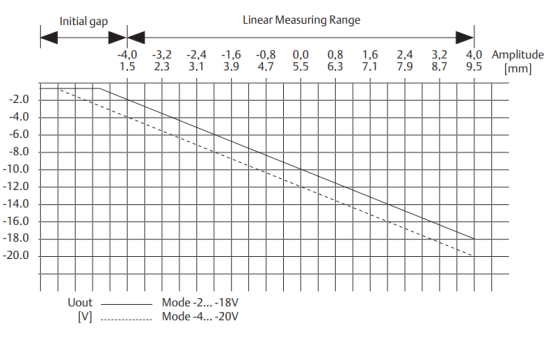

Static Range

±4.0 mm (0.157 in)

Target

Target / Surface Material

Ferromagnetic Steel (42CrMo4 Standard)

Maximum Surface Speed

2,500 m/s (98,425 ips)

Minimum Shaft Diameter

≥ 200 mm (7.87 in)

Environmental

Operating Temperature Range

-35 to 175°C (-31 to 347°F)

Temperature Excursions

< 4 Hours at 200°C (392°F)

Maximum Cable Temperature

200°C (392°F)

Temperature Error (Zero Point)

-0.3% / 100°K @ +23 to 100°C

Temperature Error (Sensitivity)

< 0.15% / 10°K @ +23 to 100°C

Pressure Resistance to Sensor Head

6,500 hPa (94 psi)

Shock & Vibration Resistance

5 g (49.05 m/s²) @ 60 Hz @ 25°C (77°F)

Physical

Sleeve Material

Stainless Steel

Cable Material

PTFE

Weight (Sensor & 1 m Cable, No Armor)

Approx. 800 g (28.22 oz)

Q1: How does the EPRO PR6426/000-110 CON021 maintain exceptional measurement fidelity when monitoring large-diameter shafts in heavy-duty turbomachinery?

The EPRO PR6426/000-110 CON021 is engineered with advanced eddy current sensing technology and an extended measurement range, enabling highly accurate non-contact monitoring of shaft displacement, position, and dynamic movement in large rotating assets.

Q2: Why is the EPRO PR6426/000-110 CON021 particularly well-suited for deployment in high-temperature industrial operating environments?

The EPRO PR6426/000-110 CON021 is designed to withstand elevated temperatures while maintaining stable signal characteristics, making it an ideal solution for turbines, compressors, and other process-critical equipment exposed to demanding thermal conditions.

Q3: Which machinery condition indicators can the EPRO PR6426/000-110 CON021 precisely quantify to support advanced reliability programs?

The EPRO PR6426/000-110 CON021 can accurately monitor shaft displacement, rotor position, eccentricity, thermal growth, and vibration-related movement, providing essential diagnostic information for machinery protection and condition-based maintenance systems.

Q4: What engineering features enable the EPRO PR6426/000-110 CON021 to deliver long-term operational stability in mission-critical applications?

The EPRO PR6426/000-110 CON021 incorporates a rugged stainless-steel probe assembly, high-temperature-resistant cable materials, and a non-contact measurement principle that minimizes wear while ensuring consistent measurement repeatability over extended service intervals.

Q5: How does the EPRO PR6426/000-110 CON021 contribute to reducing operational risk and unplanned equipment outages?

By supplying continuous, high-resolution displacement data, the EPRO PR6426/000-110 CON021 allows maintenance personnel to detect developing faults such as rotor imbalance, shaft misalignment, excessive runout, and bearing-related abnormalities at an early stage, helping to prevent costly downtime and improve asset availability.
