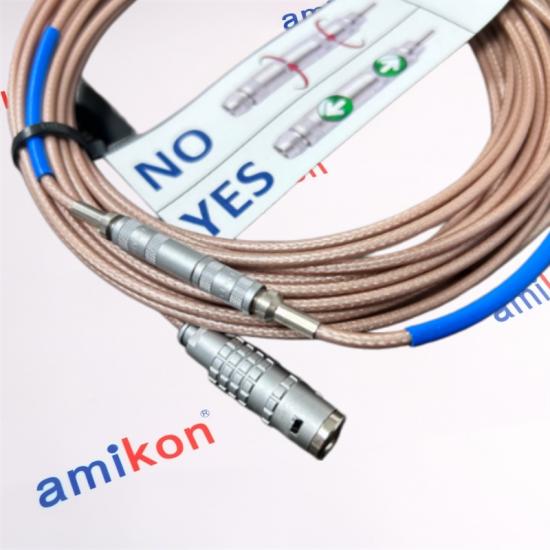

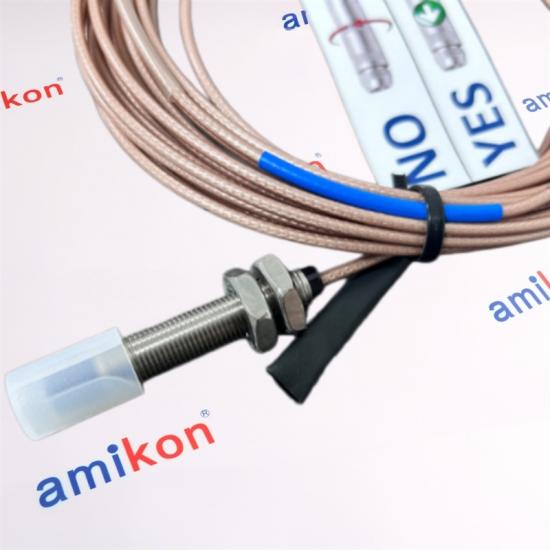

EPRO PR6423/002-030 Eddy Current Sensor

Industrial rotating machinery operates within a constantly changing mechanical environment. Variations in load, temperature, lubrication conditions, and rotational speed can all influence shaft behavior. The EPRO PR6423/002-030 is designed to provide a precise view of these mechanical changes by monitoring shaft movement at the source rather than relying solely on external vibration measurements.

Built on eddy current sensing technology, the probe generates a high-frequency electromagnetic field that interacts with a conductive target surface. Any change in the distance between the probe tip and the rotating shaft is converted into an electrical signal, allowing maintenance personnel to observe machine movement with exceptional consistency and repeatability.

The sensor is commonly incorporated into machinery health management systems where long-term operational stability is essential and equipment failures carry significant production or safety consequences.

l Direct Observation of Shaft Motion

Rather than measuring the vibration transmitted through machine structures, the PR6423/002-030 observes the movement of the shaft itself. This provides a more direct indication of rotor condition and dynamic behavior.

l Continuous Mechanical Assessment

The sensor supplies uninterrupted measurement data throughout all operating states, including startup, shutdown, load transitions, and steady-state operation.

l Stable Measurement Performance

The electromagnetic measurement principle allows the sensor to maintain reliable output without being affected by mechanical wear or contact-related degradation.

l Adapted for Industrial Environments

Its rugged mechanical construction enables installation in areas exposed to elevated temperatures, vibration, humidity, and process contaminants.

l Valuable for Asset Lifecycle Management

The data generated by the sensor can be used to establish performance baselines, evaluate equipment aging trends, and support long-term maintenance planning.

Model

PR6423/002-030

Technology

Eddy Current Measurement

Probe Diameter

8 mm

Measuring Range

2 mm

Sensitivity

8 V/mm

Initial Gap

0.5 mm

Minimum Target Diameter

25 mm

Housing Material

Stainless Steel

Sensor Tip Material

PEEK

Thread Size

M10 × 1

Protection Rating

IP66

Operating Temperature

-35°C to +200°C

Cable Material

PTFE

Measurement Type

Relative Shaft Displacement

The PR6423/002-030 helps maintenance and reliability teams understand how rotating components behave under real operating conditions.

Typical observations include:

l Rotor centerline movement

l Dynamic shaft displacement

l Relative shaft vibration

l Axial movement trends

l Rotor eccentricity development

l Thermal expansion effects

l Bearing clearance variation

l Shaft stability characteristics

These parameters contribute to a broader understanding of machine condition than vibration values alone.

l High-Speed Turbine Systems

Monitoring rotor movement in turbine applications requires measurement technologies capable of detecting extremely small positional changes. The PR6423/002-030 is often used to provide this level of visibility.

l Compressor Reliability Programs

In compressor trains, even minor shaft movement changes can indicate developing mechanical issues. Continuous displacement monitoring supports proactive maintenance decisions.

l Generator Monitoring

Long-term observation of shaft behavior helps operators maintain machine efficiency and reduce the risk of unplanned outages.

l Heavy-Duty Motor Installations

The sensor assists engineers in evaluating alignment quality, bearing performance, and overall rotor stability.

l Critical Process Equipment

In industries where downtime is expensive, continuous shaft monitoring contributes to improved operational predictability.

Instead of waiting for equipment failures to reveal themselves, organizations can use displacement data to identify abnormal trends early.

Potential benefits include:

l Better understanding of machine operating conditions

l Earlier recognition of mechanical deterioration

l Reduced maintenance uncertainty

l Improved planning of shutdown activities

l Increased confidence in equipment reliability

l Enhanced utilization of predictive maintenance strategies

l Why do some engineers prefer displacement monitoring over vibration monitoring?

Displacement monitoring focuses directly on rotor movement. Since many machinery problems originate at the shaft level, this measurement often reveals developing issues before they become apparent in casing vibration signals.

l Can the PR6423/002-030 assist with root-cause investigations?

Yes. Historical displacement data can help engineers determine whether abnormal machine behavior is linked to alignment changes, rotor instability, bearing wear, thermal effects, or other mechanical influences.

l What makes eddy current technology suitable for rotating equipment?

Its non-contact operating principle allows highly repeatable measurements without introducing friction, wear, or additional mechanical loading to the machine.

l Is the sensor only useful during abnormal operating conditions?

No. Continuous monitoring during normal operation is equally important because it establishes baseline behavior that can later be compared against changing machine conditions.

l How does displacement information support maintenance planning?

Trend analysis allows maintenance teams to observe gradual changes over time, making it easier to schedule interventions before equipment performance deteriorates significantly.
