EPRO PR6423/10R-030-CN CON021 Eddy Current Sensor

EMERSON EPRO PR6423/10R-030-CN CON021

Product Overview

Rotating equipment rarely fails without warning. In most cases, abnormal shaft movement appears long before a breakdown occurs. The PR6423/10R-030-CN CON021 is designed to capture these early mechanical changes by continuously observing the relationship between a rotating shaft and its surrounding machine structure.

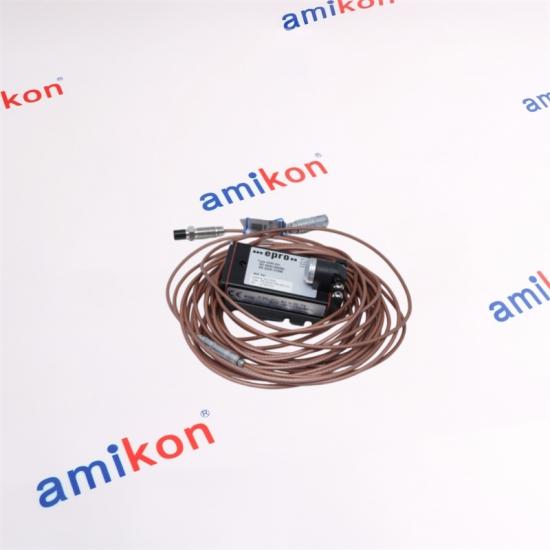

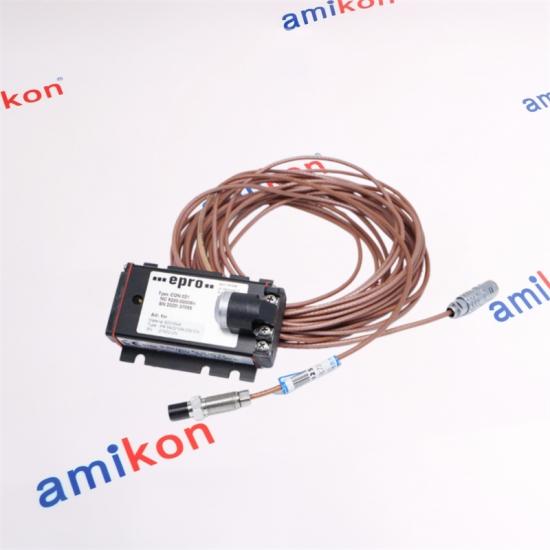

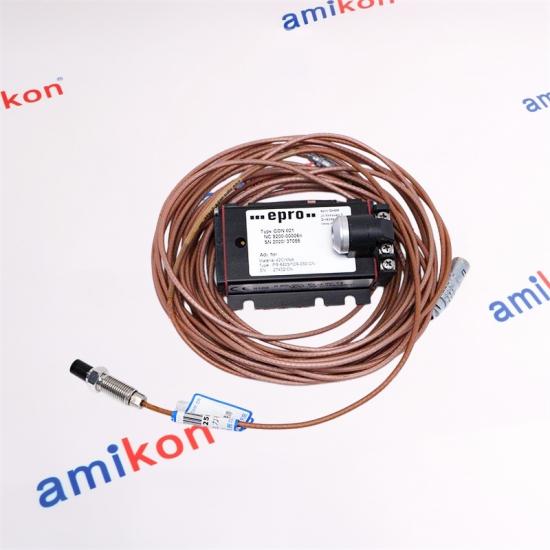

The system combines an eddy current sensing probe with a dedicated signal conversion unit, creating a measurement solution capable of tracking microscopic shaft movements during operation. By translating mechanical behavior into actionable data, it enables engineers to evaluate machine stability, identify developing faults, and maintain operational confidence in critical production assets.

Whether installed on a turbine train, compressor string, or large industrial motor, the sensor provides valuable insight into the dynamic condition of equipment that cannot be obtained through routine visual inspections.

Engineering Value

1. Understanding Rotor Behavior

Every rotating machine experiences movement during operation. The challenge is determining whether that movement remains within acceptable limits. The PR6423 system provides continuous visibility into rotor dynamics, helping engineers distinguish normal operating characteristics from emerging mechanical concerns.

2. Supporting Reliability-Centered Maintenance

Modern maintenance strategies increasingly rely on condition data rather than fixed service intervals. By supplying accurate displacement information, the sensor allows maintenance activities to be scheduled according to actual machine condition.

3. Reducing Diagnostic Uncertainty

Unexpected vibration increases often leave maintenance teams searching for the root cause. Continuous shaft position monitoring creates a historical record that simplifies troubleshooting and accelerates decision-making.

4. Protecting High-Value Equipment

Large turbomachinery assets represent significant operational investments. Monitoring shaft displacement helps prevent secondary damage caused by prolonged operation under abnormal mechanical conditions.

Technical Characteristics

Typical Monitoring Objectives

The PR6423 system is frequently selected when operators need to observe:

l Rotor centerline movement

l Radial shaft displacement

l Relative shaft vibration

l Axial shaft position

l Rotor eccentricity

l Thermal expansion effects

l Dynamic shaft stability

l Bearing-related movement patterns

Rather than focusing on a single parameter, the sensor contributes to a broader understanding of machine behavior throughout the operating cycle.

Industries Benefiting From Continuous Shaft Monitoring

1. Power Generation

Turbine-generator sets operate under demanding mechanical and thermal conditions. Continuous shaft observation helps maintain stable performance while reducing the risk of forced outages.

2. Hydrocarbon Processing

Compressors and pumps are often among the most critical assets in refining and petrochemical facilities. Monitoring displacement trends supports both reliability and production continuity.

3. Heavy Manufacturing

Large motors, fans, and gear-driven systems benefit from real-time condition information that helps prevent unexpected interruptions to production schedules.

Marine and Offshore Operations

Equipment installed in remote or difficult-to-access environments requires dependable condition monitoring solutions capable of supporting long maintenance intervals.

Why Shaft Displacement Matters

Many mechanical defects begin as subtle changes in rotor position. Before vibration reaches alarm levels, a machine may already exhibit small displacement deviations caused by:

l Rotor imbalance

l Coupling misalignment

l Bearing degradation

l Thermal distortion

l Foundation movement

l Mechanical looseness

l Rotor-to-stator interaction

Monitoring displacement therefore provides an opportunity to identify problems during their earliest stages, when corrective actions are typically less expensive and less disruptive.

FAQ

Q:How is shaft displacement information different from vibration data?

Vibration monitoring focuses on dynamic movement, while displacement monitoring reveals the actual position and movement of the shaft relative to the machine casing. Together, they provide a more complete picture of machine condition.

Q:Why is eddy current technology widely used in turbomachinery?

Because it delivers highly stable measurements without physical contact, making it suitable for high-speed equipment where reliability and measurement consistency are critical.

Q:Can this sensor help prevent unplanned shutdowns?

Yes. Continuous monitoring allows maintenance teams to identify abnormal trends before they evolve into failures that require emergency intervention.

Q:What operational decisions can be supported by displacement measurements?

Engineers can use displacement data to evaluate machine stability, verify alignment conditions, assess bearing performance, and determine whether equipment is operating within acceptable mechanical limits.

Q:Is the PR6423/10R-030-CN CON021 intended only for protection systems?

No. In addition to machinery protection, the sensor is widely used for condition assessment, performance analysis, troubleshooting, and long-term asset management programs.
