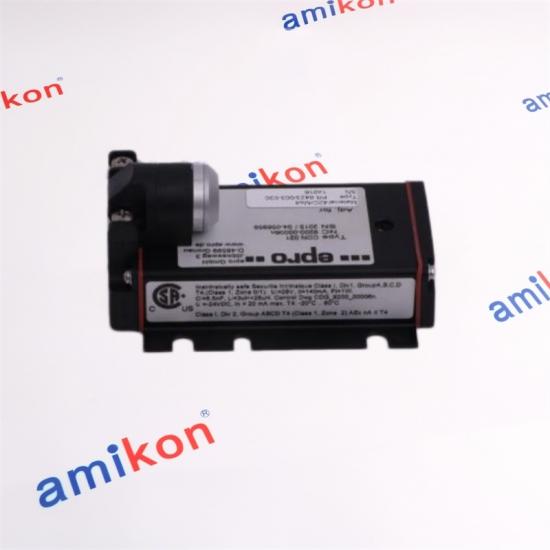

EPRO PR6423/101‑101 CON031 Eddy Current Sensor

Inquiry For Miya

Sales Mnager：Miya

Email：sales@amikon.cn

Mobile(WhatsApp)：86-18020776792

Believe amikon can do better

Since its inception, amikon has established unique global sourcing relationships with global distributors, allowing us to provide spare parts solutions at a lower cost than our competitors. Thereby making our customers' businesses more competitive. We offer a wide range of spare parts. This helps our customers get a higher return on investment and win more business! We have more than 2,000,000 satisfied partners around the world, and we are constantly looking for new ways to bring value to our partners. We not only sell products, but also provide a complete set of pre-sales and after-sales value-added services, allowing our customers to keep costs low and achieve the highest return on investment.

Within any rotating machine, the shaft is the first component to reflect changes in mechanical condition. Long before a bearing fails or vibration alarms are triggered, subtle shifts in rotor position can reveal developing issues. The EPRO PR6423/101-101 CON031 is designed to capture these changes with a high degree of accuracy, enabling operators to understand what is happening inside the machine while it remains in service.

This sensing system combines a displacement probe and signal conditioning electronics to create a continuous source of mechanical performance data. Instead of focusing solely on vibration severity, it provides insight into how the rotor behaves under actual operating conditions, including thermal expansion, load variation, speed fluctuations, and process disturbances.

For facilities that depend on the uninterrupted operation of turbines, compressors, generators, or large motors, the ability to observe shaft behavior in real time can significantly improve maintenance decision-making and reduce operational uncertainty.

Observes Mechanical Change at Its Origin

Most machine faults begin with small variations in rotor movement. Monitoring displacement allows engineers to identify these variations before they develop into more serious operational concerns.

Supports Equipment Performance Evaluation

The sensor helps determine whether a machine is operating within its intended mechanical envelope by continuously measuring shaft position relative to surrounding components.

Improves Understanding of Machine Health

Historical displacement trends provide valuable information about how equipment condition evolves over time, supporting more informed maintenance planning.

Maintains Measurement Integrity Over Long Periods

The non-contact measurement principle avoids physical wear between the sensing element and the rotating target, ensuring stable performance throughout extended operating cycles.

Suitable for Critical Asset Monitoring

The system is particularly effective in applications where machinery availability directly influences production efficiency and operating costs.

Model

PR6423/101-101 CON031

Product Type

Eddy Current Displacement Measurement System

Probe Series

PR6423

Converter Series

CON031

Sensing Method

Electromagnetic Eddy Current

Probe Diameter

8 mm

Measurement Range

2 mm

Sensitivity

8 V/mm

Frequency Range

Up to 20 kHz

Housing Material

Stainless Steel

Protection Rating

IP66 (Probe)

Installation Method

Fixed Mounting

Output Type

Dynamic and Static Signal Output

Application

Online Machinery Monitoring

The PR6423/101-101 CON031 is frequently applied where engineers need visibility into:

l Thermal growth effects

l Dynamic machine response

l Rotor stability characteristics

l Startup and shutdown behavior

Rather than serving as a simple sensor, it acts as a source of operational intelligence for machinery diagnostics.

Turbine Trains

Used to evaluate rotor behavior under changing thermal and mechanical loads while supporting equipment reliability objectives.

Compressor Systems

Provides displacement information that assists in identifying instability, imbalance, and alignment-related concerns.

Electrical Generation Assets

Helps maintain stable operation by supplying continuous information regarding shaft movement and machine condition.

Industrial Process Equipment

Supports reliability programs in facilities where equipment downtime may result in production losses or process interruptions.

Heavy-Duty Drive Systems

Offers valuable insights into the operating condition of large motors, gearboxes, and auxiliary rotating machinery.

Organizations utilizing continuous displacement monitoring often gain benefits beyond fault detection alone.

These may include:

l Improved maintenance forecasting

l Better utilization of maintenance resources

l Increased confidence in asset condition

l Faster diagnosis of mechanical anomalies

l Reduced risk of unexpected equipment stoppages

l More effective long-term reliability planning

l Enhanced understanding of machine operating behavior

The result is a more proactive approach to equipment management, where decisions are guided by actual machine condition rather than assumptions or fixed maintenance schedules.

Why is shaft movement considered a valuable indicator of machine condition?

Because many mechanical issues influence rotor position before they significantly affect overall vibration levels. Monitoring displacement helps reveal these early-stage changes.

What information can displacement trends provide over time?

Trend data can indicate gradual wear, alignment shifts, thermal effects, bearing condition changes, and other factors that influence machine performance.

Is this technology only useful for fault detection?

No. It is also widely used for performance evaluation, machine commissioning, operational studies, and long-term reliability analysis.

How does non-contact sensing benefit industrial applications?

The absence of physical contact eliminates sensor wear while maintaining consistent measurement quality during continuous operation.

Which industries commonly implement this type of monitoring?

Power generation, petrochemical processing, oil and gas production, mining, marine engineering, and heavy manufacturing all rely on displacement monitoring to support critical rotating equipment.
