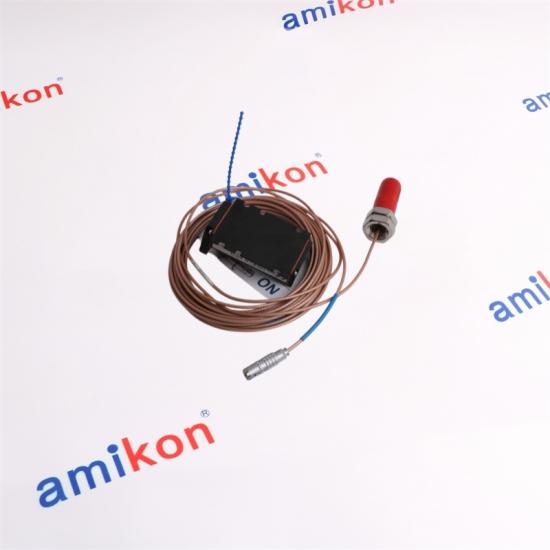

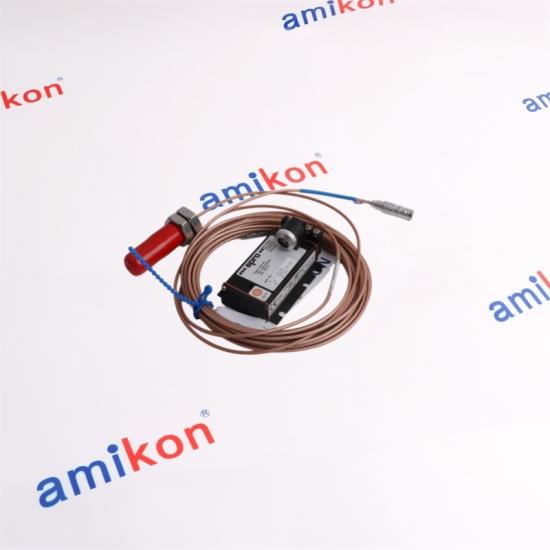

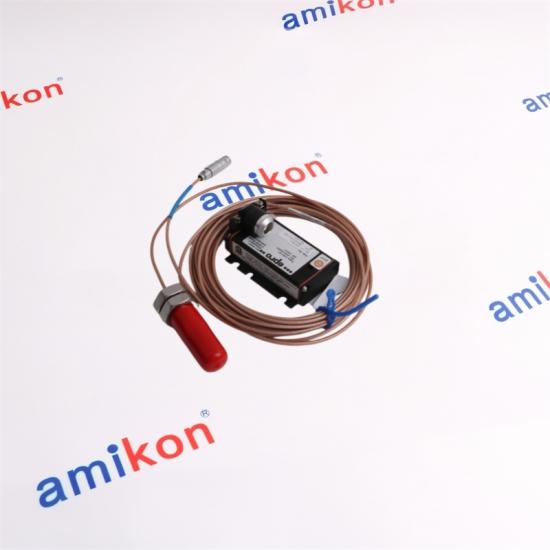

A 16 mm non-contact sensor for critical turbines, compressors, pumps and fans where rotor displacement, position, eccentricity and speed must be observed directly.
| 16 MM SENSOR |
· | ±2 MM STATIC |
· | 4 V/MM |
· | 80+ MM SHAFT |
| 01 | Product type | Non-contact eddy-current sensor |
| 02 | Sensor family | PR6424, 16 mm |
| 03 | Complete order code | PR6424/003-130 |
| 04 | Measurement duties | Radial and axial dynamic displacement, position, eccentricity and speed or key |
| 05 | Static measurement range | ±2.0 mm |
| 06 | Dynamic range | 0 to 1,000 μm |
| 07 | Nominal center air gap | Approximately 2.7 mm |
| 08 | Sensitivity | 4 V/mm; 101.6 mV/mil |
| 09 | Standard target | Ferromagnetic steel 42CrMo4 |
| 10 | Minimum shaft diameter | 80 mm |
| 11 | Maximum surface speed | 2,500 m/s |
| 12 | Operating temperature | −35 to +150 °C |
| 13 | Pressure resistance at head | 10,000 hPa / 145 psi |
| 14 | System rule | Use with its matched cable and compatible converter as a calibrated chain |
| Need to match PR6424/003-130 to an installed converter? | SEND THE COMPLETE CHAIN |
|
1
PR6424/003-130
16 mm · ±2 mm · 4 V/mm
Selected medium-range sensor
|
2
PR6423 family
8 mm · 2 mm range · 8 V/mm
Smaller probe and target
|
3
PR6426 family
32 mm · ±4 mm · 2 V/mm
Larger measurement field
|
4
CON converter family
Matched oscillator and output stage
Produces monitor-ready voltage
|
A compatible system is defined by the sensor, total cable arrangement, converter, target material, mechanical gap and monitor scale—not by connector fit alone.
|
◎
20 Years of Supply Experience
Quality-focused sourcing for current and hard-to-find industrial automation parts. |
|
|
⌁
Emergency Dispatch Support
Fast communication helps maintenance teams respond to downtime pressure. |
|
|
◇
Exact-Part Assistance
Share the full code, photographs and installed-system details for an organized inquiry. |
| Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the specific reason. Resolution follows receipt and inspection. | Return-related shipping costs are paid by the buyer. |
| 01 |
PR6424/003-130 — What must match when replacing PR6424/003-130?
Confirm the entire suffix, mechanical length, thread, cable construction, cable end, total chain length and the paired converter.
|
| 02 |
PR6424/003-130 — Why can PR6424/003-130 not be treated as a larger PR6423?
PR6424 uses a different sensor diameter, sensitivity, air gap, target size and measurement range. Monitor scaling and mechanical installation must match.
|
| 03 |
PR6424/003-130 — What target diameter is required for PR6424/003-130?
Published PR6424 performance uses a shaft diameter of at least 80 mm with standard 42CrMo4 ferromagnetic steel.
|
| 04 |
PR6424/003-130 — What field checks follow PR6424/003-130 installation?
Confirm probe alignment, center gap, cable clearance, gap voltage, sensitivity, monitor scaling, alarms and machine-specific validation.
|
| 05 |
PR6424/003-130 — Does PR6424/003-130 measure through the bearing housing?
It is intended to observe the conductive target directly without contact. Mounting geometry must provide the specified field and target clearance.
|
