SHAFT VIBRATION · POSITION · SPEED

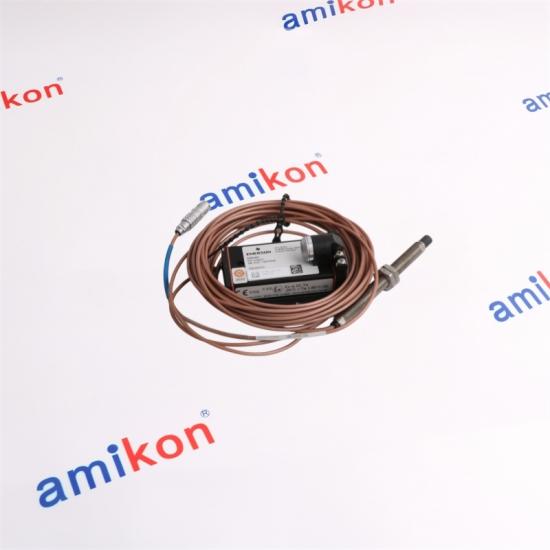

PR6423/008-110
8 mm Eddy Current Sensor
Non-contact monitoring of radial or axial shaft motion on critical rotating machinery.
REQUEST PRICE & LEAD TIME |
|
|
01
|
PRODUCT OVERVIEW
Measurement or Communication Role
|
| A non-contact eddy-current probe configuration for monitoring radial or axial shaft motion on critical rotating machinery. Selection must preserve the complete product code and the surrounding mechanical, electrical and system configuration. | EXACT CODE PR6423/008-110 |
|
02
|
TECHNICAL SPECIFICATIONS
Key Configuration Values
|
| Sensor family | PR6423, 8 mm eddy-current probe |
| Linear measuring range | 2 mm (80 mils) |
| Initial air gap | 0.5 mm (20 mils) |
| Incremental scale factor | 8 V/mm (203.2 mV/mil), matched measuring chain |
| Minimum shaft diameter | 25 mm |
| Target material | 42CrMo4 / AISI 4140 ferromagnetic steel |
| Protection class | IP66 |
| Sensor and first 1 m cable | −35 to +180 °C |
| Cable and connector | −35 to +150 °C |
| Approximate mass | 100 g with 1 m cable |
|
03
|
FUNCTIONAL ROLE & SYSTEM INTEGRATION
Signal Path
|
|
01
Conductive shaft |
02
PR6423 probe field |
03
Matched converter |
04
Protection or monitoring rack |
|
Exact-code matching and responsive quotation support.
|
Inspection and configuration confirmation before dispatch.
|
Urgent international delivery coordination when time matters.
|
|
05
|
FREQUENTLY ASKED QUESTIONS
Selection and Installation Checks
|
| Q1 |
What does the probe measure?
It measures relative shaft displacement without mechanical contact and supports vibration, position, eccentricity and speed applications.
|
| Q2 |
Can the probe work alone?
No. It forms a calibrated measuring chain with the correct converter and total cable length.
|
| Q3 |
Can another PR6423 suffix be installed directly?
Do not assume interchangeability. Match probe geometry, connector, cable length, converter and machine mounting.
|
| Q4 |
What must be checked during installation?
Confirm target material, initial gap, bracket rigidity, cable routing and connector protection.
|
| Send the exact code for a quotation | CONTACT MIYA ZHENG |
|
06
|
RECOMMENDED MODELS
Additional Industrial Automation Products
|
|
07
|
ORDERING INFORMATION
Confirm Before Dispatch
|
| Provide the complete product code, quantity, required condition, destination and visible revision or style marking. | Returns and replacement Contact us within 7 days of receipt. Returned items must remain in original condition and include a clear reason. Return shipping costs are paid by the buyer. |
