| EMERSON / EPRO | Overview Specifications Integration Related Models FAQ |
|
01
|
PRODUCT OVERVIEW
Measurement or Communication Role
|

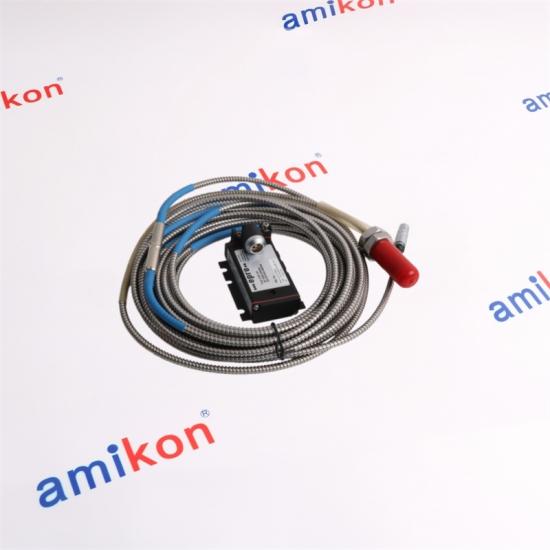

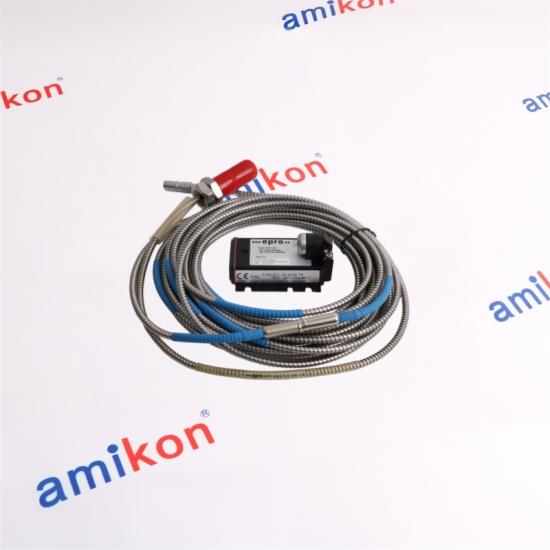

| A 16 mm non-contact eddy-current sensor configuration intended for vibration and position measurement on large rotating shafts. Selection must preserve the complete product code and the surrounding mechanical, electrical and system configuration. | EXACT CODE PR6424/010-040 |
|
02
|
TECHNICAL SPECIFICATIONS
Key Configuration Values
|
| Sensor family | PR6424, 16 mm eddy-current probe |
| Tip diameter | 16 mm |
| Position measuring range | ±2.0 mm |
| Vibration range | 100 to 1000 μm peak-to-peak |
| Frequency range | 0 to 20 kHz |
| Incremental scale factor | 4 V/mm (101.6 mV/mil), matched measuring chain |
| Body thread | M18 × 1.5 |
| Recommended shaft diameter | 80 mm or larger |
| Nominal temperature range | −35 to +120 °C |
| Probe-head pressure resistance | 10,000 hPa |
|
03
|
FUNCTIONAL ROLE & SYSTEM INTEGRATION
Signal Path
|
|
01
Large rotating shaft |
02
PR6424 sensing tip |
03
Matched signal converter |
04
Machinery protection channel |
|
Exact-code matching and responsive quotation support.
|
Inspection and configuration confirmation before dispatch.
|
Urgent international delivery coordination when time matters.
|
|
05
|
FREQUENTLY ASKED QUESTIONS
Selection and Installation Checks
|
| Q1 |
Why use a 16 mm sensor?
Its measurement geometry is suited to larger shafts and an extended position range.
|
| Q2 |
Is sensitivity a probe-only value?
The stated response applies to the correctly matched probe, cable and converter measuring chain.
|
| Q3 |
Can PR6423 replace PR6424?
No direct substitution should be assumed because tip size, thread, range, sensitivity and shaft requirements differ.
|
| Q4 |
What should be matched before ordering?
Confirm full suffix, thread, probe length, cable, connector, system length and converter type.
|
| Send the exact code for a quotation | CONTACT MIYA ZHENG |
|
06
|
RECOMMENDED MODELS
Additional Industrial Automation Products
|
|
07
|
ORDERING INFORMATION
Confirm Before Dispatch
|
| Provide the complete product code, quantity, required condition, destination and visible revision or style marking. | Returns and replacement Contact us within 7 days of receipt. Returned items must remain in original condition and include a clear reason. Return shipping costs are paid by the buyer. |
