PRODUCT OVERVIEW
Measurement or Communication Role
|

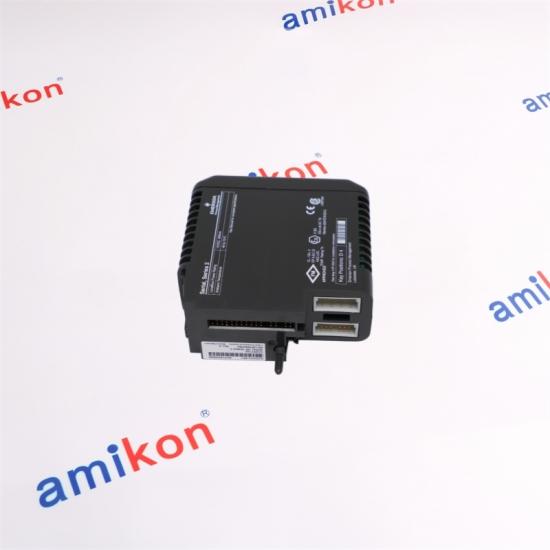

| A two-port DeltaV M-series serial interface card used to exchange process and device data with supported external serial equipment. Selection must preserve the complete product code and the surrounding mechanical, electrical and system configuration. | EXACT CODE KJ3241X1-BA2 |
|
02
|
TECHNICAL SPECIFICATIONS
Key Configuration Values
|
| Model | KJ3241X1-BA2 |
| Product class | M-series Serial Interface Series 2 card |
| Serial ports | 2 |
| Local bus power | 12 VDC at 300 mA |
| Ambient temperature | −40 to +70 °C |
| Relative humidity | 5 to 95%, non-condensing |
| Shock | 10 g half-sine for 11 ms |
| Vibration | 1 mm p-p, 2–13.2 Hz; 0.7 g, 13.2–150 Hz |
| Airborne contaminants | ISA-S71.04 Class G3 |
| Terminal-block key position | D4 |
|
03
|
FUNCTIONAL ROLE & SYSTEM INTEGRATION
Signal Path
|
|
01
External serial device |
02
Configured serial link |
03
KJ3241X1-BA2 card |
04
DeltaV controller database |
|
Exact-code matching and responsive quotation support.
|
Inspection and configuration confirmation before dispatch.
|
Urgent international delivery coordination when time matters.
|
|
05
|
FREQUENTLY ASKED QUESTIONS
Selection and Installation Checks
|
| Q1 |
What is the main function of the card?
It provides two serial communication ports between DeltaV and supported external serial devices.
|
| Q2 |
Does every card use the same protocol?
Protocol and driver selection must match the connected device and configured DeltaV application.
|
| Q3 |
Can it be removed with power energized?
System and applicable field power must be removed unless the approved installation conditions explicitly permit service.
|
| Q4 |
Does the card require calibration?
No calibration is required and the card contains no user-serviceable parts.
|
| Send the exact code for a quotation | CONTACT MIYA ZHENG |
|
06
|
RECOMMENDED MODELS
Additional Industrial Automation Products
|
|
07
|
ORDERING INFORMATION
Confirm Before Dispatch
|
| Provide the complete product code, quantity, required condition, destination and visible revision or style marking. | Returns and replacement Contact us within 7 days of receipt. Returned items must remain in original condition and include a clear reason. Return shipping costs are paid by the buyer. |
