| EMERSON · PR6423/005-110 | PRODUCTSYSTEM FITSUPPLYFAQMODELS |

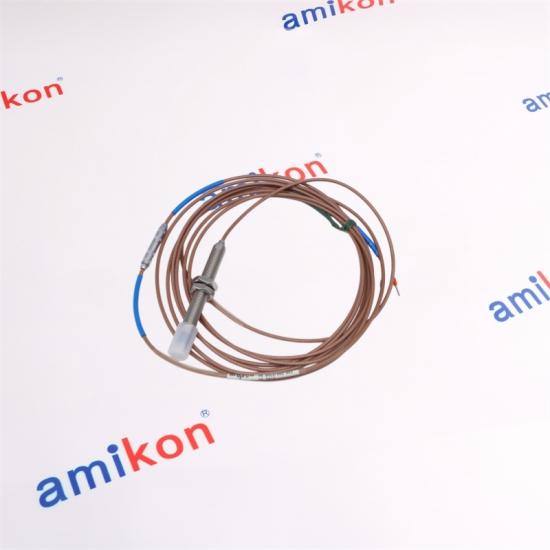

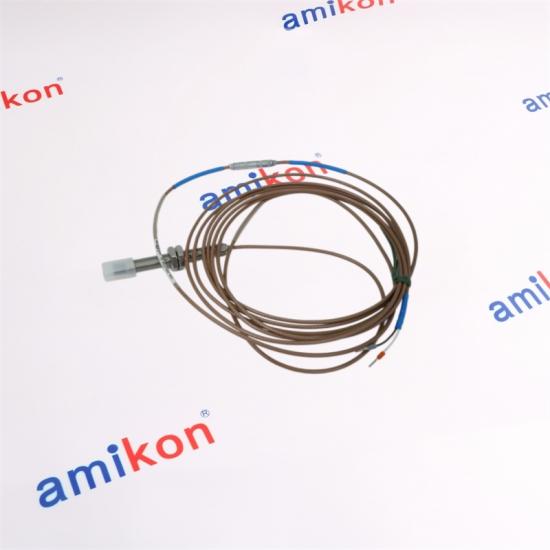

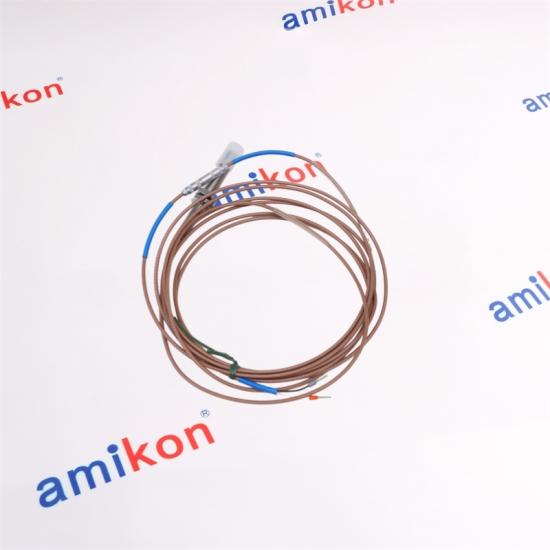

An 8 mm Emerson eddy-current sensor for non-contact measurement of shaft vibration, displacement, position, eccentricity and speed.
| 8 mm SENSOR |
|
2 mm LINEAR RANGE |
|
8 V/mm SCALE FACTOR |
|
IP66 PROTECTION |
|
SIGNAL PATH
Fourteen Checks in One Compact ChainRead from target geometry through sensor output and converter matching. Every stage affects the channel result. |
|
| Have the sensor code, converter code and gap voltage ready? | ASK MIYA TO VERIFY |
| PR6423/005-110 | 8 mm · 2 mm range · 8 V/mm | Selected compact sensor | 1 |
| PR6424 family | 16 mm · ±2 mm · 4 V/mm | Larger range and target | 2 |
| PR6426 family | 32 mm · ±4 mm · 2 V/mm | Large-shaft measurement | 3 |
| CON converter family | Oscillator and signal conversion | Must match the sensor chain | 4 |
Sensor diameter, target size, measurement range, sensitivity, cable length and converter calibration must be considered together.
|
20 Years of Experience
Support for current and difficult-to-source parts. |
Part Matching and Inspection
Complete codes and installed-system details support a clearer inquiry. |
|
|
Emergency Dispatch Coordination
Responsive communication when downtime is already costing time and money. |
◎
Need help finding the exact code?
Share the full part number and application details with our sales team. |
|
| Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the specific reason. Resolution follows receipt and inspection. | Return-related shipping costs are paid by the buyer. |
| 01 |
PR6423/005-110 — Can PR6423/005-110 replace any 8 mm PR6423 probe?
No. Match the complete suffix, thread and length arrangement, armor, cable length, cable end and converter calibration.
|
| 02 |
PR6423/005-110 — What shaft material is standard for PR6423/005-110 calibration?
The standard performance is stated against ferromagnetic 42CrMo4, also known as AISI/SAE 4140. Other target materials can change sensitivity and linearity.
|
| 03 |
PR6423/005-110 — Is PR6423/005-110 suitable for case-vibration measurement?
Its primary purpose is direct non-contact shaft displacement and motion. Sensor selection and mounting must follow the actual machinery protection strategy.
|
| 04 |
PR6423/005-110 — What installation faults most often affect PR6423/005-110 readings?
Incorrect gap, damaged tips, target runout, nearby metal, poor cable routing, connector contamination and an unmatched converter can all distort the result.
|
| 05 |
PR6423/005-110 — What should be recorded before replacing PR6423/005-110?
Record the full sensor and converter codes, gap voltage, mounting depth, channel scale, alarm settings, cable route and baseline machine readings.
|
