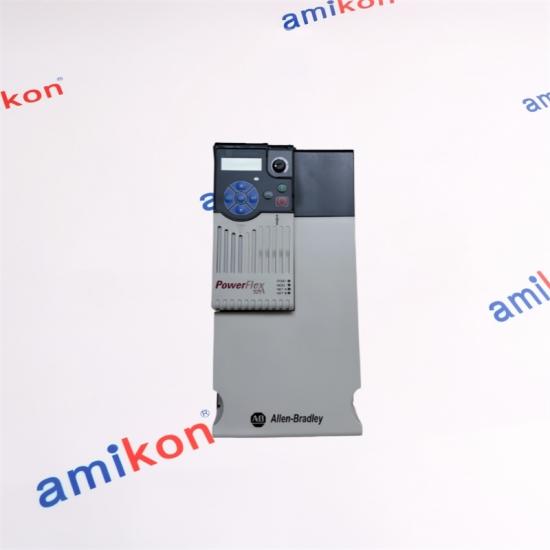

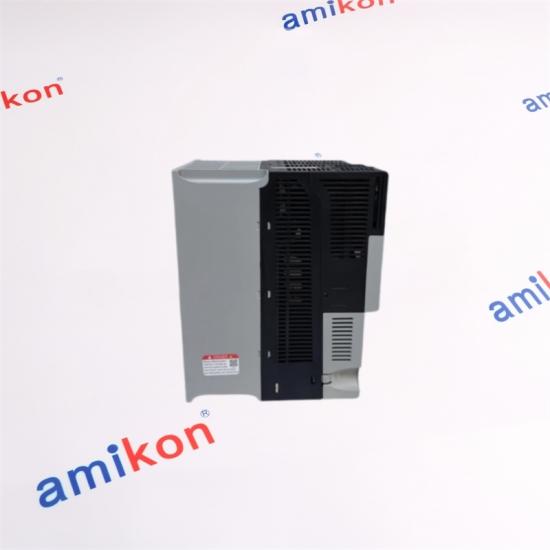

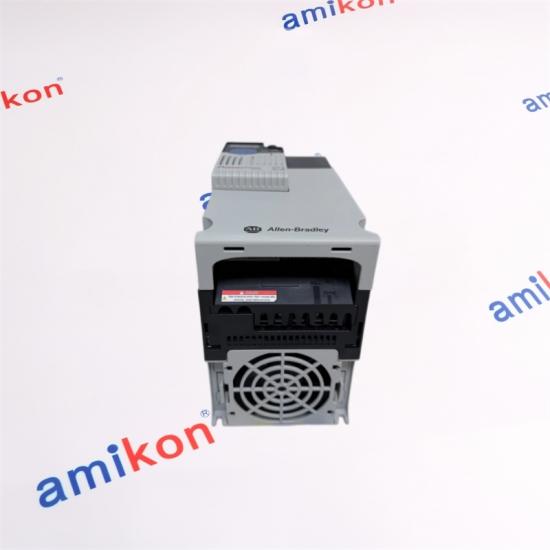

Allen Bradley 25B-D030N104 PowerFlex 525 AC drive

Allen Bradley 25B-D030N104
Allen Bradley 25B-D030N104
Allen Bradley 25B-D030N104

Allen Bradley 25B-D030N104 PowerFlex 525 AC drive

Calculate shipping
Quotation Request
ALLEN-BRADLEY
25B-D030N104

POWERFLEX 525
KEY PARAMETERS POWERFLEX 525
INPUT VOLTAGE
380–480V
AC • 3-Phase
OUTPUT CURRENT
30 A
Drive Output
NORMAL DUTY
20 Hp
15 kW

SALES MANAGER
Miya Zheng
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792
Allen-Bradley 25B-D030N104 Overview Specifications Applications FAQ Quote Delivery Contact
ALLEN-BRADLEY
525

PowerFlex 525
Adjustable Frequency AC Drive
FRAME
D
OUTPUT
30 A
POWERFLEX 525 AC DRIVE
25B-D030N104

15 kW / 20 Hp Normal Duty
A three-phase PowerFlex 525 AC drive designed for 380–480V applications, with a 30 A output rating and Frame D configuration.
INPUT
380–480V
AC / 3-Phase

NORMAL DUTY
20 Hp
15 kW

HEAVY DUTY
15 Hp
11 kW
Embedded EtherNet/IP   Integrated Safety   Brake IGBT Included
01 / PRODUCT OVERVIEW
A Higher-Power PowerFlex 525 Configuration
Drive Configuration
The 25B-D030N104 is a PowerFlex 525 adjustable frequency AC drive rated at 20 Hp / 15 kW for normal-duty operation and 15 Hp / 11 kW for heavy-duty operation. It uses a 380–480V AC three-phase supply and provides a 30 A output current rating.

CONFIGURATION HIGHLIGHTS
Embedded EtherNet/IP
Integrated Safety
Brake IGBT Included
Integral Keypad
Potentiometer & LED Display
02 / TECHNICAL SPECIFICATIONS
Electrical Ratings
Parameter 25B-D030N104
Product Family PowerFlex 525
Input Voltage 380–480V AC, 3-Phase
Input Voltage Range 323–528V AC
Output Voltage 0–460V, 3-Phase
Output Current 30 A
Normal-Duty Rating 20 Hp / 15 kW
Heavy-Duty Rating 15 Hp / 11 kW
Frame Size Frame D
Enclosure IP20 / NEMA Open Type
Filter No Filter
Frequency 50–60 Hz
Power Factor 0.98
Brake IGBT Included
Network Embedded EtherNet/IP
User Interface Integral Keypad with Potentiometer and LED Display
03 / DRIVE FEATURES
Designed Around Practical Control Needs
30 A Output Capability
The 30 A output rating corresponds to the 20 Hp / 15 kW normal-duty configuration and provides the electrical capacity expected from this Frame D drive.

Embedded Network
Embedded EtherNet/IP supports integration with compatible control architectures where drive communication is part of the machine or plant network.

Braking & Local Access
The configuration includes a Brake IGBT and an integral keypad, potentiometer and LED display for local drive interaction.
04 / APPLICATION CONTEXT
Where a Matching Drive Matters
Typical Machine Role
The 25B-D030N104 functions as the variable-speed motor-control element in a three-phase AC system. Its 20 Hp / 15 kW normal-duty rating makes it suitable for higher-power machine applications where controlled motor speed and acceleration are required.

Why This Exact Number Is Searched
When an installed drive fails, engineers often search by the complete catalog number because a replacement must align with the existing voltage class, output current, power rating, frame and network configuration rather than only the motor horsepower.

Failure & Downtime Exposure
A failed AC drive can prevent its connected motor from operating normally. In a production machine, that interruption may stop a process sequence, reduce equipment availability and extend recovery time while a compatible replacement is located and commissioned.

Replacement Matching Priorities
For a replacement purchase, confirm the installed catalog number, three-phase supply, output current, normal- or heavy-duty motor rating, Frame D configuration and communication requirements before ordering.
05 / PURCHASING FAQ
Five Questions Before Replacement
1. Why should the 25B-D030N104 be matched by catalog number instead of choosing another 20 Hp drive?
The catalog number represents a specific configuration: 380–480V AC, 30 A output, 20 Hp / 15 kW normal duty, 15 Hp / 11 kW heavy duty, Frame D, no filter, embedded EtherNet/IP and integrated safety. A similar horsepower rating alone does not establish an equivalent replacement.

2. What should be verified first if a failed 25B-D030N104 is holding up a production machine?
Verify the installed catalog number, three-phase supply, required output current, motor rating and the existing control-network arrangement. For an urgent replacement, the machine or system application should also be stated when requesting a quotation.

3. How does the normal-duty and heavy-duty rating affect selection of the 25B-D030N104?
The 25B-D030N104 is rated at 20 Hp / 15 kW for normal-duty operation and 15 Hp / 11 kW for heavy-duty operation. The correct rating should therefore be evaluated against the actual motor load profile rather than using the higher horsepower figure as a universal value.

4. Why is the embedded EtherNet/IP capability important when replacing an installed 25B-D030N104?
If the existing machine uses EtherNet/IP communication with the drive, retaining the same embedded network capability can reduce changes to the intended control architecture and simplify replacement planning.

5. What risk does an incorrect 25B-D030N104 replacement create during a shutdown?
A drive with a different voltage class, current rating, frame or communication arrangement may require additional engineering or commissioning work. During a production shutdown, that extra work can extend the time before the motor-control system returns to service.
06 / PURCHASING SUPPORT
Make the Quote Easier to Match
01
Part Number
02
Quantity
03
Destination
04
Required Date
05
Machine / System
For a quotation, please provide Part Number, Quantity, Destination, Required Date, and Machine/System. These details help align the requested unit with the intended application and delivery requirement.
