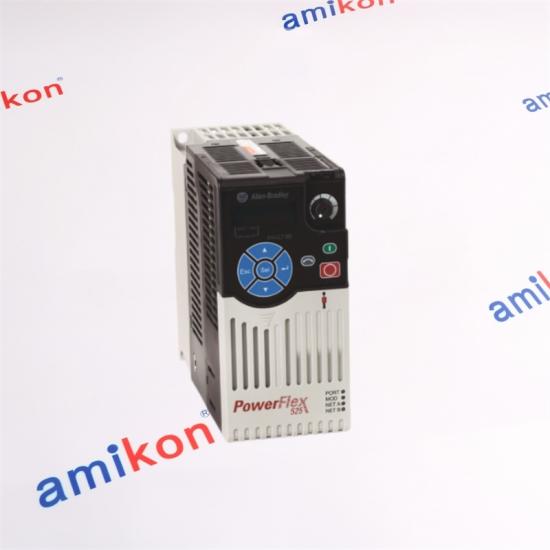

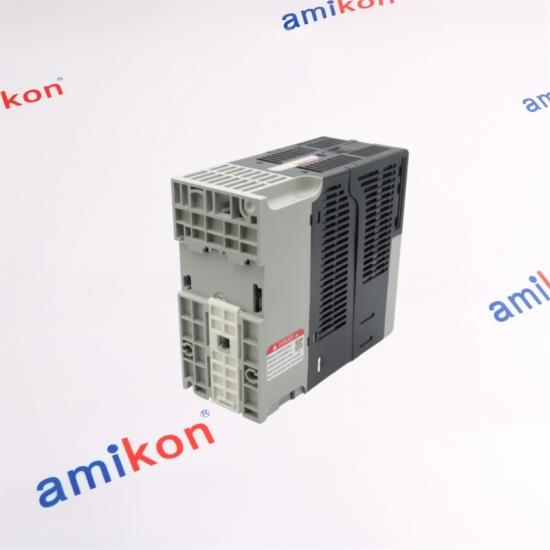

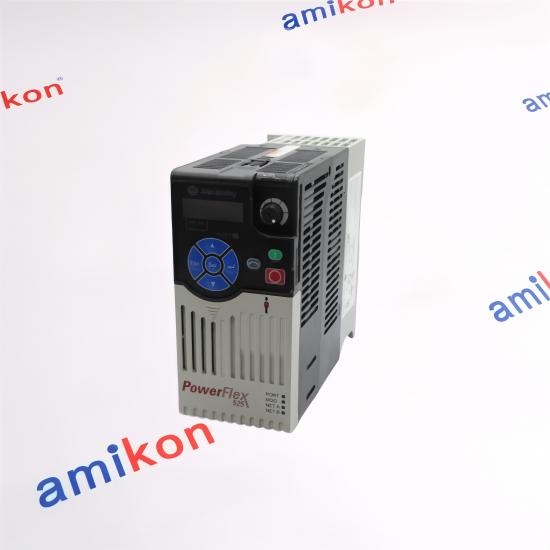

Allen Bradley 25B-B5P0N104 POWERFLEX 525 FREQUENCY AC DRIVE

Allen Bradley 25B-B5P0N104
Allen Bradley 25B-B5P0N104
Allen Bradley 25B-B5P0N104

Allen Bradley 25B-B5P0N104 POWERFLEX 525 FREQUENCY AC DRIVE

Calculate shipping
Quotation Request
ALLEN-BRADLEY
25B-B5P0N104
POWERFLEX 525
ADJUSTABLE FREQUENCY AC DRIVE
KEY PARAMETERS
25B-B5P0N104
INPUT VOLTAGE
200–240V
AC • 3 Phase
OUTPUT CURRENT
5.0 A
Rated Output
POWER RATING
1 Hp
0.75 kW
CONTACT
Miya Zheng
Sales Manager
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792

ALLEN-BRADLEY
25B-B5P0N104

PowerFlex 525
0.75 kW / 1 Hp AC Drive
FRAME
A
OUTPUT
5.0 A
POWERFLEX 525 ADJUSTABLE FREQUENCY AC DRIVE
25B-B5P0N104
200–240V AC • 3-Phase • 5.0 A
NORMAL DUTY
1 Hp
0.75 kW

HEAVY DUTY
1 Hp
0.75 kW

ENCLOSURE
IP20
NEMA / Open Type
Embedded EtherNet/IP   Integrated Safety   Brake IGBT Included
TECHNICAL PROFILE
Electrical & Drive Specifications

Product Family PowerFlex 525
Voltage Class 200–240V AC, 3-Phase
Output Current 5.0 A
Power Rating 1 Hp / 0.75 kW
Frame Size Frame A
Enclosure IP20 NEMA / Open Type
EMC Filtering No Filter
Brake IGBT Included
DESIGN HIGHLIGHTS
Compact Drive Architecture

Integrated Communications
Embedded EtherNet/IP supports network-connected drive applications within the PowerFlex 525 platform.
Safety Capability
The 25B-B5P0N104 incorporates safety functionality as part of the PowerFlex 525 architecture.
Integral User Interface
The drive provides an integral keypad with potentiometer and LED display for local interaction.
Power Braking
A brake IGBT is included, providing the hardware feature required for applications using dynamic braking arrangements.
WHERE THIS DRIVE MATTERS
When a Small Drive Stops a Larger Process

The 25B-B5P0N104 is a 200–240V, three-phase PowerFlex 525 drive rated at 5.0 A output. Its combination of network connectivity, safety capability and compact Frame A construction makes this rating relevant to smaller motor-driven sections of automated equipment.
Typical Machine Role
Used where a controlled-speed AC motor is part of a compact automated machine or process section and 200–240V three-phase supply is available.
Why Buyers Search This Exact Code
A failed drive, unstable motor control, loss of network communication or an unexpected drive trip can lead maintenance teams to search by the complete catalog number for a direct replacement.
Production Impact
Because a drive can control a motor that is integral to a machine sequence, an unavailable or malfunctioning unit may prevent the associated section from running. For maintenance teams, matching the correct voltage class, output rating and catalog number is therefore important when minimizing unplanned downtime.
PURCHASING FAQ
25B-B5P0N104 — Frequently Asked Questions

01   How can I determine whether 25B-B5P0N104 is the correct rating for my replacement requirement?
Check three critical points first: the available supply must match the 200–240V AC three-phase class, the required drive output must be within the 5.0 A rating, and the motor duty must correspond to the 1 Hp / 0.75 kW rating of this catalog number.
02   What should I verify when replacing an existing PowerFlex 525 with 25B-B5P0N104?
Besides the catalog number, verify the voltage class, phase arrangement, output-current requirement, frame size and enclosure configuration. The N104 configuration is a no-filter, IP20 NEMA/Open Type version with Frame A construction.
03   Why is the embedded EtherNet/IP capability important when this drive is replacing a failed unit?
If the existing machine communicates with its drive through EtherNet/IP, retaining a PowerFlex 525 configuration with embedded EtherNet/IP can avoid changing the drive-side communication architecture simply because the original drive has failed.
04   How does the included brake IGBT affect replacement selection?
The brake IGBT is part of the drive configuration. If the machine uses a dynamic braking arrangement, selecting a drive with the required braking hardware is important rather than substituting a unit solely because its basic horsepower rating appears similar.
05   What should I send when the machine is already down and I need this exact drive quickly?
Send the complete part number, required quantity, destination, required date and machine/system. If available, also provide the rating shown on the existing drive so the replacement can be checked against the 25B-B5P0N104 configuration before the order is finalized.
MAKE THE QUOTE EASIER TO MATCH
Five Details That Speed Up Matching

PART NUMBER
25B-B5P0N104


QUANTITY
Required Qty.


DESTINATION
Ship-To


REQUIRED DATE
Target Date


MACHINE / SYSTEM
Application

DELIVERY & COMMERCIAL TERMS
Order Details
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
PAYMENT
T/T
DELIVERY WAY E-packing / FedEx / EMS / TNT / DHL / UPS
AFTER-RECEIPT SUPPORT
Return & Replacement
01 / Seven-Day Notice
Please contact us within 7 days after receipt if a concern arises.
02 / Product Condition
Returned items should remain in original condition. Once received, a return or replacement can be arranged according to the case.
03 / Shipping Costs
Shipping expenses arising from the return are the responsibility of the buyer.
