Allen Bradley 1771-IBD Digital DC Input Module

Main Technical Highlights of the Allen-Bradley 1771-IBD

Introduction to the Product

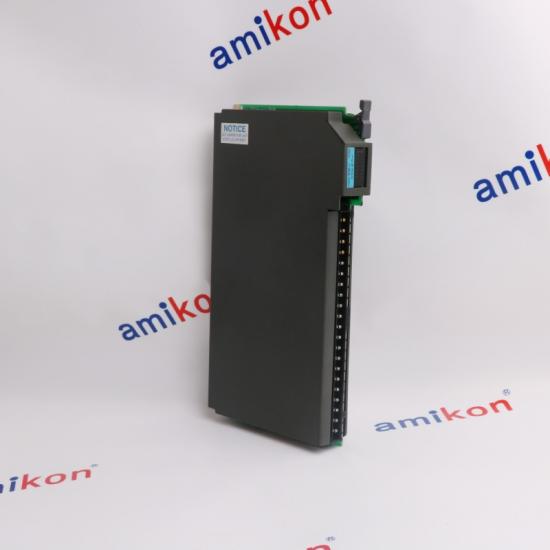

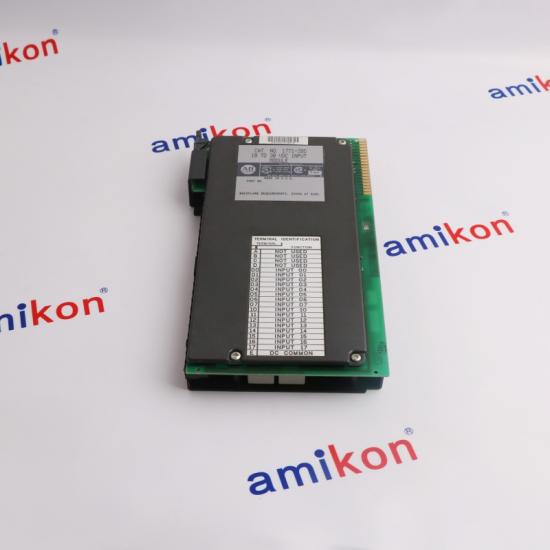

The Allen-Bradley 1771-IBD is a discrete input module belonging to the 1771 product family. This single-slot wide module provides 16 discrete input channels ranging from 10-30VDC. It can be mounted in any 1771 chassis, except for the 1771-A1, 1771-A2, and 1771-A4.

Discrete input modules like the 1771-IBD are typically used to connect field signaling devices such as switches, sensors, and auxiliary contacts representing process status. It is particularly suitable for ON/OFF, 1 or 0, or binary-operated devices.

The 1771-IBD features 18 LED status indicators providing information about the module status and the signal status of each input channel. It also includes a field terminal block, with a compatible replacement part number of 1771-WH. The field terminal block allows for modular wiring, as it can be removed from the module for signal termination. Furthermore, they facilitate simplified maintenance, as they can be removed and installed onto compatible modules without disconnecting the wires.

The minimum input current of the 1771-IBD is 4.5mA at 10VDC and 15mA at 30VDC; the minimum shutdown current is 2.0mA at 5VDC. Its input signal delay is 1ms for low-to-high signal transition and 1ms or 6ms for high-to-low signal transition. Its rated power dissipation is 7.3 watts (maximum) and 1.0 watt (minimum); its heat dissipation is 24.7 BTU/hour (maximum) and 3.4 BTU/hour (minimum).

We always focus on top brand products, innovation of top industrial partners and delivery of new components in the field of industrial automation.

If you wish to proceed or learn more, kindly reach out via the contact options below:

Miya Email: sales@amikon.cn 

Miya Whatsapp/phone: +86 18020776792

Technical Information FAQ

Question1.What are the key features of the Allen-Bradley 1771-IBD in industrial automation architectures?

Answer: The Allen-Bradley 1771-IBD is a high-performance DC digital input module designed for the PLC-5 platform, reliably connecting field input devices to control systems. It provides precise signal acquisition capabilities, ensuring stable and deterministic input processing in harsh industrial environments.

Question2.What input voltage characteristics does the Allen-Bradley 1771-IBD support? How do these characteristics affect system compatibility?

Answer: The Allen-Bradley 1771-IBD is designed for 10–30V DC input signals, making it highly compatible with a wide range of industrial sensors, switches, and field devices. This voltage flexibility enhances its adaptability in various automation systems.

Question3.How does the Allen-Bradley 1771-IBD streamline rapid diagnostics and maintenance processes?

Answer: The Allen-Bradley 1771-IBD is equipped with LED status indicators for each input channel, enabling real-time monitoring and rapid fault detection. This feature significantly reduces troubleshooting time and improves uptime.

Question4.What installation considerations are critical when deploying the Allen-Bradley 1771-IBD in a PLC-5 chassis?

Answer: When integrating the Allen-Bradley 1771-IBD, it is essential to ensure correct slot placement, good backplane compatibility, and secure wiring. Adequate grounding and adherence to environmental specifications further guarantee optimal module performance.

Question5.Which types of industrial applications best leverage the Allen-Bradley 1771-IBD?

Answer: The Allen-Bradley 1771-IBD is ideal for applications such as manufacturing automation, process control systems, material handling, and safety interlocks—where accurate digital input monitoring is crucial.
