Allen Bradley 1746SC-CTR4 Counter Input Module

Core Communication Capabilities of the Allen-Bradley

Who are we?

We are AMIKON LIMITED.

We hope to go beyond the usual ways to meet your needs, focusing on economic and efficient collaboration.

We are committed to building long-term partnerships to identify your common opportunities for cost savings.

We are happy to translate these opportunities into working methods and services that ensure the best efficiency of partnerships.

Whether offering advice on product selection or comparing alternatives, we are willing to share knowledge and experience.

1746SC-CTR4

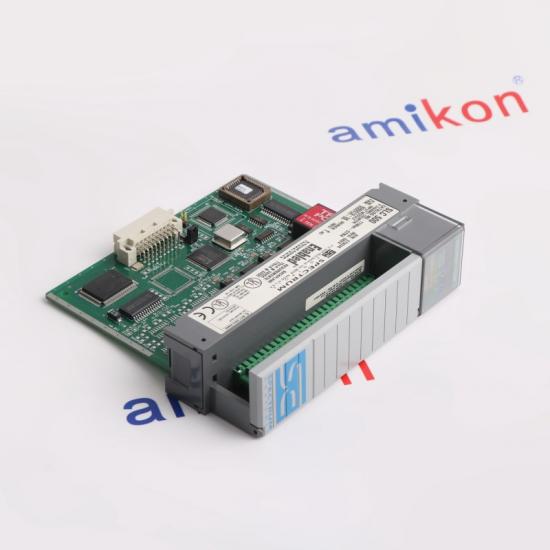

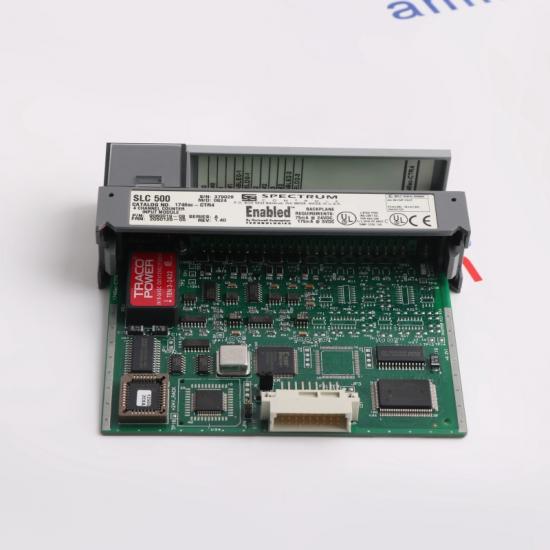

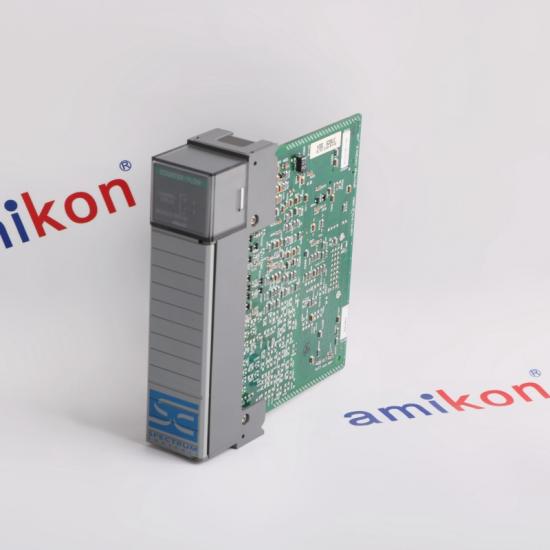

The 1746sc-CTR4 is a flow meter/counter module from Spectrum Controls. It is compatible with Allen-Bradley's Smart Logic Controller (SLC) platform. The module accommodates four (4) quadrature encoder inputs and four (4) external counter enable inputs, accepting input voltage signals from 50mV to 75VAC peak, 5Vdc, 12Vdc, and 24Vdc, and a maximum AC input frequency of 50kHz and a maximum DC input frequency of 50kHz. The 1746sc-CTR4 features configurable input filters, such as digital filters at 50kHz and 30kHz, and an analog filter at 15kHz. The module's counting mode accuracy is +/- 1 count. The module has an instantaneous rate accuracy of +/- 1% (50 kHz) and 0.001% (1 Hz), and an average rate accuracy of -f (1 kHz). Its maximum counting range is: low range -32,768 to +32,767, high range -8,388,608 to +8,388,607. The module has built-in fault detection functions, such as over-range and under-range status bits in all operating modes.

To terminate the input signal, the module is equipped with a 24-pin detachable connector, with each terminal capable of connecting a 12 AWG to 28 AWG wire. The Spectrum Controls 1746sc-CTR4 is one of the best quadrature encoder counter modules on the market. This 4-channel counter/flowmeter module features four external counters supporting command inputs. The 1746sc-CTR4 enables automation of factory filling stations. Alarm and zero flags can be programmed to be set as needed. It also supports K, M, and R coefficient adjustments, which can be expanded through programming.

Technical Troubleshooting FAQ

Question1. What makes the Allen-Bradley 1746SC-CTR4 unique in high-speed industrial counting applications?

Answer: The Allen-Bradley 1746SC-CTR4 is a high-performance four-channel counting module designed for precision pulse counting and frequency measurement in harsh automated environments. It processes high-speed input signals with extremely low latency, making it ideal for encoder feedback, flow metering, and production line monitoring.

Question2. How can the Allen-Bradley 1746SC-CTR4 be configured to adapt to different counting modes?

Answer: The Allen-Bradley 1746SC-CTR4 supports multiple configurable modes, including positive/negative counting, quadrature encoding, and pulse/direction counting. This versatility allows engineers to customize the module's functionality for various motion control and process automation scenarios.

Question3. How does the Allen-Bradley 1746SC-CTR4 improve real-time data acquisition and control response speed?

Answer: The Allen-Bradley 1746SC-CTR4 provides high-speed counting and instant data updates, enabling real-time monitoring and rapid decision-making. This responsiveness is crucial for applications requiring precise synchronization and dynamic control adjustments.

Question4. Which types of industrial applications benefit most from deploying the Allen-Bradley 1746SC-CTR4?

Answer: The Allen-Bradley 1746SC-CTR4 is ideal for applications such as packaging machinery, conveyor systems, turbine monitoring, and automated inspection systems, where accurate pulse tracking and high-frequency event detection are critical.

Question5.How can buyers obtain genuine Allen-Bradley 1746SC-CTR4 modules with guaranteed quality and comprehensive support?

Answer: For customers seeking genuine Allen-Bradley 1746SC-CTR4 modules, consider partnering with AMIKON LIMITED. AMIKON LIMITED is a trusted global supplier renowned for providing high-quality industrial automation components, competitive pricing, and expert technical support.
