Allen Bradley 1794-OB16P Flex I/O Digital DC Output Module

Critical Interface and Control Capabilities of the Allen-Bradley 1794-OB16P

1794-OB16P

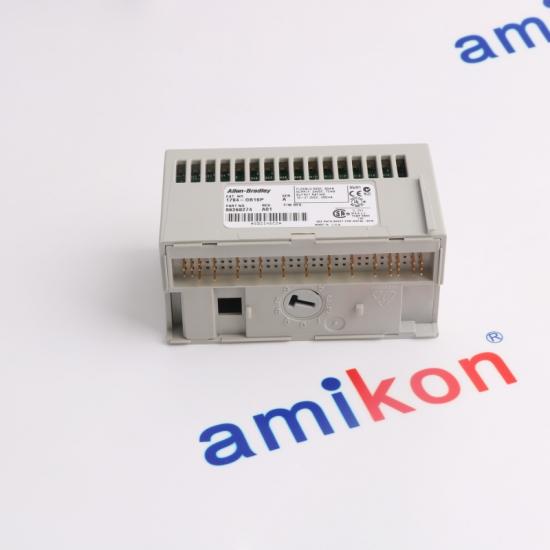

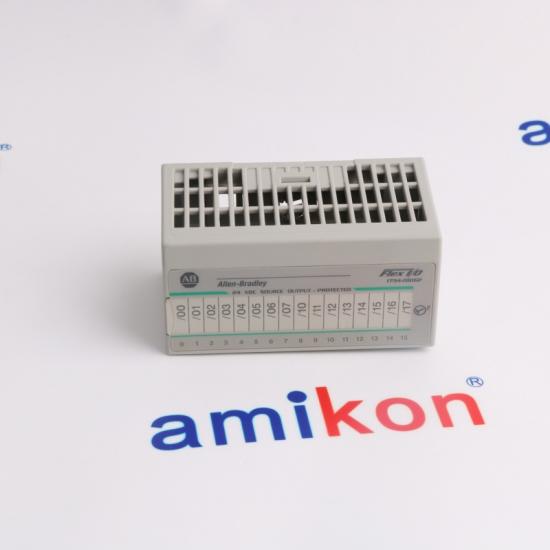

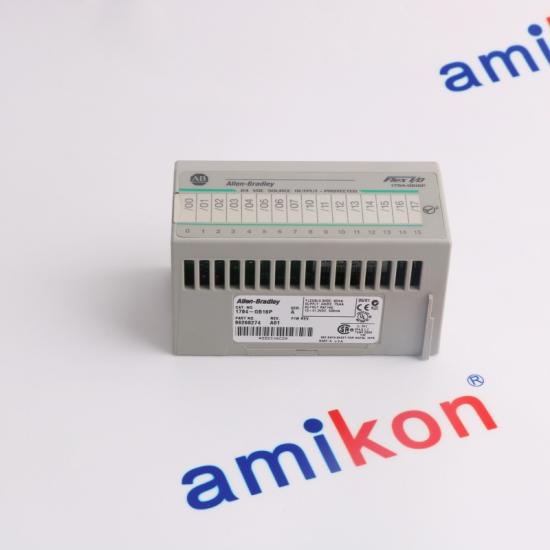

The Allen-Bradley 1794-OB16P is a Flex I/O module used as a discrete output module. This module powers electrical components operating at 24VDC, such as indicator lights, solenoid valve actuators, relay coils, and other field instruments. The 1794-OB16P features 16 electronically fused output channels, supporting various wiring configurations. Each channel has a minimum output current of 1.0 mA and a maximum output current of 500 mA. Each channel can withstand a 2 A inrush current for 50 ms, repeating every 2 seconds.

The 1794-OB16P's internal circuitry is powered via the Flex I/O bus. The module requires 60 mA of FlexBus current at 5V DC, has a maximum power consumption of 5.0 W at 31.2V DC, and a heat dissipation of 17.0 BTU/hr at 31.2V DC. Each channel is equipped with an electronic fuse. This module requires a terminal block for installation. The terminal block provides DIN rail mounting and I/O termination points. Compatible terminal block models are 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, and 1794-TB3SK.

To explore this further, please reach out through the contact methods provided below:

Miya Email: sales@amikon.cn 

Miya Whatsapp/phone: +86 18020776792

Technical Assistance Guide

Question1Why is the 1794-OB16P considered suitable for high-density output applications?

The 1794-OB16P module provides 16 independent outputs in a compact module, significantly improving control panel space utilization. Its high channel density reduces cabling complexity and installation costs, making it ideal for applications requiring extensive actuator control within limited cabinet space.

Question2How does the 1794-OB16P facilitate seamless communication within automation networks?

The 1794-OB16P operates as part of the FLEX I/O platform and communicates via compatible network adapters, enabling integration with mainstream industrial protocols. This ensures real-time data exchange and deterministic control within PLC-based automation systems.

Question3How does the 1794-OB16P improve system diagnostics and maintenance efficiency?

The 1794-OB16P is equipped with status indicators for each output channel, enabling technicians to quickly identify faults, monitor operational status, and perform predictive maintenance. This significantly reduces downtime and accelerates the troubleshooting process.

Question4How does the 1794-OB16P enhance the system scalability and flexibility of modern automation solutions?

The modular nature of the 1794-OB16P allows for easy expansion into FLEX I/O systems. Users can add or replace modules without major system redesign, enabling flexible expansion and rapid adaptation to changing operational needs.

Question5How does the 1794-OB16P comply with modern industrial automation standards and best practices?

The 1794-OB16P complies with established industrial automation standards, ensuring interoperability, safety, and performance consistency. Its design supports best practices in modular automation, thereby reducing engineering complexity and lifecycle costs.
