BULLETIN 160 / VARIABLE SPEED CONTROL
160-BA01NSF1
Analog Signal Follower

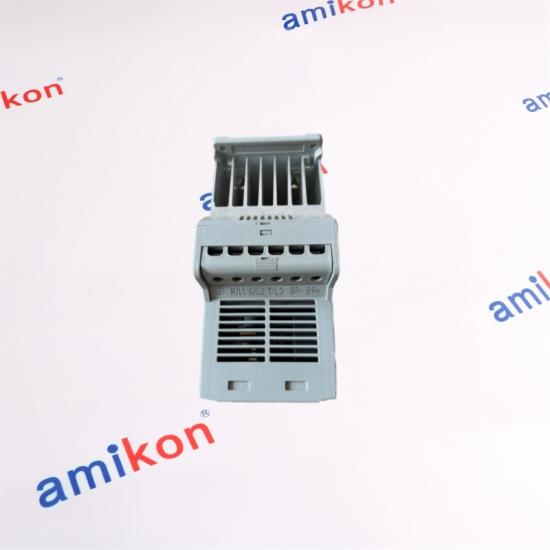

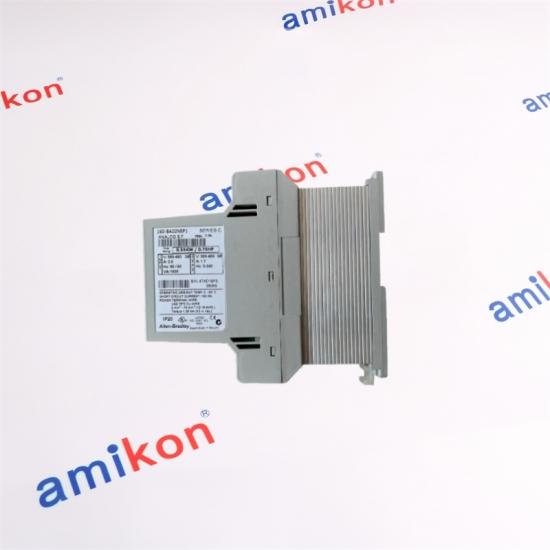

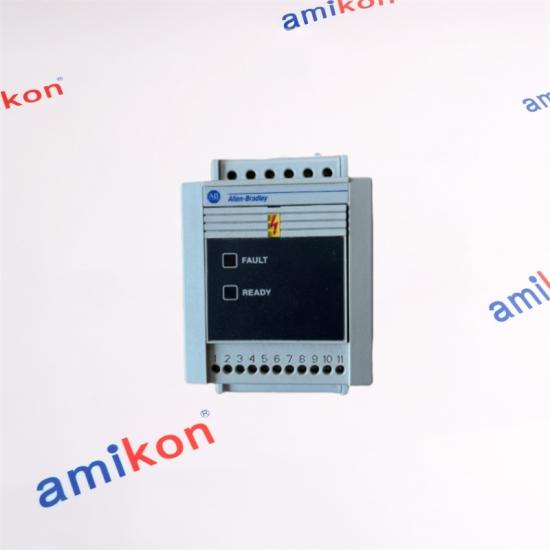

Variable Speed Controller The Allen-Bradley Bulletin 160 SSC 160-BA01NSF1 is an open-style variable speed controller designed for three-phase motor applications in the 380–460 V range. Its Analog Signal Follower configuration allows the commanded output frequency to be controlled from an external analog reference.
|
CONTROL MODE
SF1 — Analog Signal Follower
ENGINEERING FOCUS
INDUSTRIAL DRIVE / 160 SSC
|
|
01 / PRODUCT PROFILE
Engineered for Analog Speed Reference
The 160-BA01NSF1 belongs to the Allen-Bradley Bulletin 160 SSC family. The BA01 rating is intended for 380–460 V three-phase input and a 0.37 kW (0.5 HP) motor rating, with a maximum rated output current of 1.2 A. The SF1 configuration is the Analog Signal Follower version. The output frequency can be commanded through the control terminal block using a remote potentiometer, a ±10 V DC analog input, or a 4–20 mA analog input. One frequency source should be selected for the active reference.
|
WHY THIS VERSION?
160-BA01NSF1
|
|
02 / TECHNICAL CORE
Specification
Matrix The selected values below correspond to the BA01 configuration of the Bulletin 160 SSC family. |
|
|
03 / SERIES POSITION
Bulletin 160 SSC Family
The Bulletin 160 family covers compact variable speed controllers with different input ratings, current ratings, enclosure configurations and control modes. BA01 POSITION
380–460 V three-phase input
0.37 kW / 0.5 HP 1.2 A output rating |
APPLICATION LOGIC
REPLACEMENT / MAINTENANCE VIEW
For replacement work, verify the input voltage, phase arrangement, motor rating, current rating, enclosure configuration and SF1 control mode before selecting an equivalent unit.
|
|
READY TO SOURCE
160-BA01NSF1
Send the exact part number and application details for a fast quotation.
|
|
| QUOTE CHECK | Part Number | Quantity | Destination | Required Date | Machine/System |
| Q |
Can 160-BA01NSF1 replace another Bulletin 160 drive without changing the control philosophy?
It can be considered when the existing application requires the same 380–460 V three-phase class, 0.5 HP / 1.2 A rating and Analog Signal Follower configuration. Voltage, motor rating, wiring and control settings should be checked before replacement.
|
| Q |
What should buyers verify before ordering 160-BA01NSF1 for an existing machine?
Confirm the three-phase 380–460 V supply, 0.37 kW / 0.5 HP motor rating, 1.2 A output class, IP20 open construction and SF1 analog-control requirement. The machine's terminal wiring and control reference should also be checked.
|
| Q |
Why would 160-BA01NSF1 be preferred when the machine uses a 4–20 mA speed reference?
The SF1 control arrangement supports a 4–20 mA analog reference through TB3, with a specified 250-ohm input impedance. This makes the configuration suitable where the existing control architecture already uses current-loop speed commands.
|
| Q |
How should 160-BA01NSF1 be evaluated when the replacement unit must fit an existing control cabinet?
Check the open-style IP20 construction, mounting arrangement, terminal access and available cabinet clearance. The Bulletin 160 BA01 dimensions are approximately 152 mm high, 72 mm wide and 136 mm deep.
|
| Q |
What makes 160-BA01NSF1 a practical choice for maintenance replacement?
Its selection is straightforward when the original system already matches the BA01 electrical class and SF1 analog-control architecture. Matching the catalog number structure reduces the risk of selecting a unit with a different input class, control mode or enclosure configuration.
|
|
